TW 36-150 Image go back
Conveying

TW 36-150

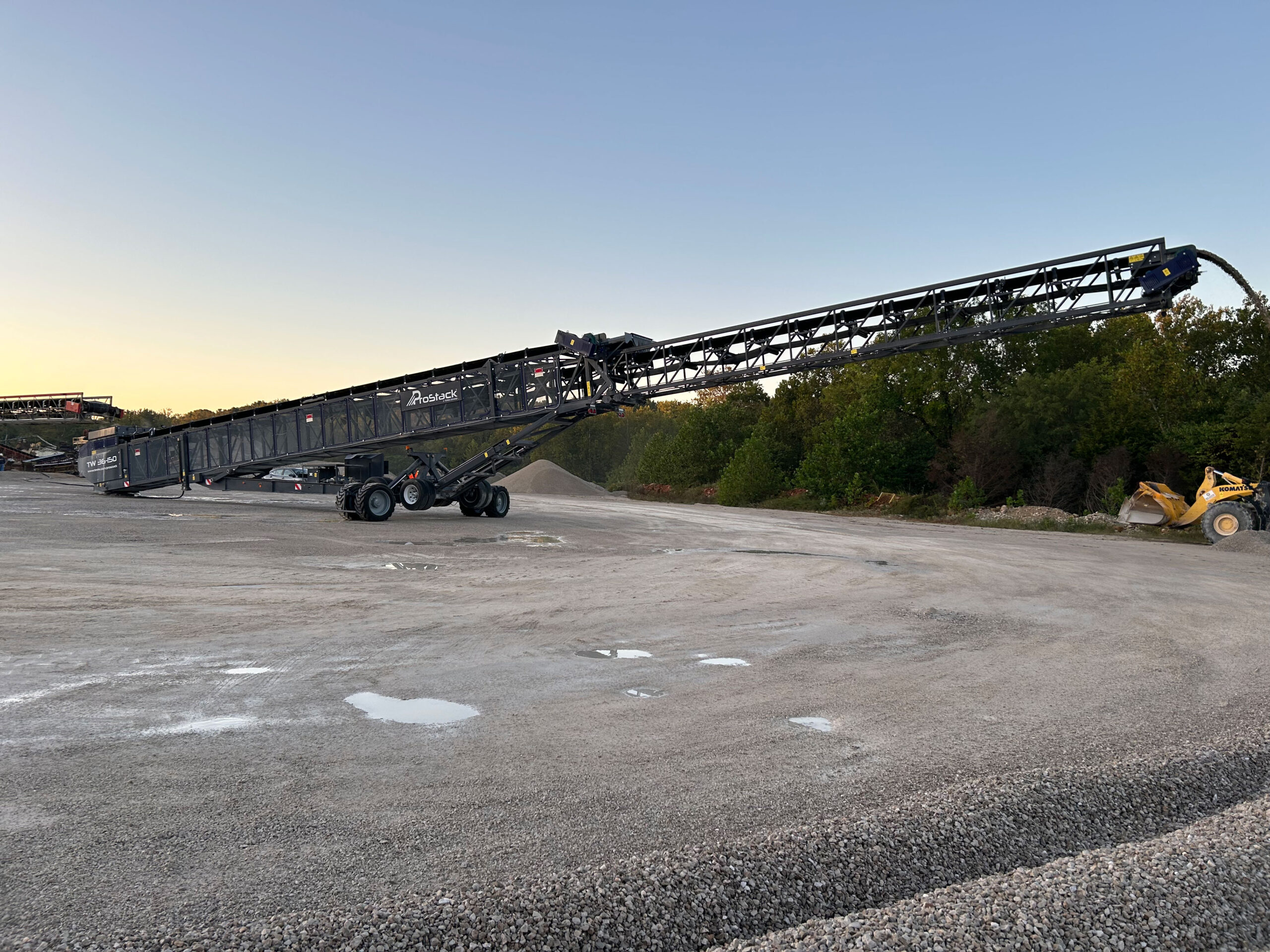

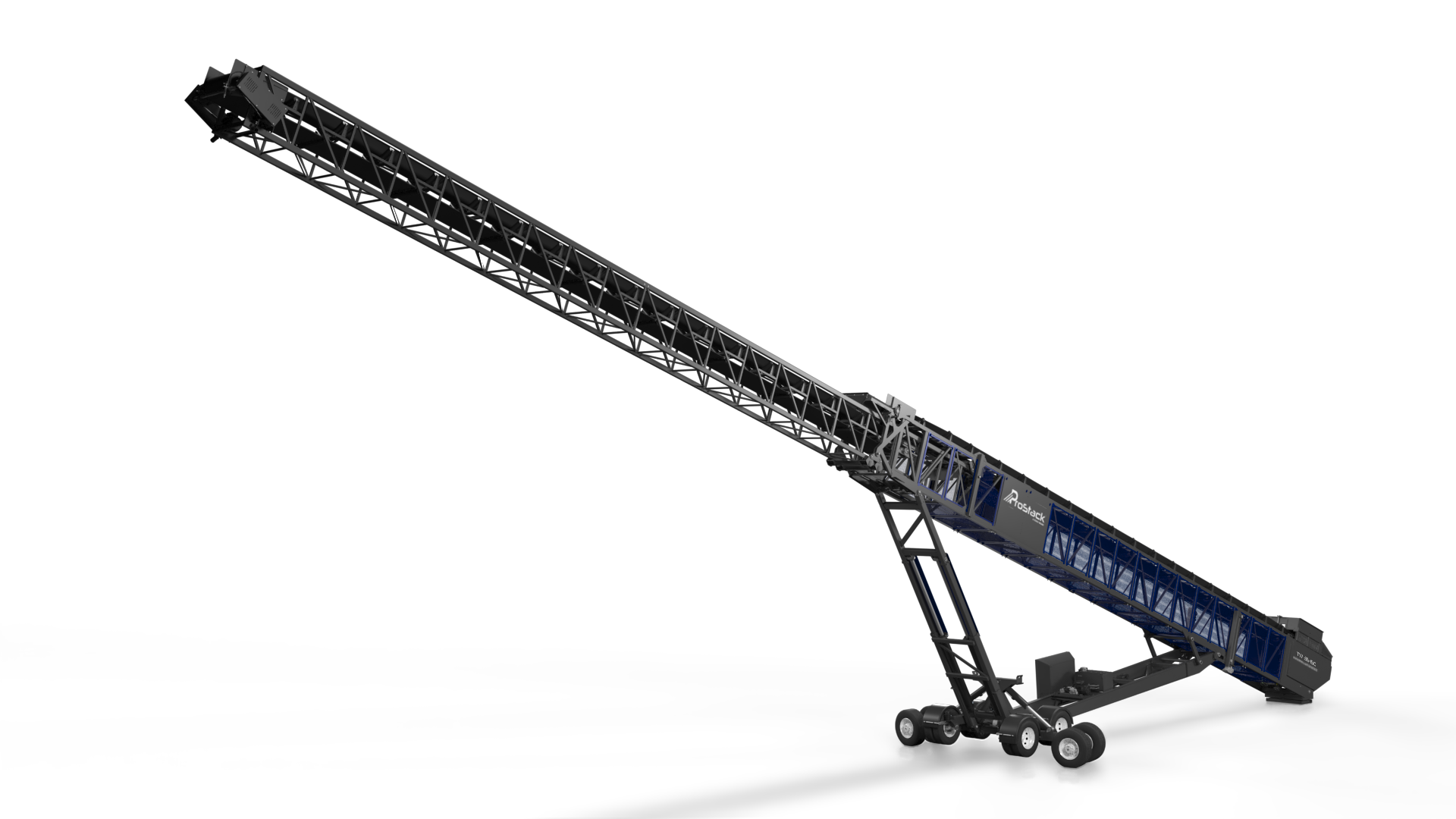

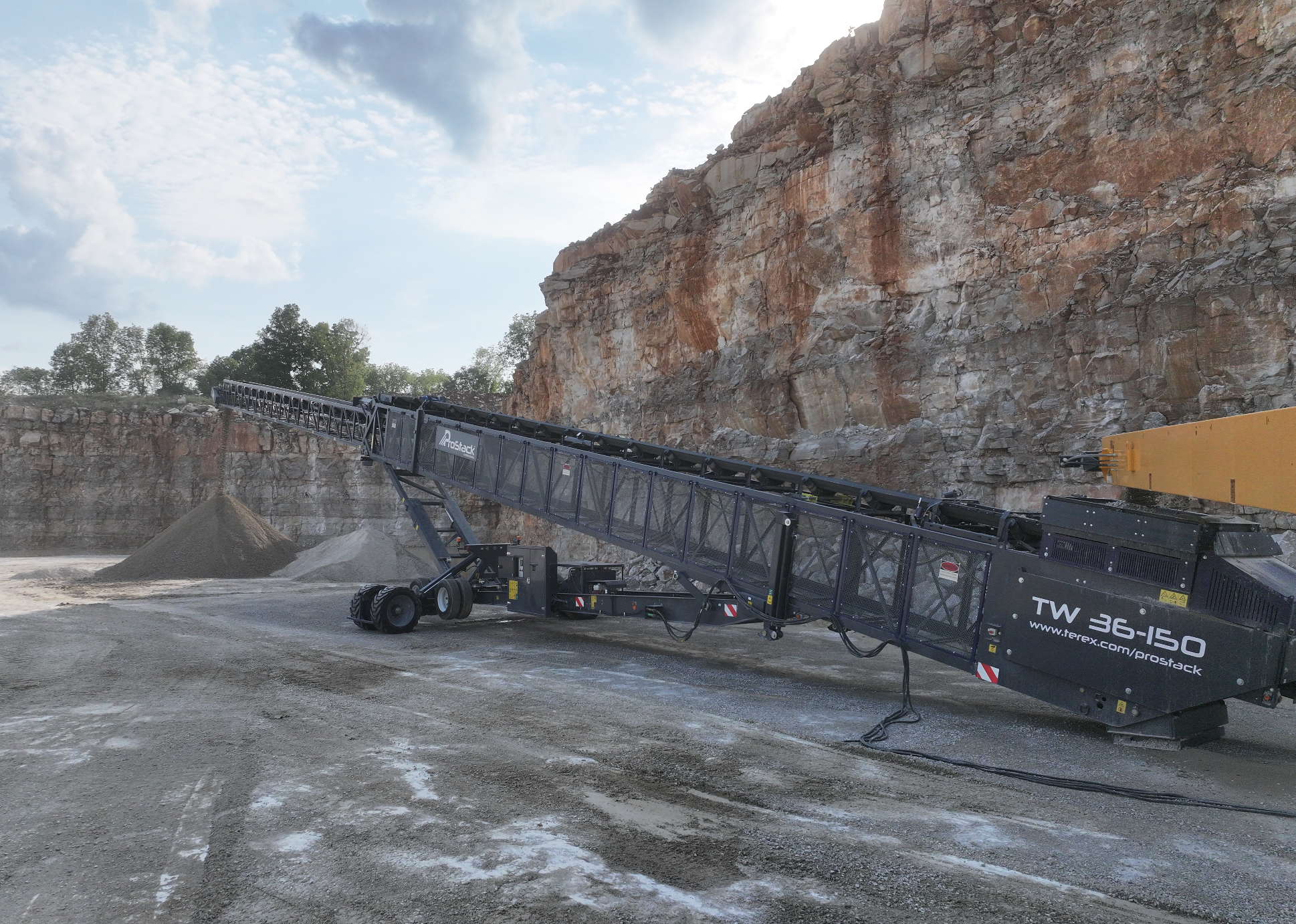

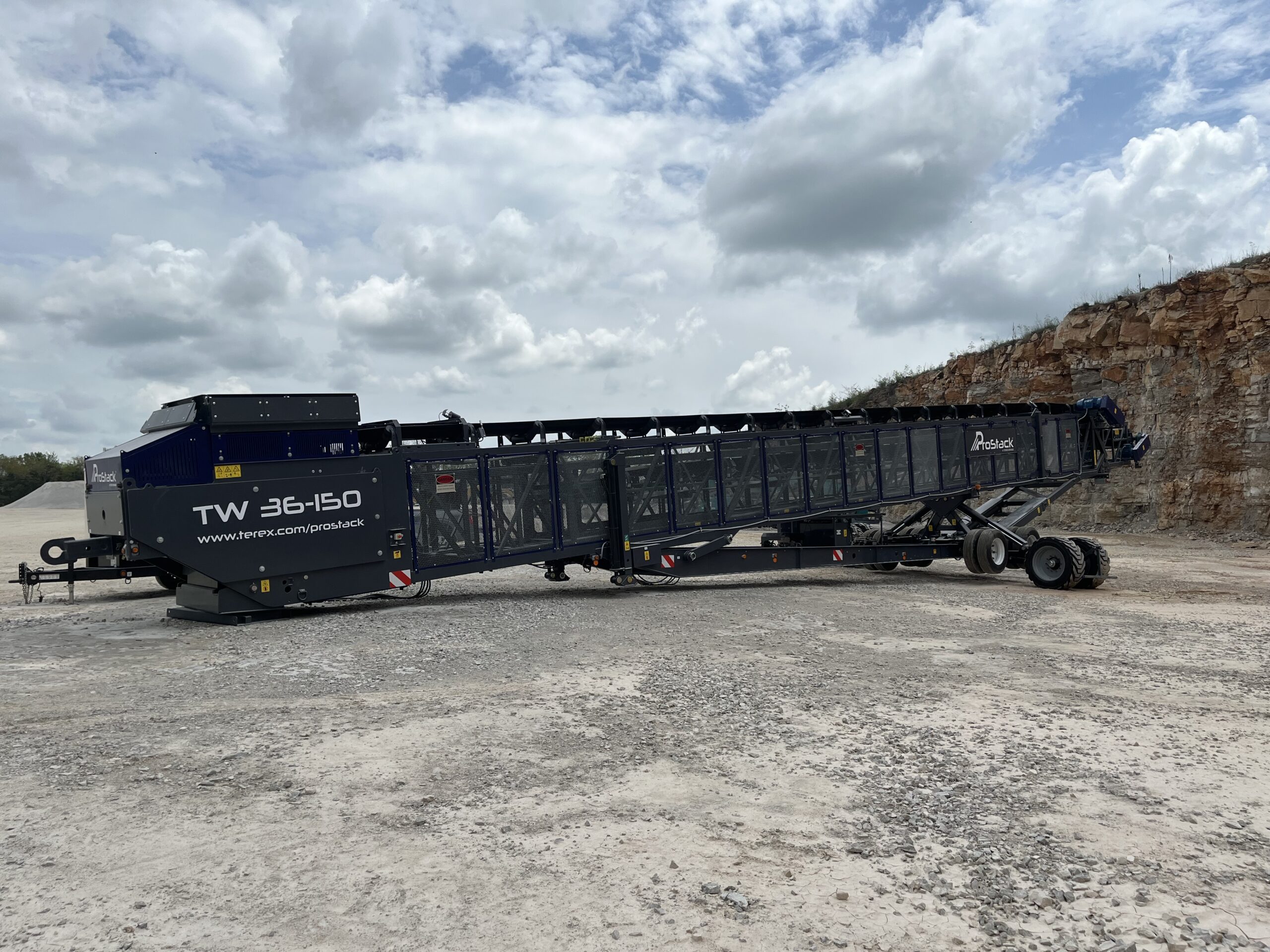

ProStack’s TW 36-150 Radial Telescopic Conveyor features a working length of 150’ (46m) and is capable of 270° of radial movement with 800tph as standard. Through close collaboration between the customer and ProStack’s engineering team, the TW 36-150 can be tailored to meet the specifications of multiple applications and has been specifically designed for the North American market. The TW 36-150 has a transport length of 89’ 5” (27.26m), is road towable and can be deployed without the use of tools.

download brochure
Inquire Call us
TW 36-150
TW 36-150
TW 36-150
TW 36-150
TW 36-150
TW 36-150
TW 36-150
TW 36-150
TW 36-150
TW 36-150
Features & Benefits Options Specifications
  • Road Trasportable – Machine fully Assembled in USA
  • Emergency Stops x5
  • Twin Radial Wheel Drive
  • Underguard Length Of Outer Section
  • Outer Conveyor side guards
  • Lorry mount Kit – CW 5.5HP deployment engine, Hydraulic jacking legs, Hyd kingpin swivel
  • Hydraulic Raise /lower Raidal powered by 11kw Electric motor
  • Conveyor head drum bearing automatic greasing cartridge
  • Hydraulic Winch for telescopic action
  • Hydraulic Tank Capacity 265 L
  • Upgrade to 1000TPH
  • Pull Cord Emergency Stop
  • Feedboot Liners: 6mm Mild Steel
  • Feedboot Liners: 6mm Wear Plate (AR400)
  • Feedboot Liners: 12mm Wear Plate (AR400)
  • Feedboot Liners: 20mm rubber
  • Conveyor Fitted With Chevron Belt EP315/3 Ply x 3+1.5 Covers
  • Conveyor Fitted With Heavy Duty Plain Belt EP500/4 Ply x 8+2 Covers
  • Working Lights
  • Belt Weigher
  • Radio Remote
  • Low level Grease points for Inner Conveyor and Outer conveyor
  • Self Aligning Rollers
  • Stockpile height of over 48’ 10” (14.9m)
  • Maximum stockpile capacity of approximately 102,696 yd³ (78,517m³)
  • Transport Weight: 64310 lbs
  • Conveyor Fully Extended: 149 ft 8 in
  • Feedboot Capacity: 1.40 m³
  • Belt Width: 36 Inches
  • Maximum Stockpile Height at 18°: 48 ft 10 in
  • Transport Length: 90 ft 6 in
