Screening

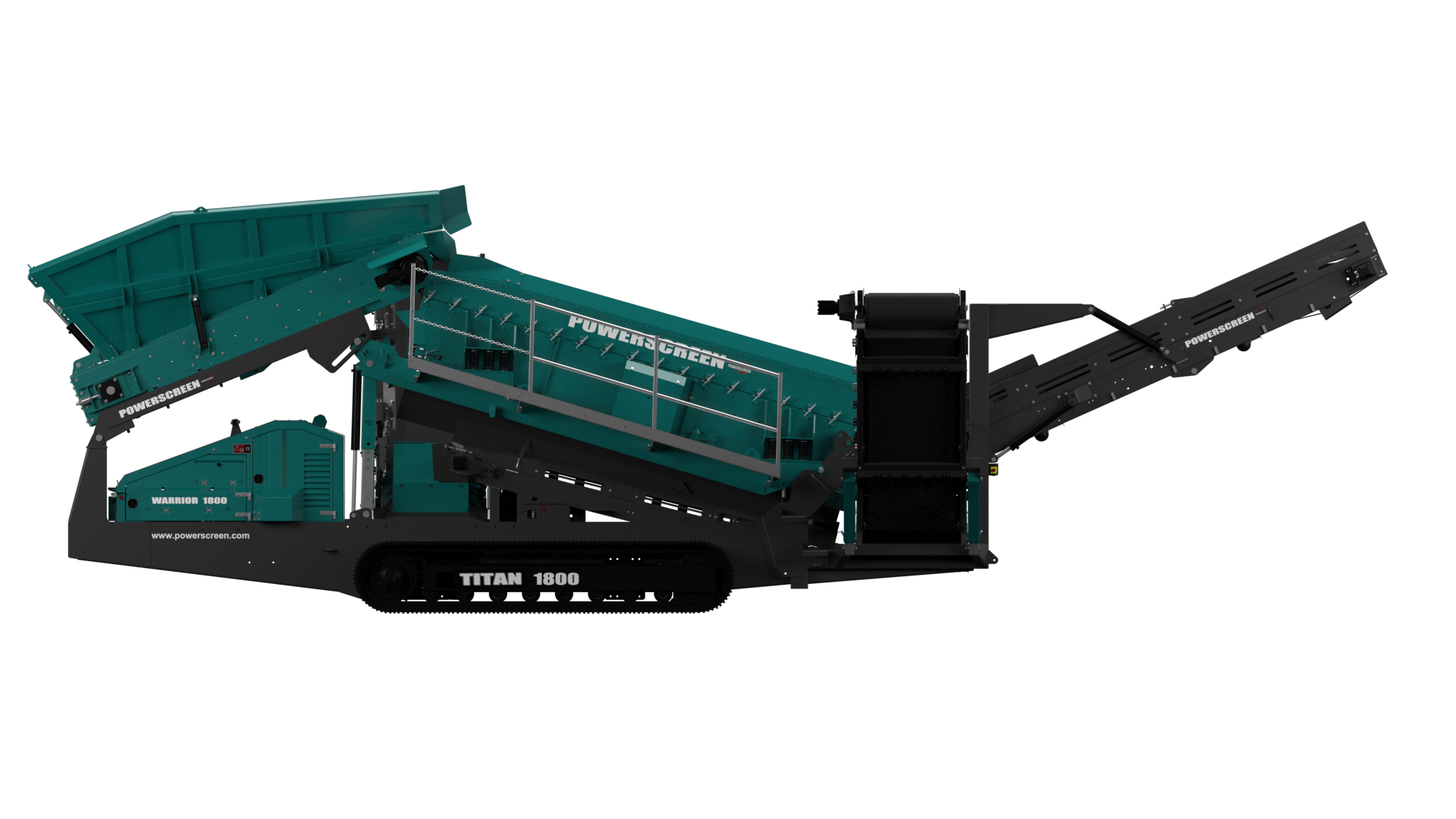

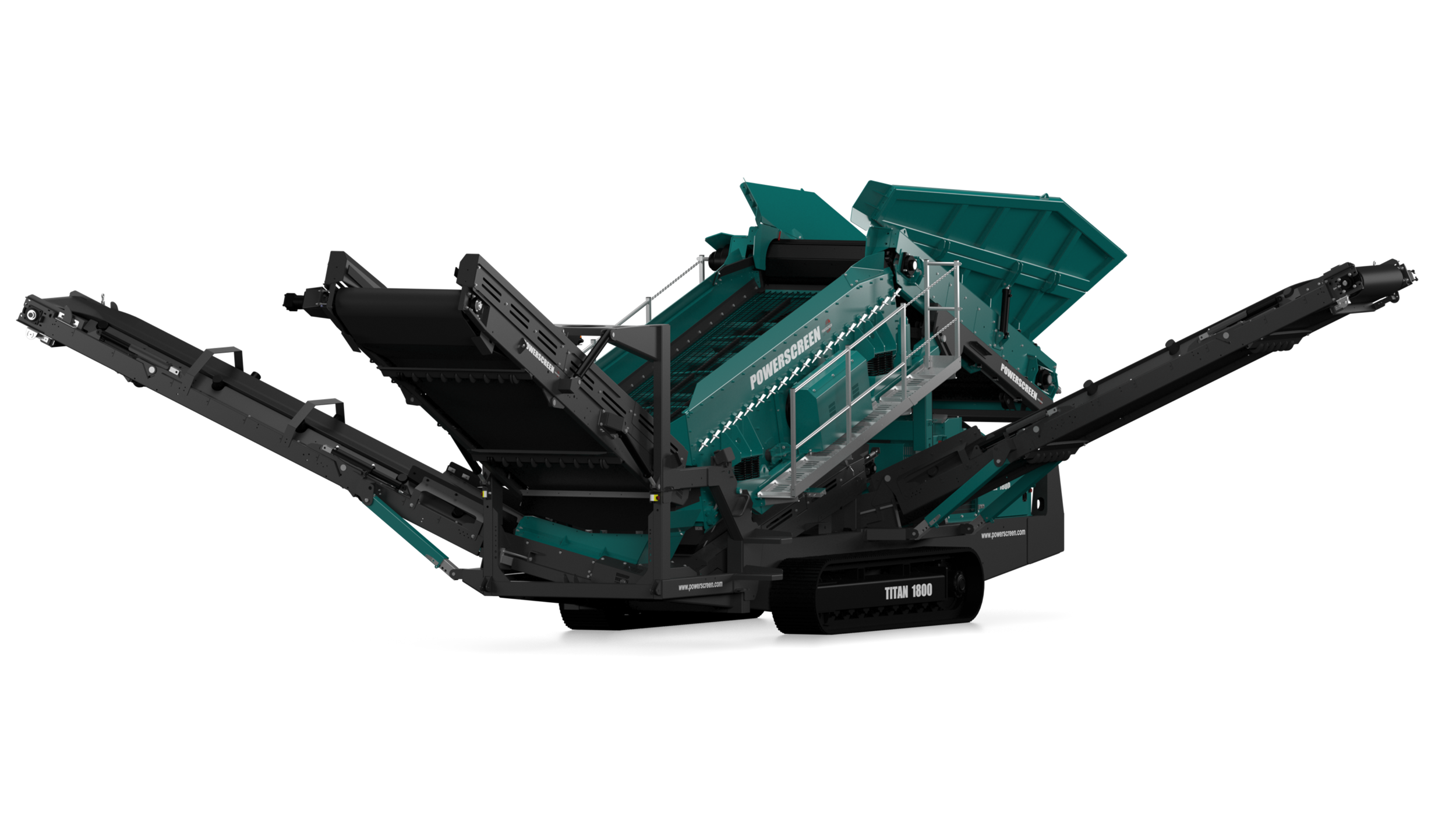

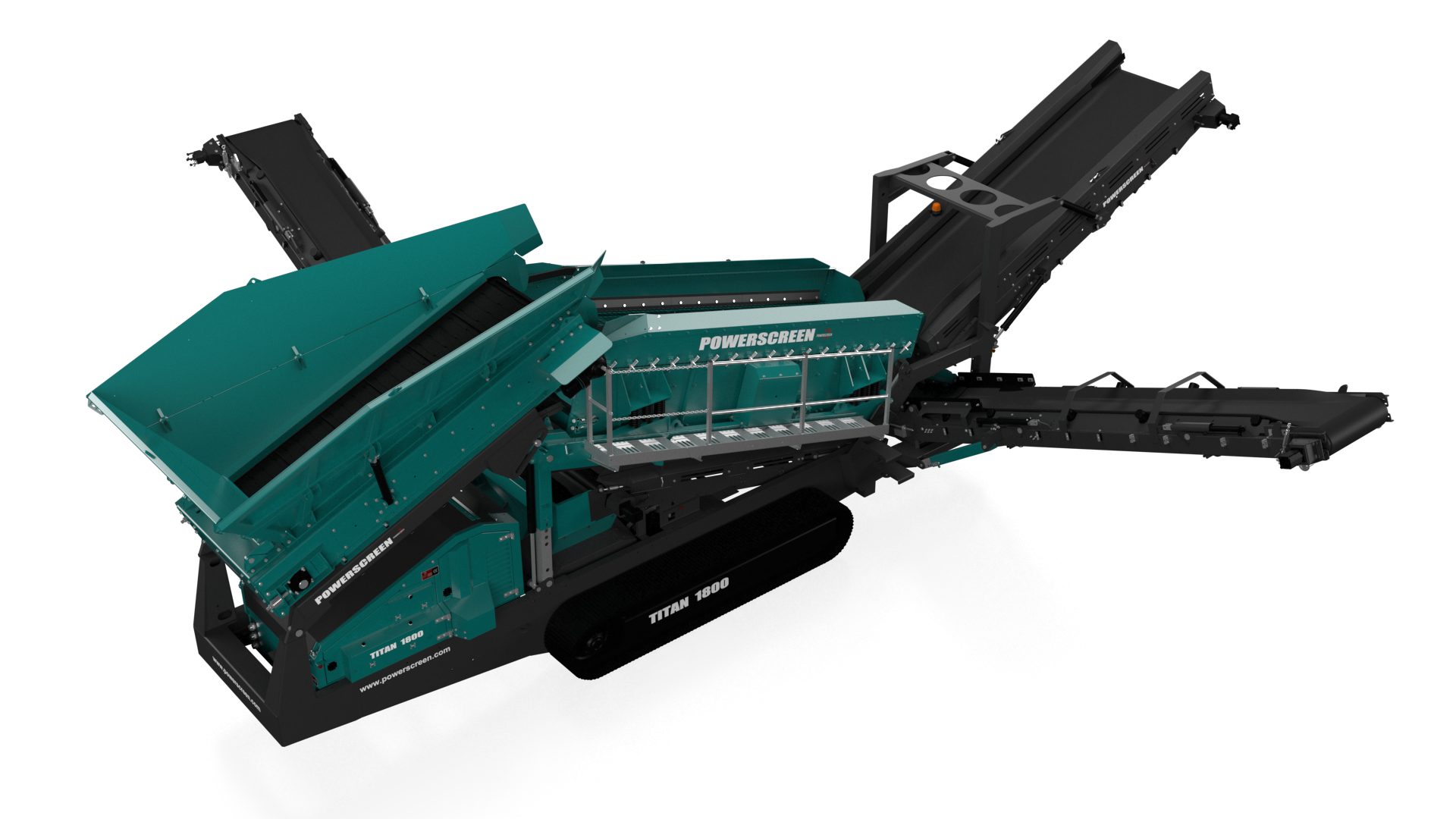

Titan 1800

The Titan 1800 is a highly adaptable two deck secondary scalping screen which can operate in both scalping and precision screening applications and will excel in even the most difficult of materials.

This versatile screen accepts a wide range of media options including bofor bars, finger screens, woven mesh and punch plates.

download brochure
Inquire Call us
Titan 1800
Titan 1800
Titan 1800
Titan 1800
Titan 1800
Titan 1800
Titan 1800
Titan 1800
Features & Benefits Options Specifications
  • High capacity up to 600 tph / 661 US tph (depending on media sizes & material type)
  • Maximum feed size 600mm (2’) . Maximum allowable feed size may vary depending on material type and screenbox media
  • Suitable for scalping or stockpiling as a 3 way split or 2 way split machine
  • Heavy duty inclined hopper & belt feeder featuring impact bars & impact rollers
  • Hydraulic folding hopper sides & twin drive belt feeder
  • Jack up screen facility for access to screen media & collection conveyor
  • Unique hydraulic slide out facility on tail conveyor to aid screen media removal
  • Heavy duty aggressive 2 bearing screenbox with 10mm stroke (optional 12mm stroke)
  • Maximum mobility with heavy duty, low ground pressure tracks complete with removable pendant remote control system
  • Quick set up time typically under 15 minutes
  • Hydraulically folding conveyors for transport
  • High performance hydraulic system – cast iron pumps & motors complete with hydraulic cooler
  • Powerscreen Pulse telemetry as standard
  • Incline apron feeder
  • Dual power
  • 2 way split configuration
  • Custom colour machine
  • Side conveyor telescopic hydraulic extensions
  • Chevron side conveyor belts
  • Auto lubrication system
  • Radio controlled tracking
  • Hydraulic oil Grade 68
  • Quick release wedge tensioning (side tensioned only)
  • Hopper capacity: 6.8m³ (8.9 cu. yd.)
  • Feed in height with extensions (side): 4.23m (13’ 11”)
  • Feed in height with extensions (rear): 3.63m (11’ 11”)
  • Feed in height (side & rear with collapsed hopper): 3.20m (10’ 6”)
  • Heavy duty 4.87m x 1.53m (16’ x 5’) 2 deck, 2 bearing incline screen with highly aggressive screen drive
  • Fines conveyor: 3.7m (12’ 2”) stockpile height
  • Midsize conveyor: 3.44m (11’ 3”) stockpile height
  • Engine Tier 3 Equivalent: Caterpillar C4.4 ATAAC | Performance: 83 kW (111hp) @ 2200rpm
  • Engine Tier 4F: Deutz 3.6 | Performance: 100 kW (134hp) @ 2200rpm
  • Fuel: 336 L (89 US Gal)
  • Hydraulic Oil (Tier 3): 564 L (149 US Gal)
  • Hydraulic Oil (Tier 4): 450 L (119 US Gal)
