Phoenix 1600 Image go back
Screening

Phoenix 1600

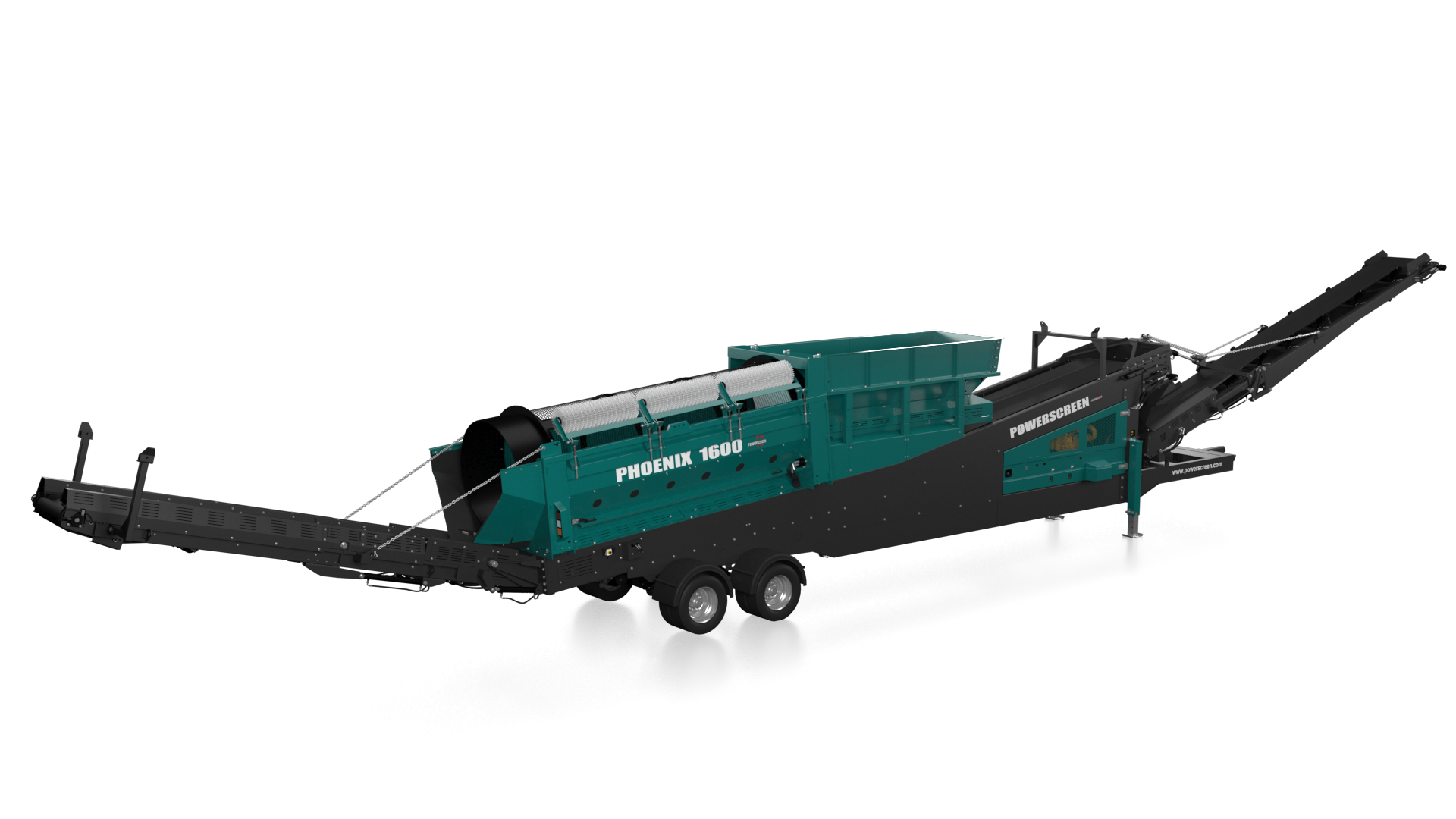

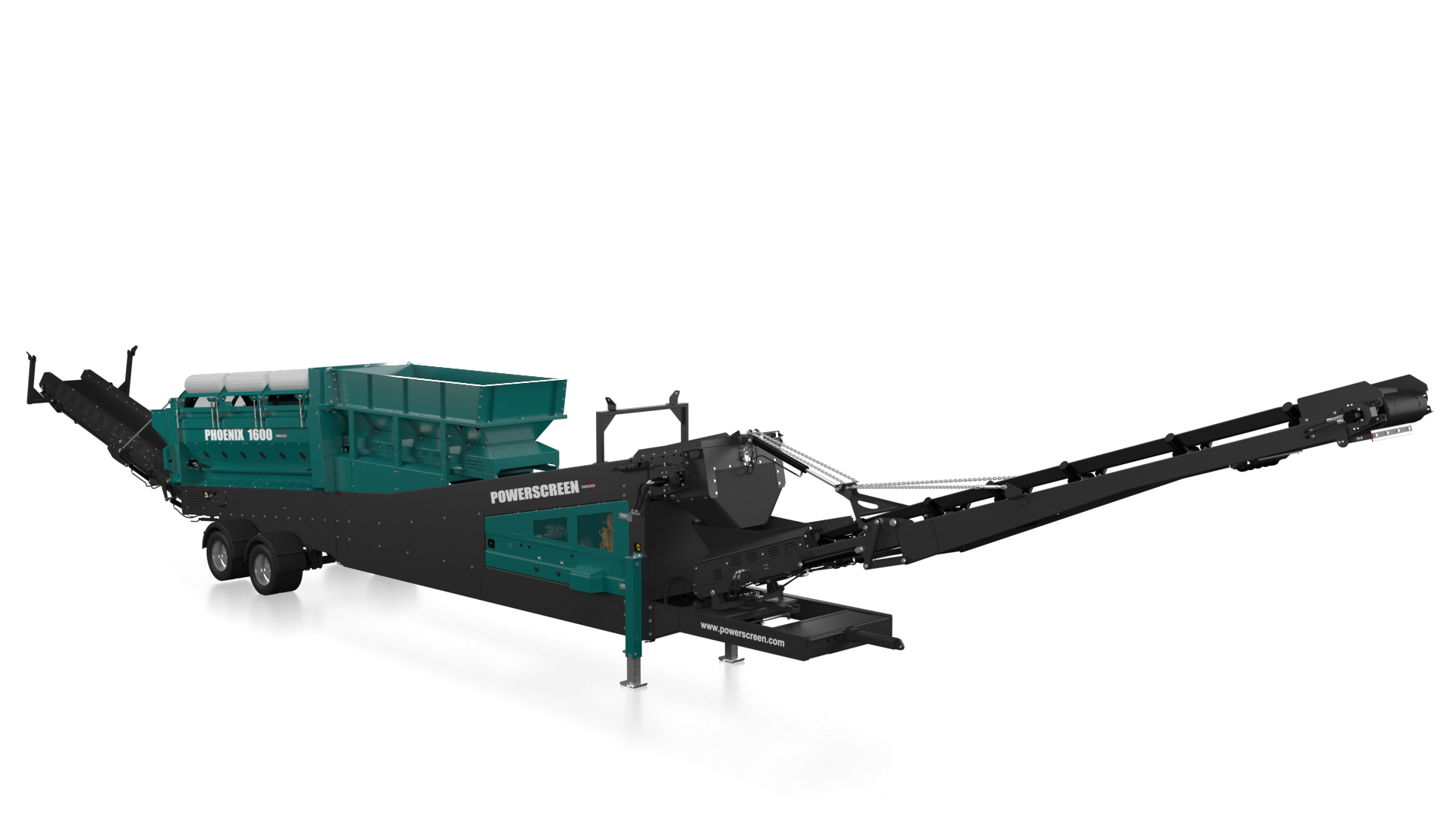

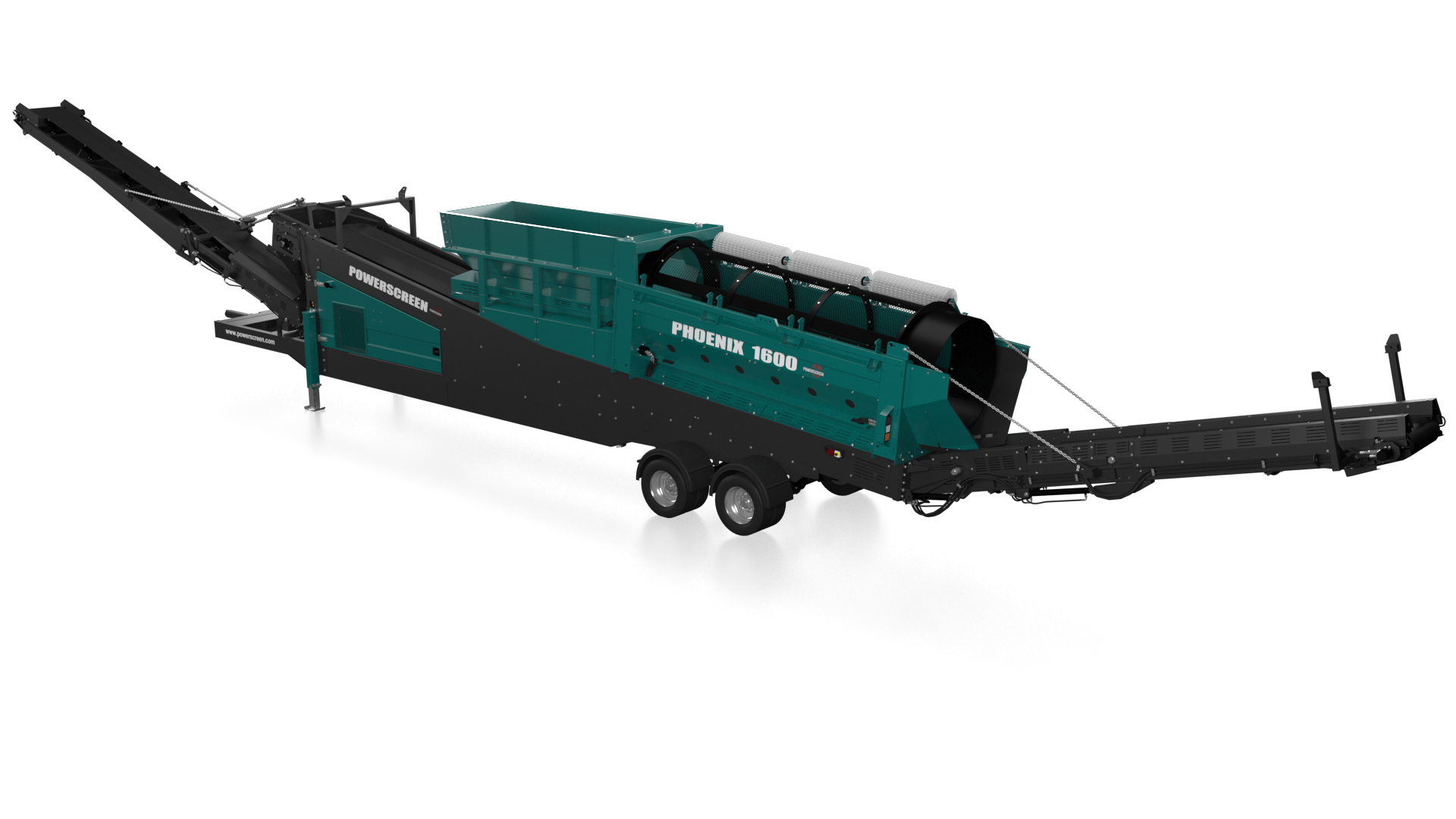

The Powerscreen Phoenix 1600 Wheeled Trommel Screen has been innovatively designed to provide excellent fuel efficiency and low operating costs, whilst also reducing emissions and noise levels due to the machine running at a low engine RPM. With a 4.9m (16’) x 1.54m (5’) drum, unrivalled production throughput is guaranteed due to the screening area, the largest in its class.

Highly versatile, the Phoenix 1600 can easily screen a variety of material including topsoil, compost, sand and gravel, wood chip and C&D waste.

download brochure
Inquire Call us
Phoenix 1600
Phoenix 1600
Phoenix 1600
Phoenix 1600
Phoenix 1600
Phoenix 1600
Phoenix 1600
Phoenix 1600
Features & Benefits Options Specifications
  • The 180° swivel fines conveyor, with a discharge height of 5.87m (19’ 3”) results in the creation of impressive stockpiles
  • This swivel feature can be controlled via a remote while the machine is in operation, minimising downtime
  • The powerful four wheel drive system with high performance friction grip wheels is used to turn the trommel drum giving operators the ability to run bi-directionally
  • Woven mesh or heavy duty punch plates panels can be fitted to the drum to meet all application requirements
  • A fifth wheel connection, tandem axel bogie and a quick set up time make the machine easily transportable from site to site
  • Powerful hydraulics and intelligent feeder control system ensure the Phoenix 1600 is always working to its optimum
  • Tipping grid – 4” and 6”
  • Tipping grid discharge chute
  • Heavy duty woven mesh
  • Punch plate
  • Different colour paint
  • Additional hopper extensions
  • Flexxaire reversible cooling fan
  • Powerscreen Pulse
  • Hopper: 4.3m³ (5.6yd³) capacity
  • 3.7m (12’ 2”) feeder length
  • 900mm (35”) 3 ply plain belt, 4 + 2 covers
  • Drum length: 4.9m (16’)
  • Drum diameter: 1.54m (5’)
  • 19m² (205ft² ) screening area
  • Collections Conveyor: 1200mm (47”) 3 ply plain belt, 4 + 2 covers
  • Fines Discharge Conveyor: 5.87m (19’ 3”) @ 30° discharge height
  • Oversize Conveyor:  3.48m (11’ 5”) @ 30° discharge height
  • Tier 3: CAT C4.4 97kW (130HP)
  • Tier 4: CAT C4.4 82kW (110HP)
  • Final (USA & EU) CAT C4.4 102kW (137HP)
  • Fuel capacity: 327L (86 US gal)
  • Total Weight: 18,000kg (39,700lbs) – depending on options
