Phoenix 1600T Image go back
Screening

Phoenix 1600T

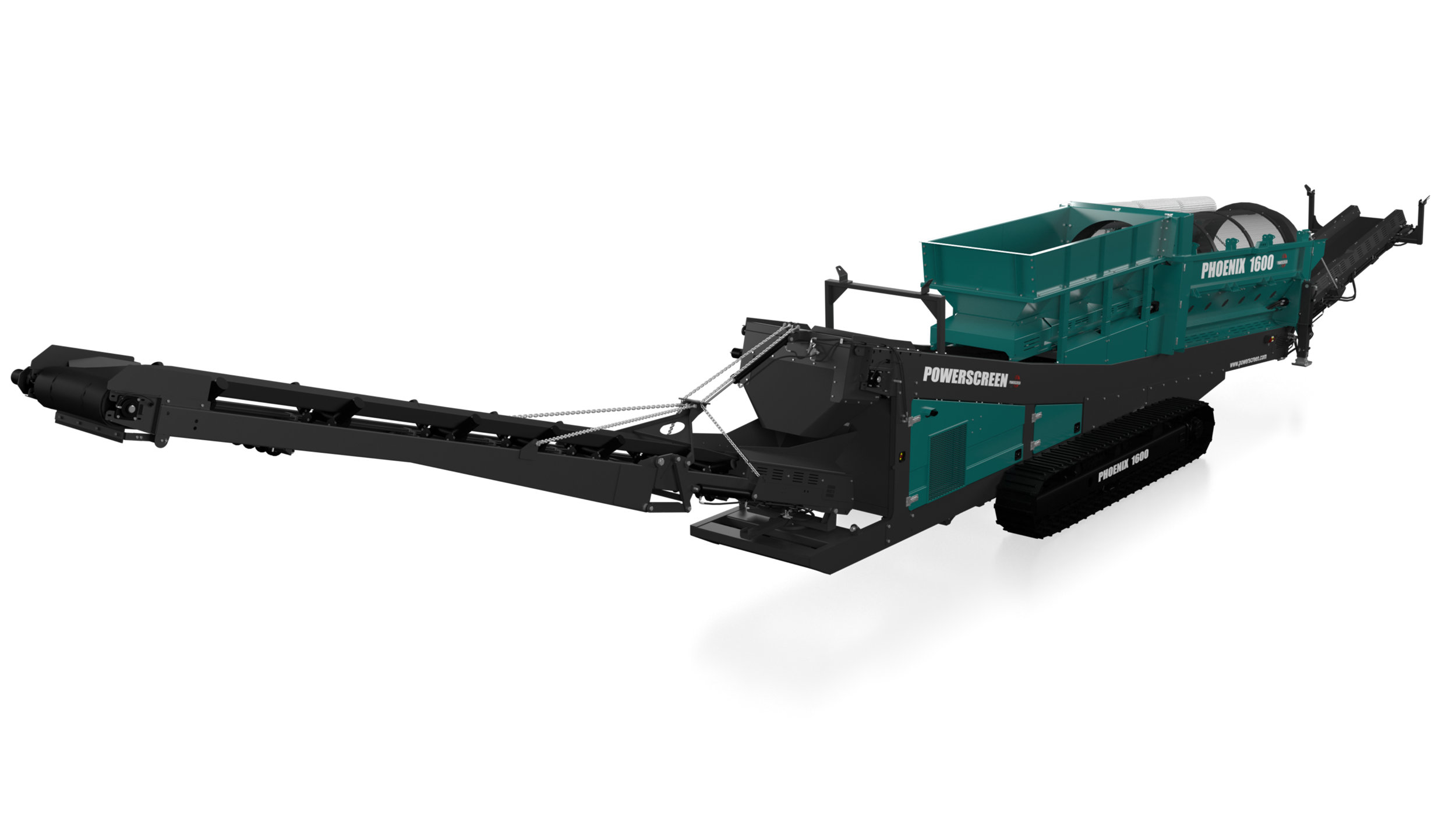

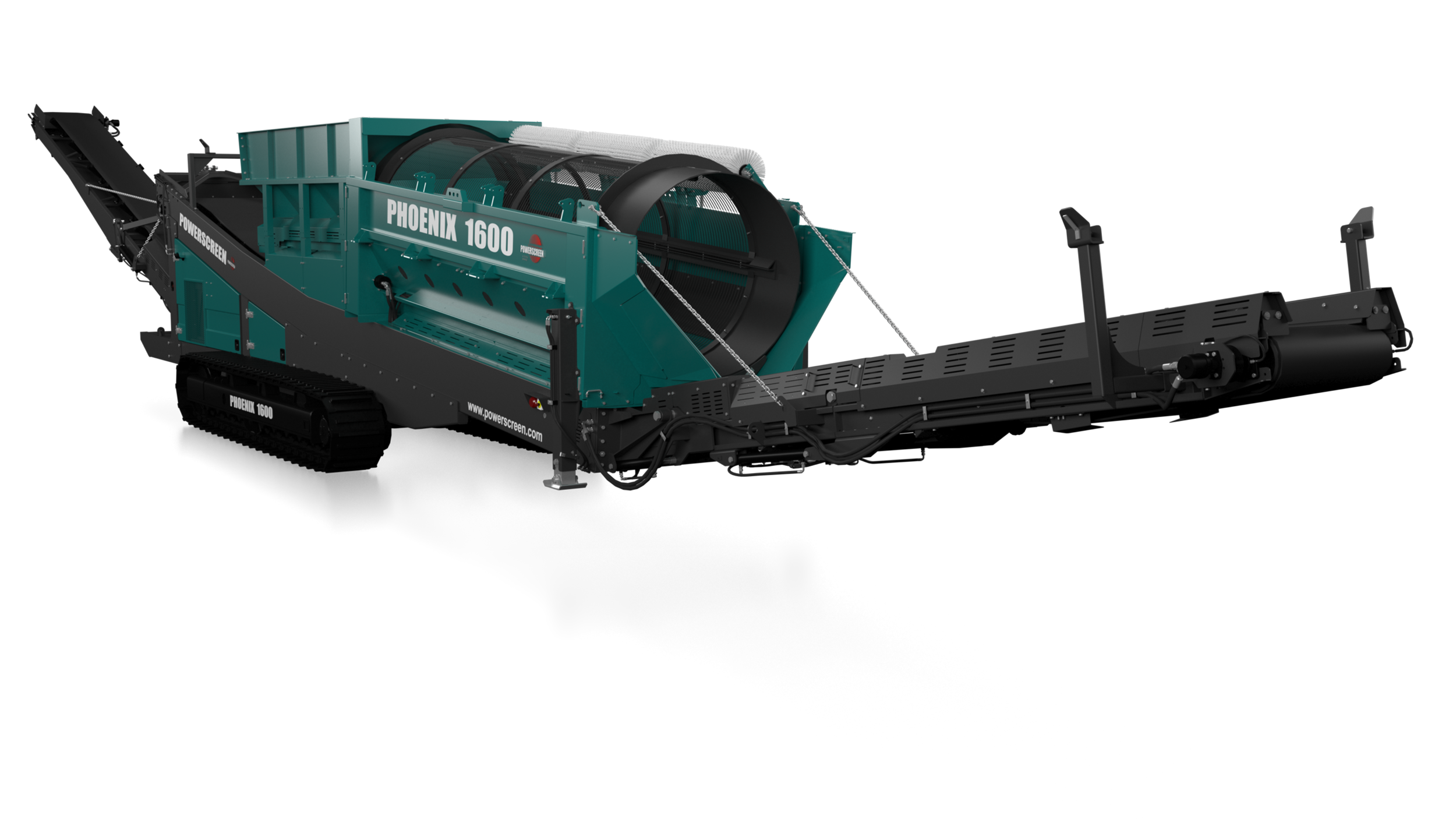

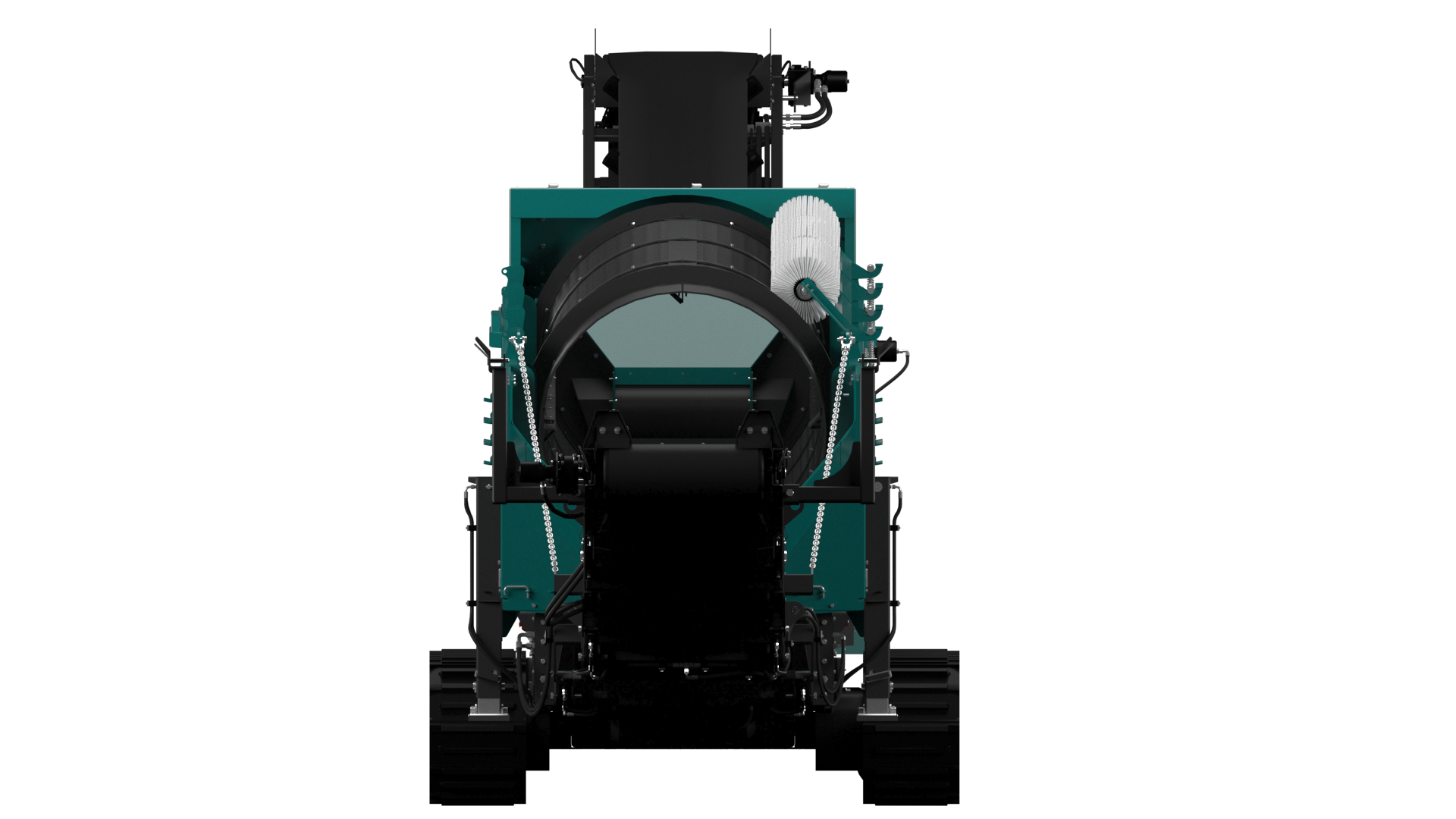

The Powerscreen Phoenix 1600 Tracked Trommel Screen has been innovatively designed to provide excellent fuel efficiency and low operating costs, whilst also reducing emissions and noise levels due to the machine running at a low engine RPM. With a 4.9m (16’) x 1.54m (5’) drum, unrivalled production throughput is guaranteed due to the screening area, the largest in its class.

The tracked configuration allows operators to move the machine around yards with tight spaces and bring the machine to the material for screening.

download brochure
Inquire Call us
Phoenix 1600T
Phoenix 1600T
Phoenix 1600T
Phoenix 1600T
Phoenix 1600T
Phoenix 1600T
Phoenix 1600T
Phoenix 1600T
Features & Benefits Options Specifications
  • The 180° swivel fines conveyor, with a discharge height of 5.65m (18’ 6”) results in the creation of impressive stockpiles
  • This swivel feature can be controlled via a remote while the machine is in operation, minimising downtime
  • The powerful four wheel drive system with high performance friction grip wheels is used to turn the trommel drum giving operators the ability to run bi-directionally
  • Woven mesh or heavy duty punch plates panels can be fitted to the drum to meet all application requirements
  • Powerful hydraulics and intelligent feeder control system ensure the Phoenix 1600 is always working to its optimum
  • Low level hydraulics ensure excellent service access
  • Tipping grid
  • Tipping grid discharge chute
  • Heavy duty woven mesh
  • Punch plate
  • Additional remote control for tracking
  • Different colour paint
  • Powerscreen Pulse
  • Hopper Capacity: 4.3m³ (5.6yd³) capacity
  • 3.7mm (12’ 2”) hopper length
  • 900mm (35”) 3 ply plain belt, 4 + 2 covers
  • Drum: 4.9m (16’) length, 1.54m (5’) diameter , 19m² (205ft² ) screening area
  • Collections Conveyor: 1200mm (47”) 3 ply plain belt, 4 + 2 covers. Length: 11400mm (37’ 5”)
  • Fines Discharge Conveyor: 5.65m (18’ 6’’) @ 30° discharge height
  • Oversize Conveyor: 3.59m (11’ 9’’) @ 30° discharge height
  • Tier 3: CAT C4.4 97kW (130HP)
  • Tier 4: CAT C4.4 82kW (110HP)
  • Fuel capacity: 327L (86 US gal)
  • Total Weight: 21,100kg (46,500lbs) – depending on options
