6800CT Image go back
Grinding/Shredding

6800CT

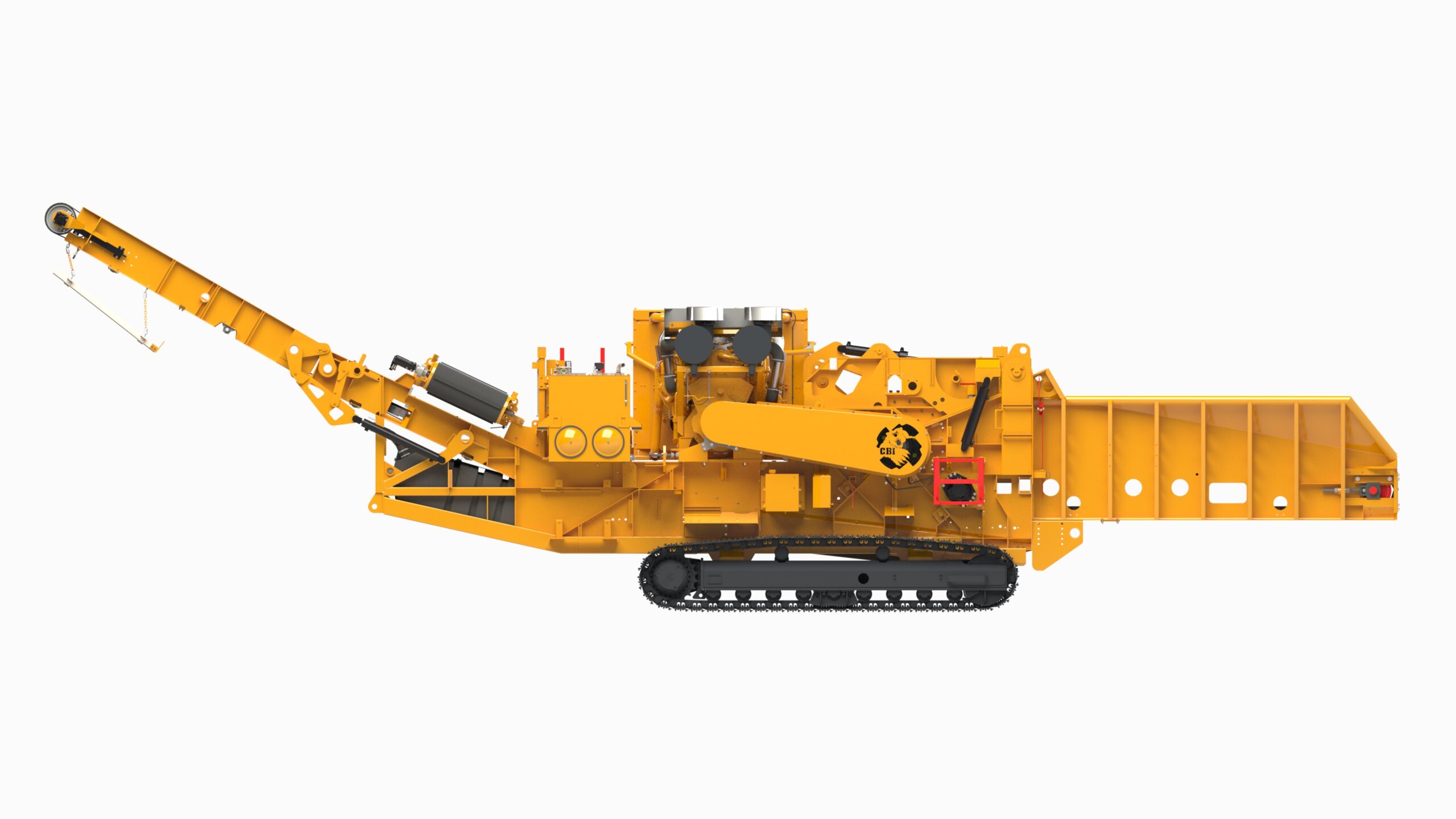

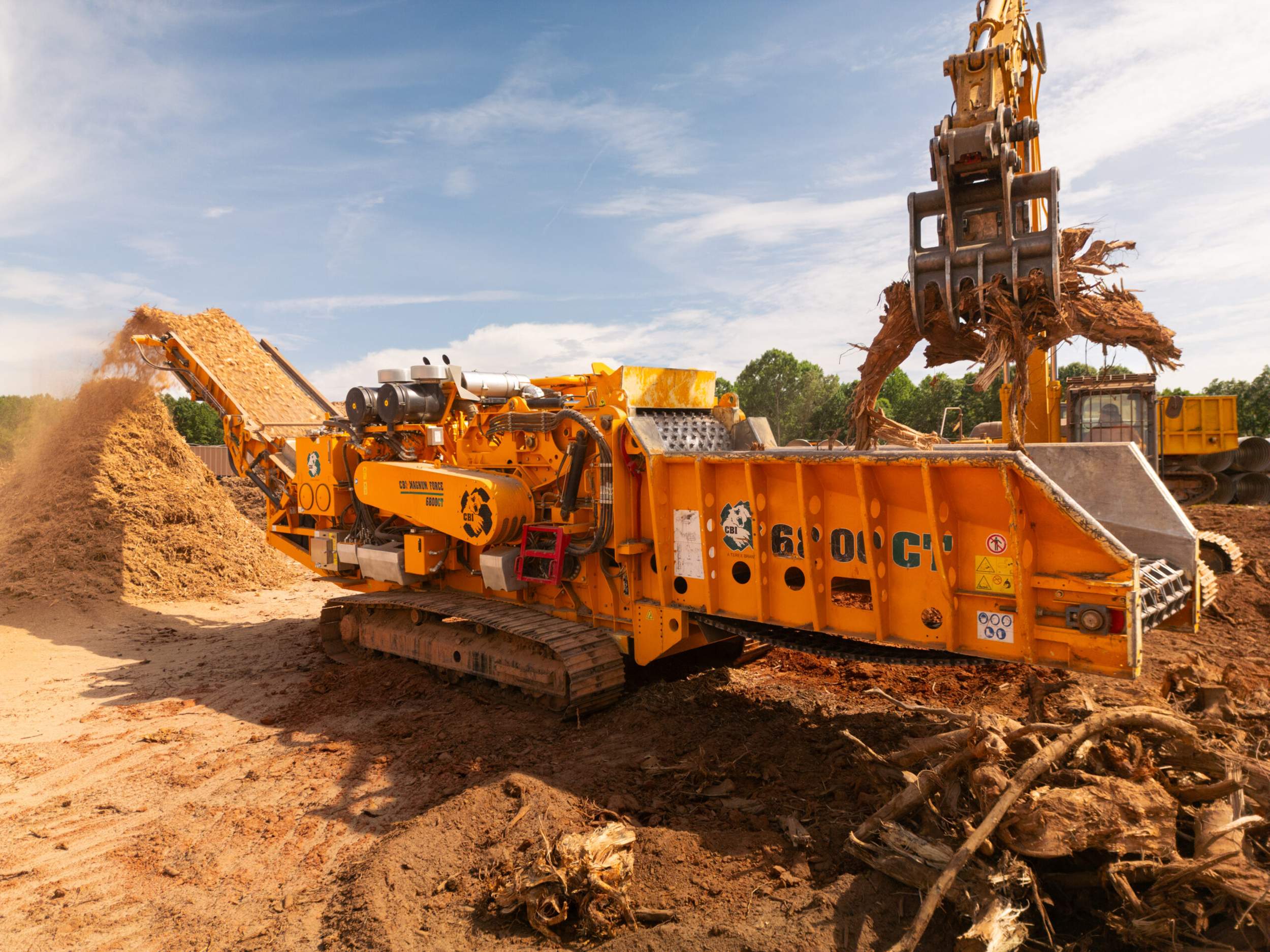

The CBI Magnum Force 6800CT Horizontal Grinder is engineered to surpass every horizontal grinder that came before it. Once land clearing and wood waste professionals switch to CBI grinders for their ultimate production, performance, and durability, they never look back.

download brochure
Inquire Call us
6800CT
6800CT
6800CT
6800CT
6800CT
6800CT
Video Icon
Features & Benefits Options Specifications
  • Change Screens In Minutes
  • Large Capacity Feed Hopper
  • Production Rates Beyond 200 TPH
  • CBI’s offset helix rotor minimizes energy loss from each strike and distributes material evenly across the 24 hammers, requiring less power while outproducing the competition
  • Processes land clearing debris, pallets, clean industrial waste, stumps, logs, mulch, bark, shingles, and whole trees as fast as it can be loaded, producing valuable end-products and giving operators command over real world job deadlines.
  • The grinding chamber can be raised from the ground level for easy access, allowing tip and screen changes to be done in minutes out in the field
  • Metal Detection System (MDS) protects machine from tramp metal.
  • Heavy-duty support gussets are 100% welded.
  • Infeed walls wing outwards to increase loading clearance and funnel material.
  • Cat C32 1200 HP Engine
  • Hydraulic regrind door
  • Air compressor
  • Overband magnet
  • Magnetic head pulley



  • Infeed: 6 strands heavy-duty drag chain accepts 40” material
  • Infeed Width: 60” (1,066mm)
  • Infeed Length: 17’-0” (5,181mm)
  • Rotor: Shaft: 8” (203mm), Width: 60” (1,524mm), Diameter: 40” (1,016mm), RPMs: 1440
  • Discharge Conveyor Width: 60” (1,524mm)
  • Discharge Conveyor Length: 36’ (10,972mm)
  • Discharge Conveyor Height: 16’ 7/16” (4,887mm)
  • Engine: CAT C27; 1050hp engine Option – CAT C32; 1125hp or 1200hp engine
  • Hydraulics: Hydrostatic, closed loop. Hydraulic capacity 110 gallons (416 L)
  • Fuel Tank: 475 (1798L)
  • Weight: 95,000 lbs. (43,091 kg)
