Screening

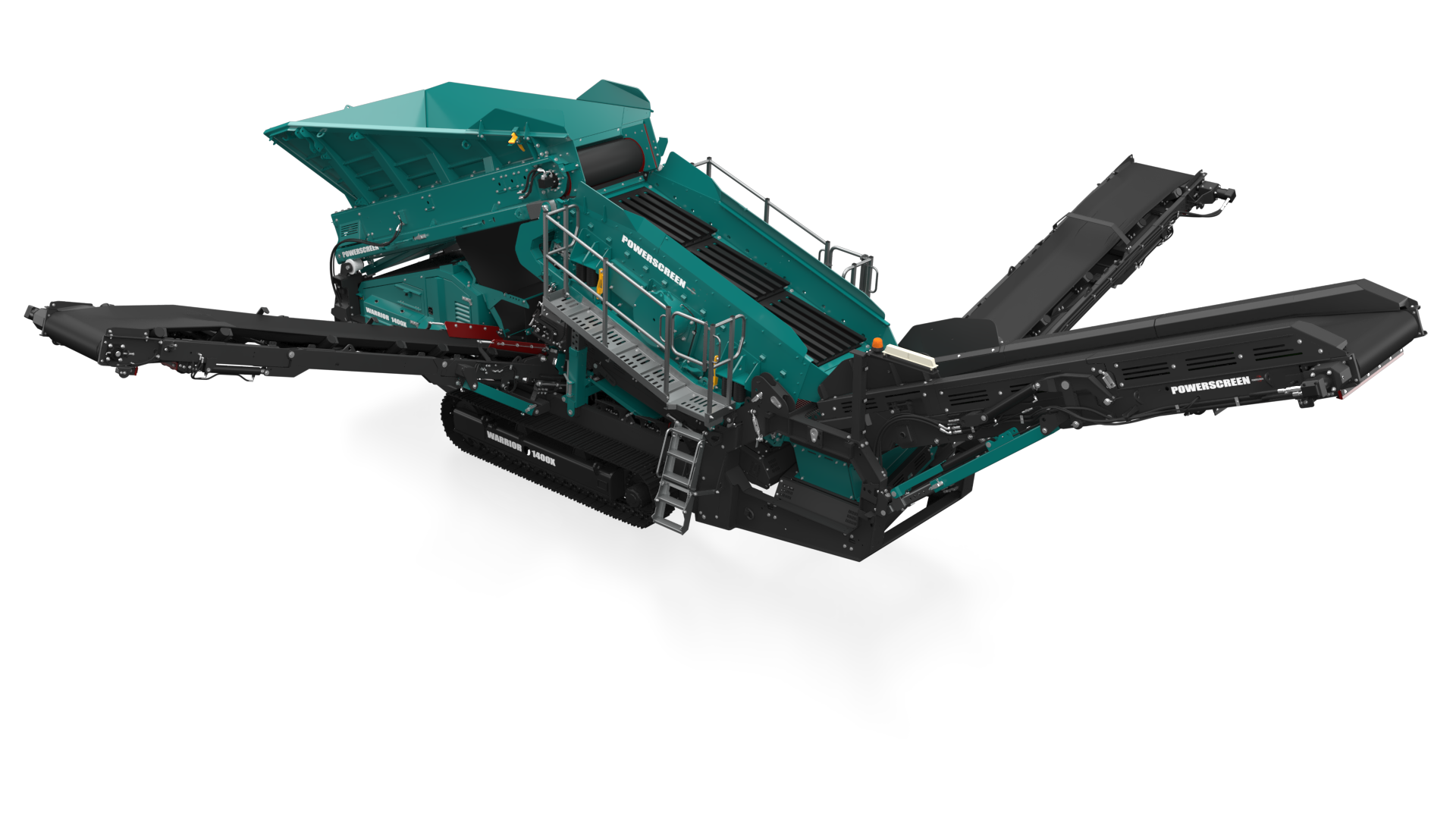

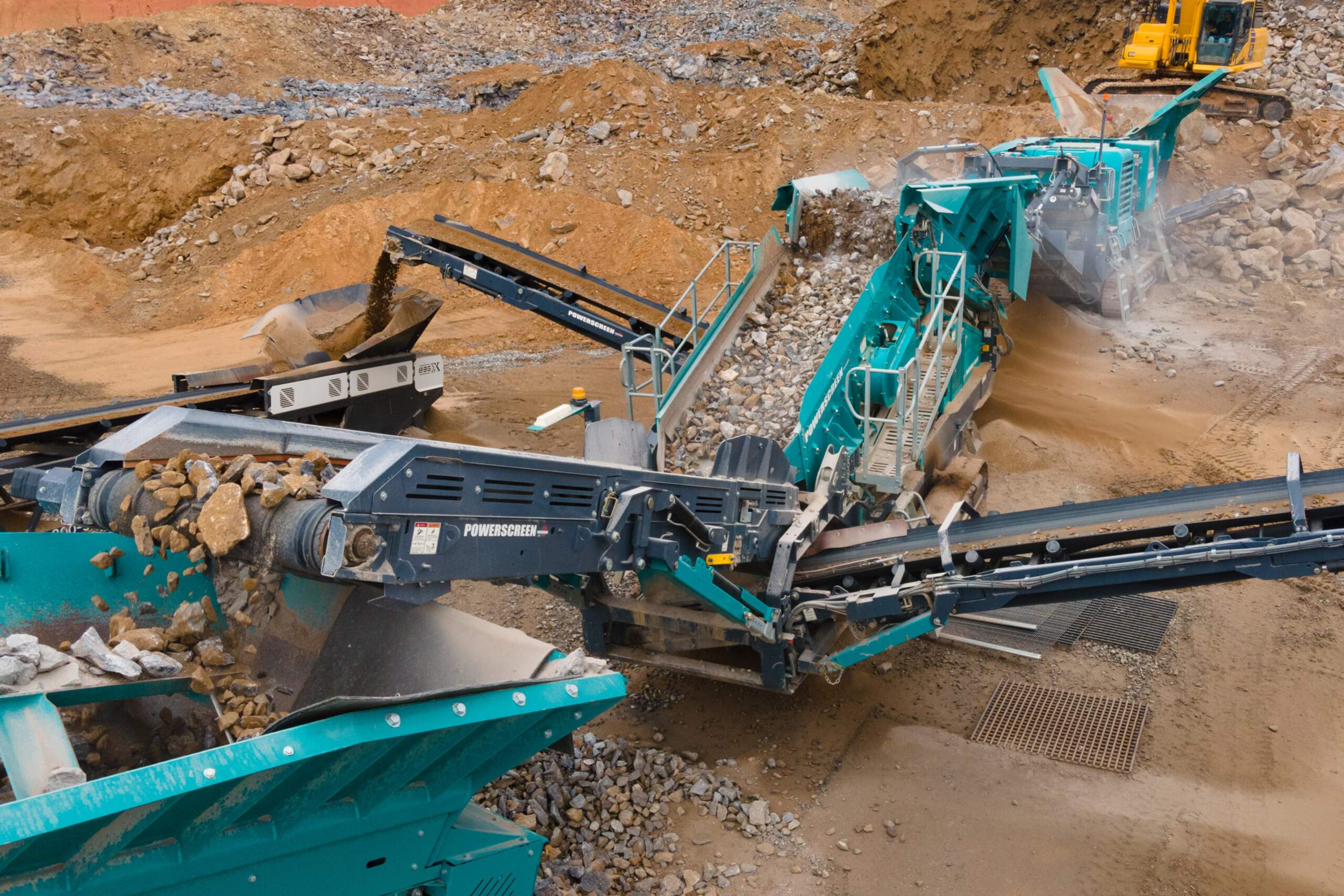

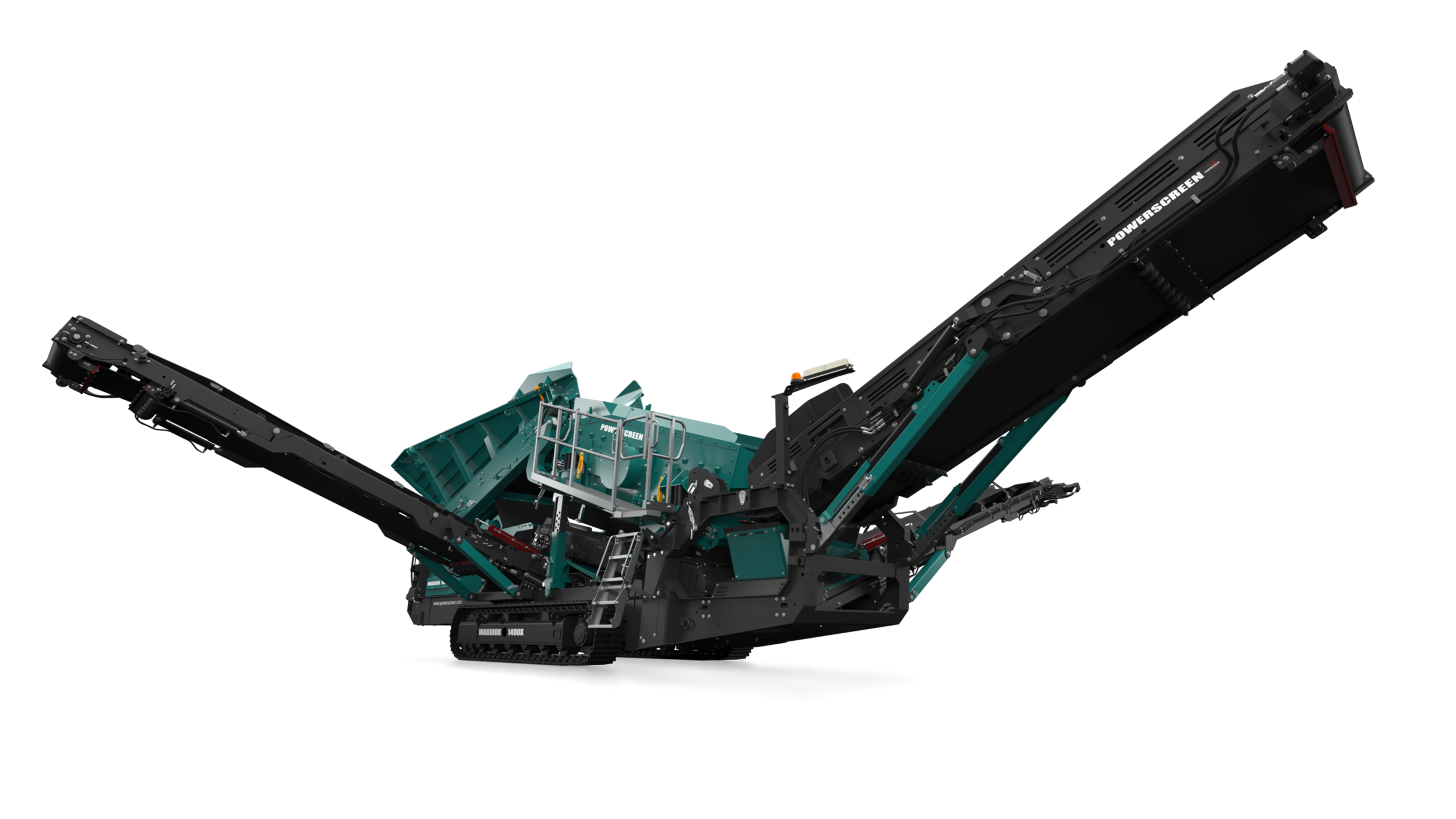

Warrior 1400X

The Powerscreen® Warrior 1400X is a flexible screening machine, aimed at operators who require a high performing, heavy duty, versatile machine that remains easy to transport.

It offers improved performance, lower operating costs, and easier serviceability while building on the reliable foundation of our class-leading Warrior 1400 scalper.

download brochure
Inquire Call us
Warrior 1400X
Warrior 1400X
Warrior 1400X
Warrior 1400X
Warrior 1400X
Warrior 1400X
Warrior 1400X
Warrior 1400X
Features and Benefits Options Specifications
  • High capacity up to 500 tph / 551 US tph (depending on media sizes & material type)
  • Maximum feed size 500 mm (1′ 8″); may vary with media & material
  • Suitable for scalping or stockpiling as a 3-way or 2-way split machine
  • Single-button start-up & shut-down for fast, error-free operation
  • Heavy-duty inclined hopper & belt feeder with impact bars & rollers
  • Fixed hopper sides & twin-drive belt feeder for consistent feed delivery
  • Jack-up screen facility for rapid access to media & conveyor beneath
  • Collection conveyor raise feature for easy under-belt access
  • Aggressive 2-bearing screenbox (10 mm stroke; optional 12 mm)
  • Galvanised walkways & access ladders as standard
  • Maximum mobility on low-ground-pressure, heavy-duty tracks
  • Quick set-up time—typically under 10 minutes
  • High-performance hydraulics (cast-iron pumps & motors + cooler)
  • Hydraulically folding conveyors for rapid transport conversion
  • Two-speed tracks with removable pendant remote control
  • Dual-power option (diesel + electric)
  • Powerscreen Pulse telemetry system as standard
  • Incline apron feeder
  • 300 mm chassis riser
  • Dual-power (diesel/electric)
  • Custom colour livery
  • Side-conveyor telescopic hydraulic extensions
  • Chevron-pattern side-conveyor belts
  • Hydraulic-fold & lock hopper extensions
  • Auto-lubrication system
  • Wear-resistant hopper liners
  • Quick-release wedge screen tensioning (side tensioned only)
  • Screen blankets for sticky feeds
  • Radio-controlled tracking
  • Hydraulic oil Grade 68
  • Hopper capacity: 7 m³ (9.2 yd³)
  • Feed-in heights: side 3.52 m (11′ 7″), rear 3.38 m (11′ 1″), with extensions side 4.57 m (15′)
  • Screenbox: 3.6m x 1.37m (11’ 10’’ x 4’ 6’’)
  • Feed conveyor: 1 300 mm (52″) belt
  • Underscreen conveyor: 1200 mm (48″) belt; 3.46 m centres; 3.9 m stockpile height
  • Fines conveyor: 900 mm (36″) belt; 7.79 m drum centres; stockpile 3.57 m (extended 4.2 m); 68 m³ (extended 110 m³)
  • Tier 3: Cat C4.4 90 kW (121 hp) @ 1 800 rpm
  • Tier 4F: Cat C4.4 82 kW
  • Fuel tank: 336 L
  • Total weight: 27 600 kg (60 848 lbs)
