Conveying

TW 36-140

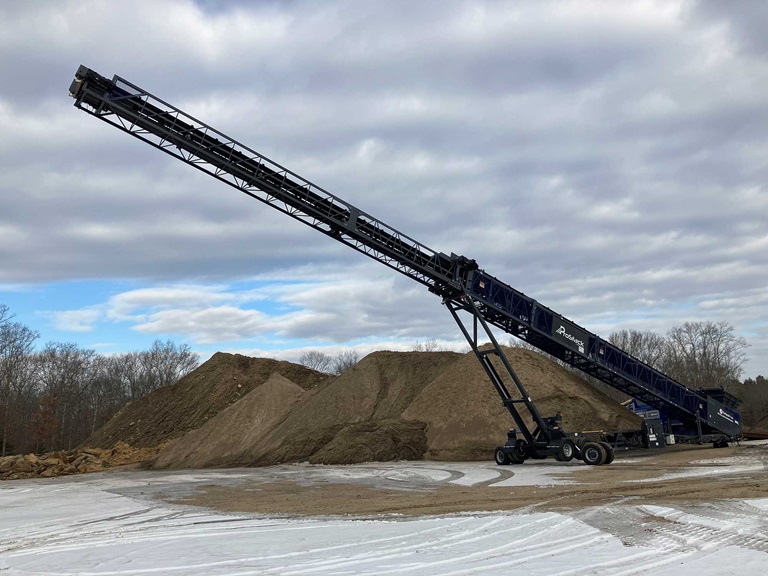

The Prostack TW 36-140 Rotating Telescopic Conveyor has a working length of 42 metres (140ft), 270° of radial movement and is available in multiple tonnage options – 400tph, 600tph and 800tph. A transport length of 27.4 metres (89ft) makes this a highly portable conveyor.

With a stockpile height of 14 metres (45ft) and maximum stockpile capacity of 100,000 tonnes the TW 36-140 provides a heavy duty solution to bulk material handling.

download brochure
Inquire Call us
TW 36-140
TW 36-140
TW 36-140
TW 36-140
Features & Benefits Options Specifications
  • Stinger Drive
  • Swing Axle Undercarriage
  • Folding Axle
  • Hydraulic Wheel Drives
  • Deployment Engine
  • On Board Hydraulic Powerpack
  • PLC Controller
  • Upgrade to 600tph or 800tph model
  • Belt weigher
  • Pull cord E-Stop
  • Feedboot Lined 6mm steel liner
  • Feedboot Lined 6mm AR400
  • Feedboot Lined 12mm AR400
  • Feedboot Lined 20mm rubber liner
  • Chevron Belt
  • Heavy Duty Belt
  • Working Lights
  • Twin Radial Drive
  • Feedboot Extensions
  • Upgrade: Twin motors with Helical Gearbox on Inner & Outer conveyor capable of up to 600TPH/800TPH @ 1.6T/m³
  • Lorry mount kit
  • Road transportable
  • Towing eye
  • Radio remote
  • Belt alignment switches
  • Material sensors
  • Belt speed sensor
  • Low level greasing
  • Dust suppression spray bar
  • Self-alignment troughing roller
  • Engine: 5.5hp deployment engine
  • Maximum conveyor length: 42.45m (139’ 3”)
  • Minimum conveyor length: 27.2m (89’ 5”)
  • Belt width: 900mm (36”)
  • Minimum discharge height: 4.2m (13’ 9”)
  • Maximum discharge height: 14.4m (47’2”)
  • Stockpile Capacity 90°: 21,840m³ (28,570yd³)
  • Stockpile Capacity 180°: 38,800m³ (50,750yd³)
  • Power unit: 11kw motor driving tandem hydraulic pump
  • Hydraulic tank capacity: 265L
