Crushing

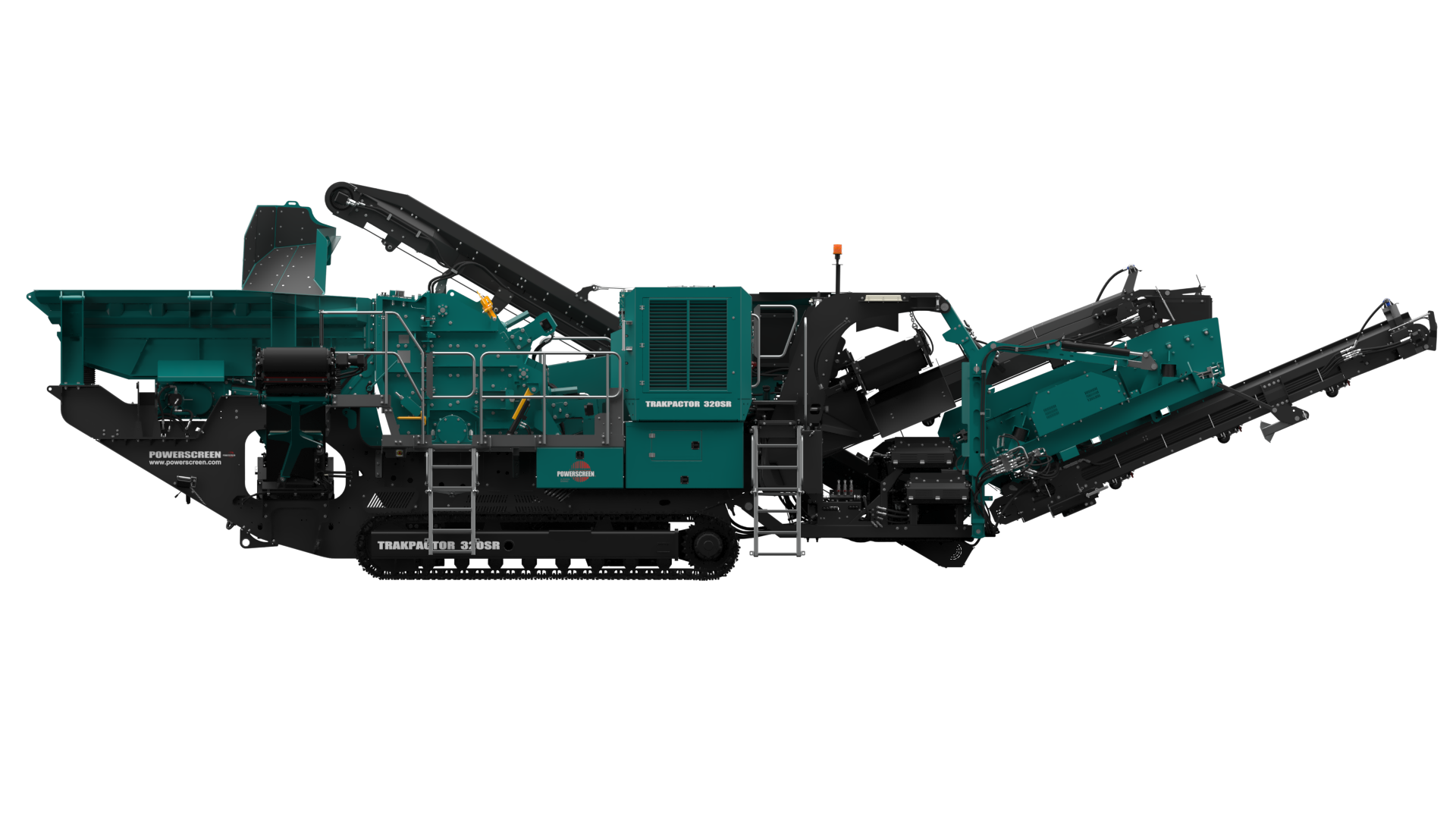

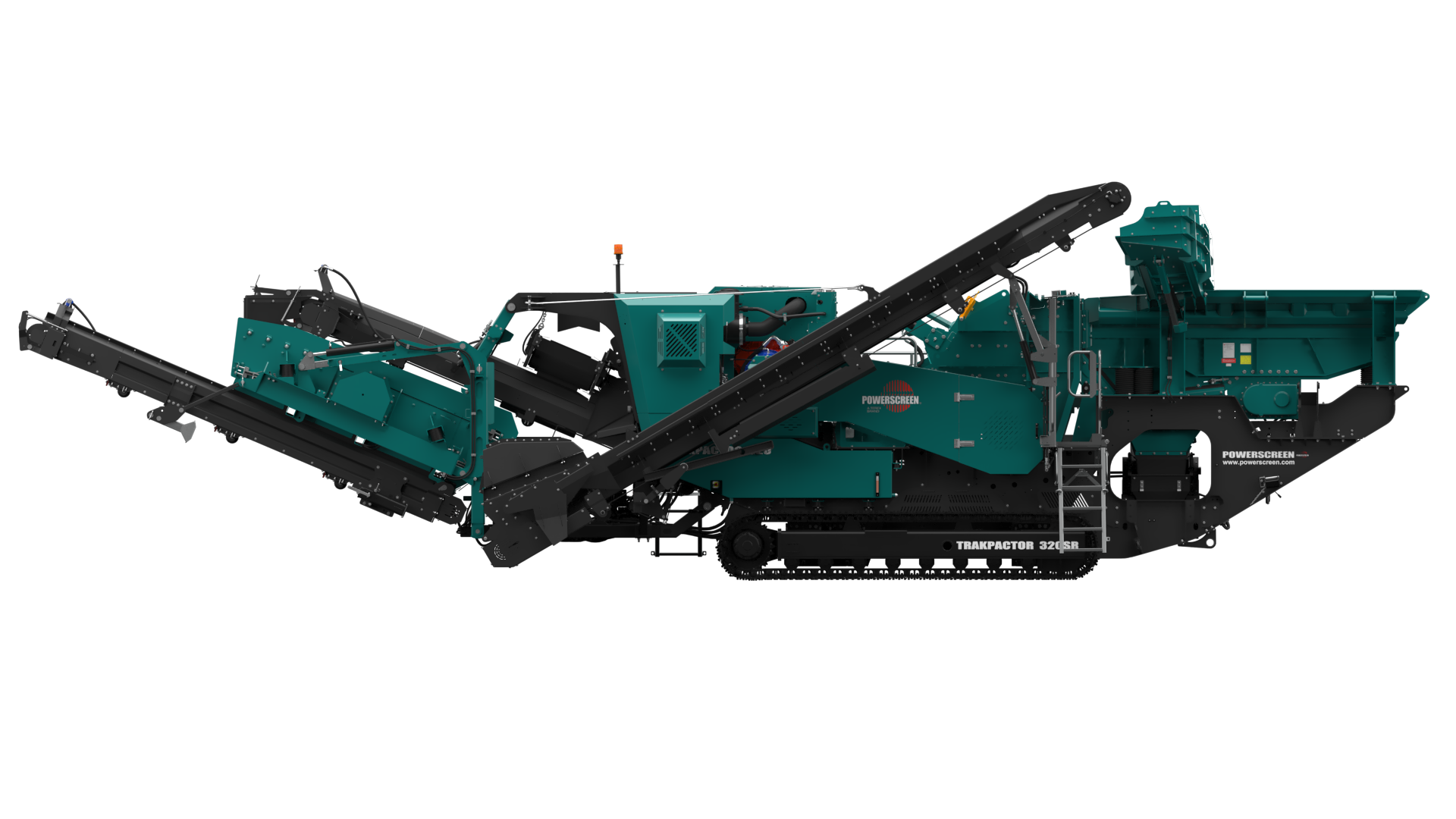

Trakpactor 320SR

The Powerscreen ® Trakpactor 320SR Horizontal Shaft Impactor is a highly compact tracked crusher designed to offer both excellent reduction & high consistency of product yield.

The Powerscreen ® Trakpactor 320SR is designed to give optimum performance in both quarry & recycling applications & is an ideal mid size contractors machine due to it’s compact design & mobility.

download brochure
Inquire Call us
Trakpactor 320SR
Trakpactor 320SR
Trakpactor 320SR
Trakpactor 320SR
Video Icon
Trakpactor 320SR
Trakpactor 320SR
Features & Benefits Options Specifications
  • Output potential of up to 320 tph / 353 US tph – depending on material type & crusher settings
  • Double deck grizzly feeder with under screen
  • Radio remote control as standard
  • Load management system to control feeder speed
  • Suitable for a variety of feed materials
  • Proven Terex impact crusher with hydraulic overload protection, 4 bar rotor & twin apron design
  • Crusher speed variation through user friendly PLC control system
  • Fully independent under crusher vibrating pan feeder (option)
  • Modular conveyor with raise/lower facility to aid clearance of rebar
  • Powerful overband magnet (optional)
  • Designed to give optimum performance in both quarry, demolition & mining applications
  • Hydraulically operated clutch & highly fuel efficient direct drive system
  • Independent hydraulic pre-screen for increased fines removal before the chamber (option)
  • SR configuration includes a detachable 2 deck 3.3m x 1.5m (11’ x 5’) post screen and fines conveyor
  • Powerscreen Pulse Telemetry as standard
  • Extended Hopper
  • Bypass Conveyor
  • Feeder Underscreen Mesh
  • Vibrating Underpan Feeder
  • Overband Magnet
  • Recirculating Conveyor Dust Covers
  • Vibrating Pan Feeder
  • Live Pre-Screen
  • Pre-screen Hopper
  • Pre-Screen Hopper Extensions
  • Extended Bypass Conveyor
  • Hopper Capacity: 6.25m3 (8.2 cu. yd.) / 9m³ (11.8 cu. yd.) with extensions
  • Feed Opening: 44.5″ x 31.5″ (1130mm x 800mm)
  • Rotor Width: 43.3″ (1100mm)
  • Rotor Diameter: 40.5″ (1030mm)
  • Number of Aprons: 2
  • Post-Screen: 4 Bearing, Double Deck Vibrating 11′ x 5′ Screen
  • Discharge Height: 11′ 4″
  • Stockpile Volume: 76m3 (99 cu. yd.)
  • Tier 3 Power Unit: Caterpillar C9.3, 6 cylinder, direct
    injection 250 kW (335hp)
  • Tier 4 Power Unit: Scania DC9 313A 257kW (350hp)
  • Fuel Tank Capacity: 500 L (132 US Gal)
