Crushing

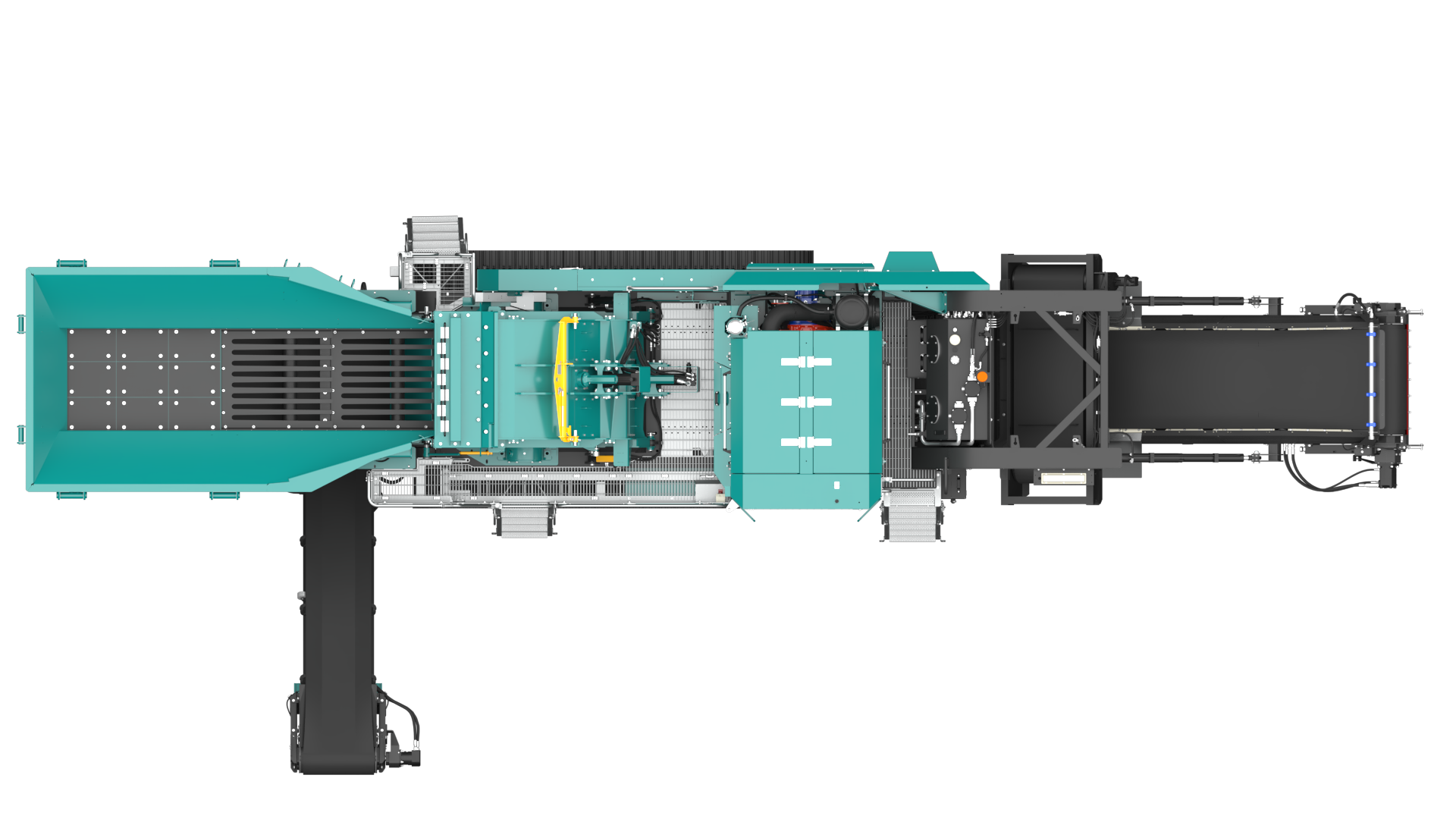

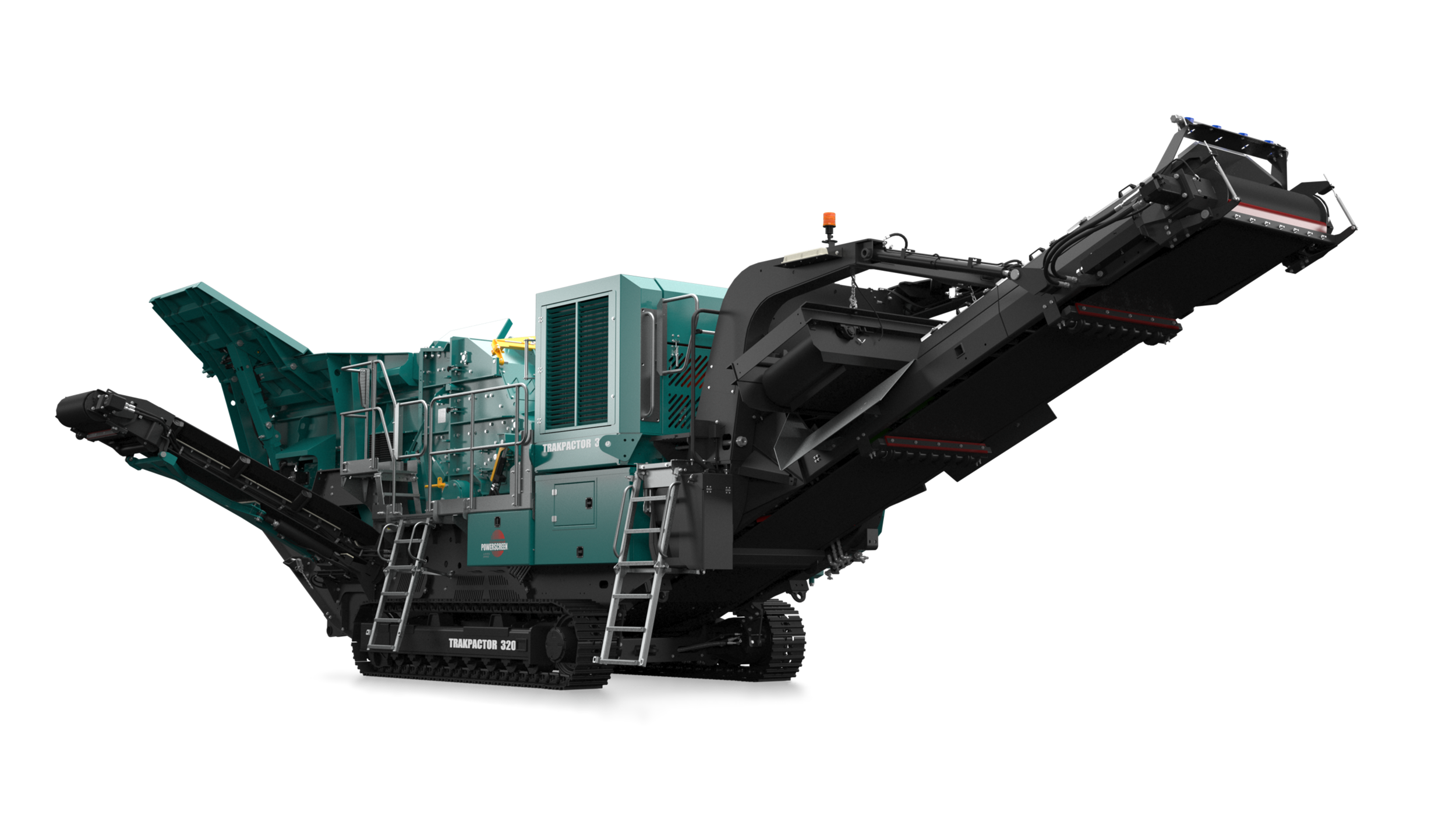

Trakpactor 320

The Powerscreen ® Trakpactor 320 Horizontal Shaft Impactor is a highly compact tracked crusher designed to offer both excellent reduction & high consistency of product yield.

The Powerscreen ® Trakpactor 320 is designed to give optimum performance in both quarry & recycling applications & is an ideal mid size contractors machine due to its compact design & mobility.

download brochure
Inquire Call us
Trakpactor 320
Trakpactor 320
Trakpactor 320
Trakpactor 320
Trakpactor 320
Trakpactor 320
Video Icon
Features & Benefits Options Specifications
  • Output potential of up to 320 tph / 353 US tph – depending on material type & crusher settings
  • Double deck grizzly feeder with underscreen
  • Radio remote control as standard
  • Fully independent hydraulically driven prescreen (optional)
  • Load management system to control feeder speed
  • Suitable for a variety of feed materials
  • Proven Terex Impact crusher with hydraulic overload protection, 4 bar rotor & twin apron design
  • Crusher speed variation through user friendly PLC control system
  • Fully independent under crusher vibrating pan feeder (optional)
  • Modular conveyor with raise/lower facility to aid clearance of rebar
  • Powerful overband magnet (optional)
  • Designed to give optimum performance in both aggregate, recycling & mining applications
  • Hydraulically operated clutch & highly fuel efficient direct drive system
  • Powerscreen Pulse telemetry as standard
  • Full and half size chrome, martensitic, austenitic, and ceramic blow bars
  • Grizzly cartridges, nominal spacing 30 or 60mm
  • Punch plate options 30, 45 or 60mm
  • Blanking plates/mats for grizzly
  • Under Screen wiremesh 10, 20, 30, 40, or 50mm
  • Single pole/twin pole magnet
  • Belt scale
  • Side dirt conveyor
  • Refuelling pump
  • Hydraulic water pump
  • Radio remote control
  • Dust hood on product conveyor
  • Hydraulic folding extended Hopper
  • Hopper capacity: 6.25m3 (8.2 cu. yd.) / 9m³ (11.8 cu. yd.) with extensions
  • Feed opening: 1130mm x 800mm (44.5” x 31.5”)
  • Rotor width: 1100mm (43.3”)
  • Rotor diameter: 1030mm (40.5”)
  • Number of aprons: 2
  • Product Conveyor: toughflex SW630/2 9+3 Grade X Covers, 1000mm (2’ 11”) belt width
  • Tier 3 Equivalent : Caterpillar C9.3, 6 cylinder, direct injection 250 kW (335hp)
  • Tier 4F: Scania DC9 313A 257kW (350hp)
  • Fuel tank capacity: 500 L (132 US Gal)
  • Total Weight Tier 3: 36,800kg (81,130lbs) Bypass conveyor, twin pole magnet, grinding path
  • Total Weight Tier 4F: 36,560kg (80,601lbs) Hopper extensions, bypass conveyor, single pole magnet
