Crushing

Trakpactor 260

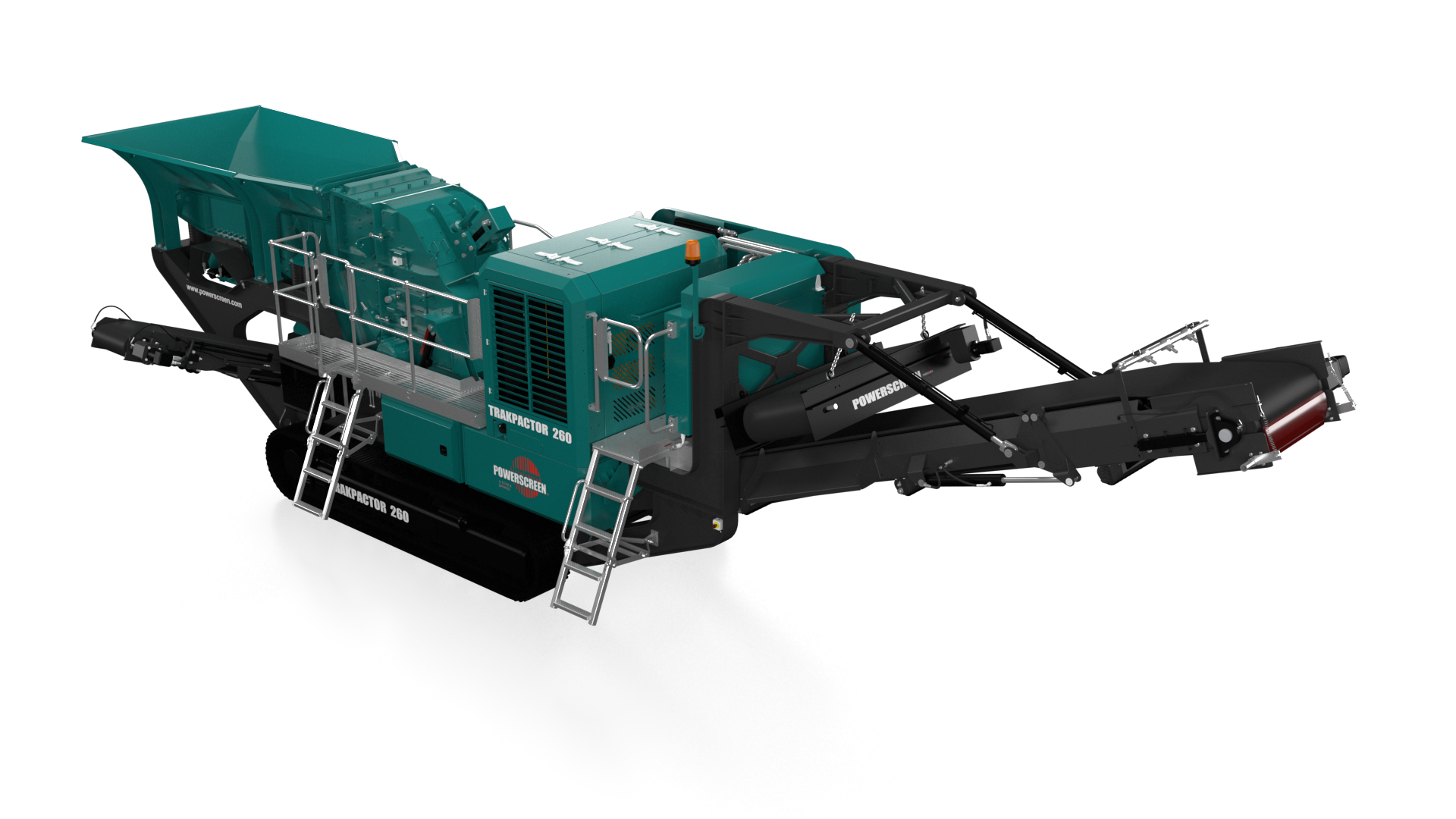

The Powerscreen ® Trakpactor 260 Horizontal Shaft Impactor, is a highly compact tracked crusher designed to offer both excellent reduction & high consistency of product yield. The Powerscreen ® Trakpactor 260 is designed mainly for the recycling & demolition markets & is an ideal contractor machine due to its compact design & mobility.

download brochure
Inquire Call us
Trakpactor 260
Trakpactor 260
Trakpactor 260
Trakpactor 260
Features & Benefits Options Specifications
  • Output potential of up to 250 tph / 275 US tph – depending on material type & crusher settings
  • Suitable for a variety of feed materials
  • Radio remote control as standard
  • Ideal for recycling & demolition applications
  • Replaceable tine bar cartridge style grizzly feeder
  • Load management system to control feeder speed
  • Proven Terex impact crusher with hydraulic overload protection, 4 bar rotor & twin aprons
  • Crusher speed variation through user friendly PLC control system
  • Fully independent under crusher vibrating pan feeder (optional)
  • HPTO clutch & highly fuel efficient direct drive system
  • Modular conveyor with raise/lower facility to aid clearance of rebar
  • Overband magnet (optional)
  • Powerscreen Pulse telemetry as standard
  • Bypass Conveyor: steel, troughed tray hydraulically folding
  • Magnet: suspended self cleaning over band with endless belt
  • Feeder underscreen mesh: removable wire meshes fitted in lieu of standard rubber blanking mat when used in conjunction with optional side conveyor
  • Blow bars: 2 full size martensitic & 2 half size manganese blow bars fitted as standard
  • Cold climate oils – (Recommended for ambient temperatures between -20 to +30ºC) – Hydraulic & lubrication oils only. Other component modifications may be required for low temperature operations. Please contact the Powerscreen sales & applications department with any queries.
  • Hot climate oils – (Recommended for ambient temperatures between +15 to +50ºC)
  • Vibrating underpan feeder: steel bodied vibrating feeder fitted with abrasion resistant liners, mounted under crusher & designed to prevent any impact damage to product conveyor
  • Belt weigher system can be fitted to the product conveyor
  • Full length product conveyor with fully folding head section for transport
  • Lights mounted over the crusher & on the cowls at the front of the plant
  • Optional extras: high chrome blow bars, ceramic blow bars, 4 full size hammers in lieu of 2 full & 2 half hammers, blow bar extractor kit, overband magnetic separator, twin pole overband magnetic separator, bypass conveyor, plant lighting, product conveyor hydraulic folding head section, feeder underscreen mesh, belt weigh, underpan feeder
  • Hopper capacity: Up to 2.3m³ (3 cu. yd. )
  • Feed opening: 860mm x 610mm (34” x 24”)
  • Rotor width: 830mm (33”)
  • Number of aprons: 2
  • Product Conveyor: discharge height: 3.25m (10’ 8”) in fully raised position
  • Tier 3 Equivalent: Caterpillar C7.1 186kW (250hp)
  • Tier 4F: Caterpillar C7.1 205kW (275hp)
  • Fuel tank capacity: 400 L (106 US Gal)
  • Tier 3 weight: 26,350kg (58,092lbs) Bypass conveyor, twin pole magnet
  • Tier 4F weight: 25,750kg (56,769lbs) Bypass conveyor, twin pole magnet (heavy duty)
