Titan 600 Image go back
Screening

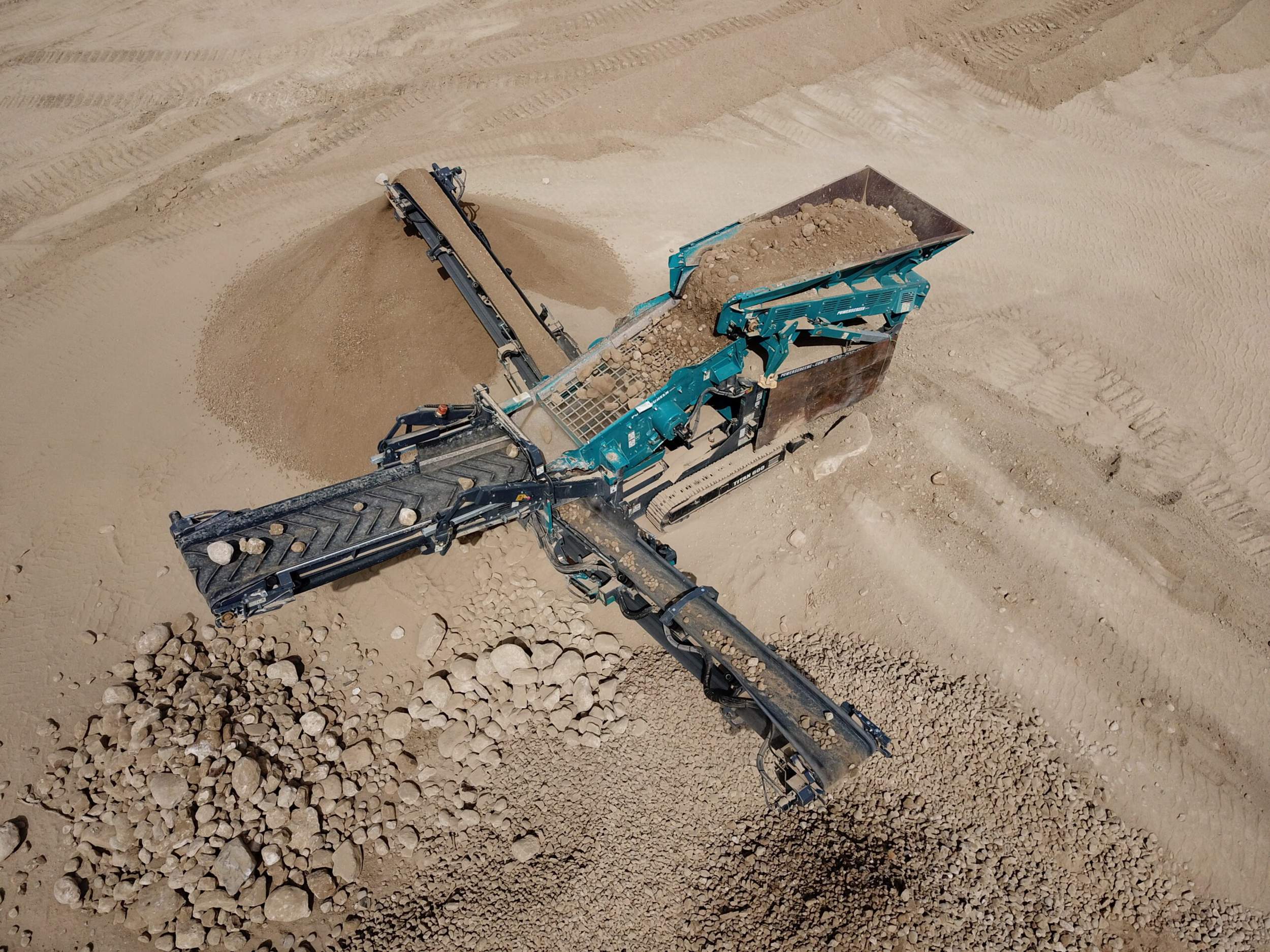

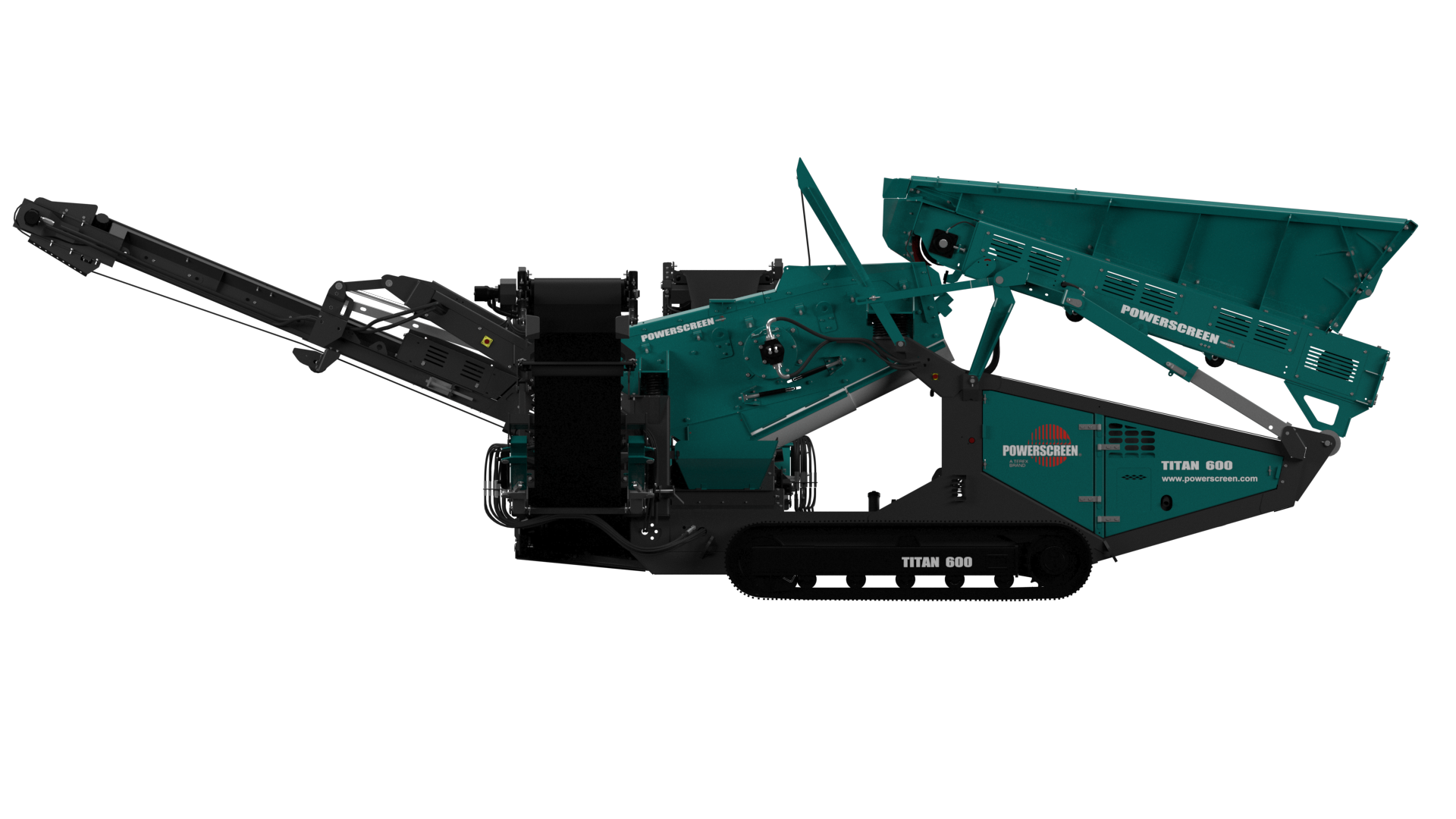

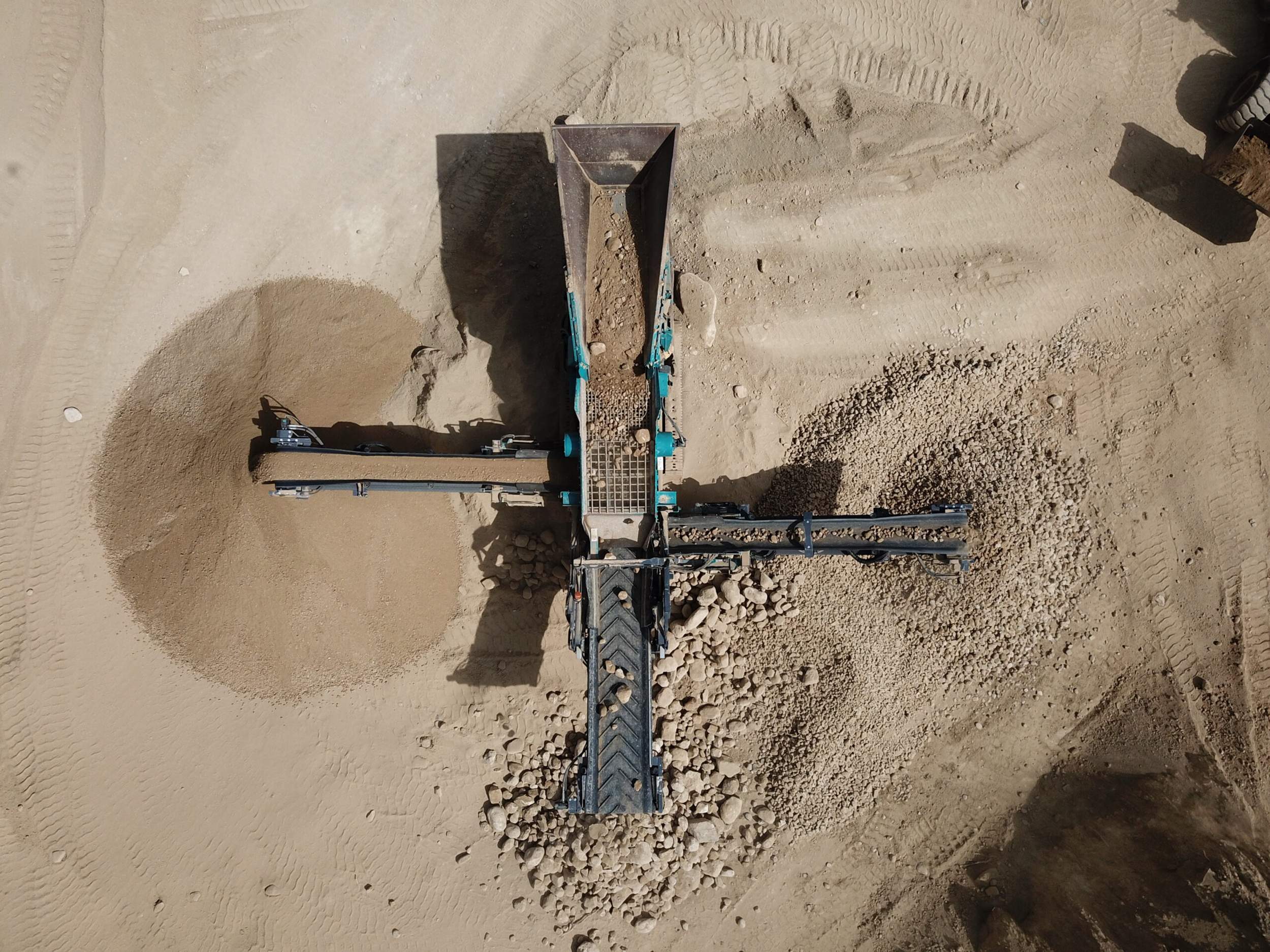

Titan 600

The Titan 600 is a versatile 2 Deck Tracked Scalping Screen, in a compact footprint, with the capacity to screen up to 280tph (308 US tph) depending on the application.

The 600 can be rapidly switched between a 2-way and 3-way split unit making it a highly versatile machine suitable for a range of applications. Previously known as the Warrior 600, this machine brings with it a high pedigree & industry reputation.

download brochure
Inquire Call us
Titan 600
Titan 600
Titan 600
Titan 600
Titan 600
Titan 600
Titan 600
Titan 600
Titan 600
Titan 600
Features & Benefits Options Specifications
  • High capacity up to 280 tph / 308 US tph (depending on media sizes & material type)
  • Maximum feed size 300 mm (1′), variable by media & material
  • Smart, lightweight design retains strength and robustness
  • Ultra-low fuel consumption via optimized hydraulics
  • Fully hydraulic rapid conversion from 3-way to 2-way split
  • Heavy-duty single-shaft incline screenbox with adjustable stroke
  • Maximum mobility on heavy-duty, low ground pressure tracks
  • Optional removable pendant remote for safe, hands-free control
  • Quick set-up time and simple operation & maintenance
  • High-performance hydraulic system (cast-iron pumps & motors, hydraulic cooler)
  • Versatile for scalping, stockpiling, or pre-/post-crusher splitting
  • Variable-speed hopper and wide range of screen media
  • Drop-down rear hopper door lowers feed-in height
  • Longitudinal engine arrangement for easier access & serviceability
  • Powerscreen Pulse telemetry system standard for live fleet monitoring
  • Screen blanket to slow material across the top deck & aid sticky feed
  • Custom paint livery
  • Chevron side conveyor belts
  • Auto-lubrication system
  • Radio-controlled tracking
  • Quick-release wedge screen tensioning (side tensioned only)
  • Wide range of interchangeable screen media
  • Hydraulically folding tail conveyor
  • Other extras (e.g. under-tray magnet prep, lighting, plant lighting, toolboxes)
  • Hopper capacity: 3m³ (3.9yd³)
  • Feed in height (rear): 2.86m (9’ 4”)
  • Feed in height (rear folder): 2.31m (7’ 7’’)
  • Feed in height (side): 3.3m (10’ 11”)
  • Screenbox: 2.49 m × 1.17 m (8′2″ × 3′10″), 2-deck heavy-duty design
  • Fines conveyor: 2.9m (9’ 6”) stockpile height
  • Midsize conveyor: 650 mm (26″) plain belt; 2.8m (9’ 2”) stockpile height
  • Oversize tail conveyor: 2.7m (8’ 10”) stockpile height
  • Engine Tier 3 equivalent: Cat C2.2 | Performance of 43kW (58hp) @2300rpm
  • Engine Tier 4F: Deutz TD2.9 | Performance of 42kW (56.3hp) @2200rpm
  • Fuel capacity: 145 L (38 US Gal)
  • Total weight: 12 780 kg (28 175 lbs)
