Tree Care Equipment

SL5

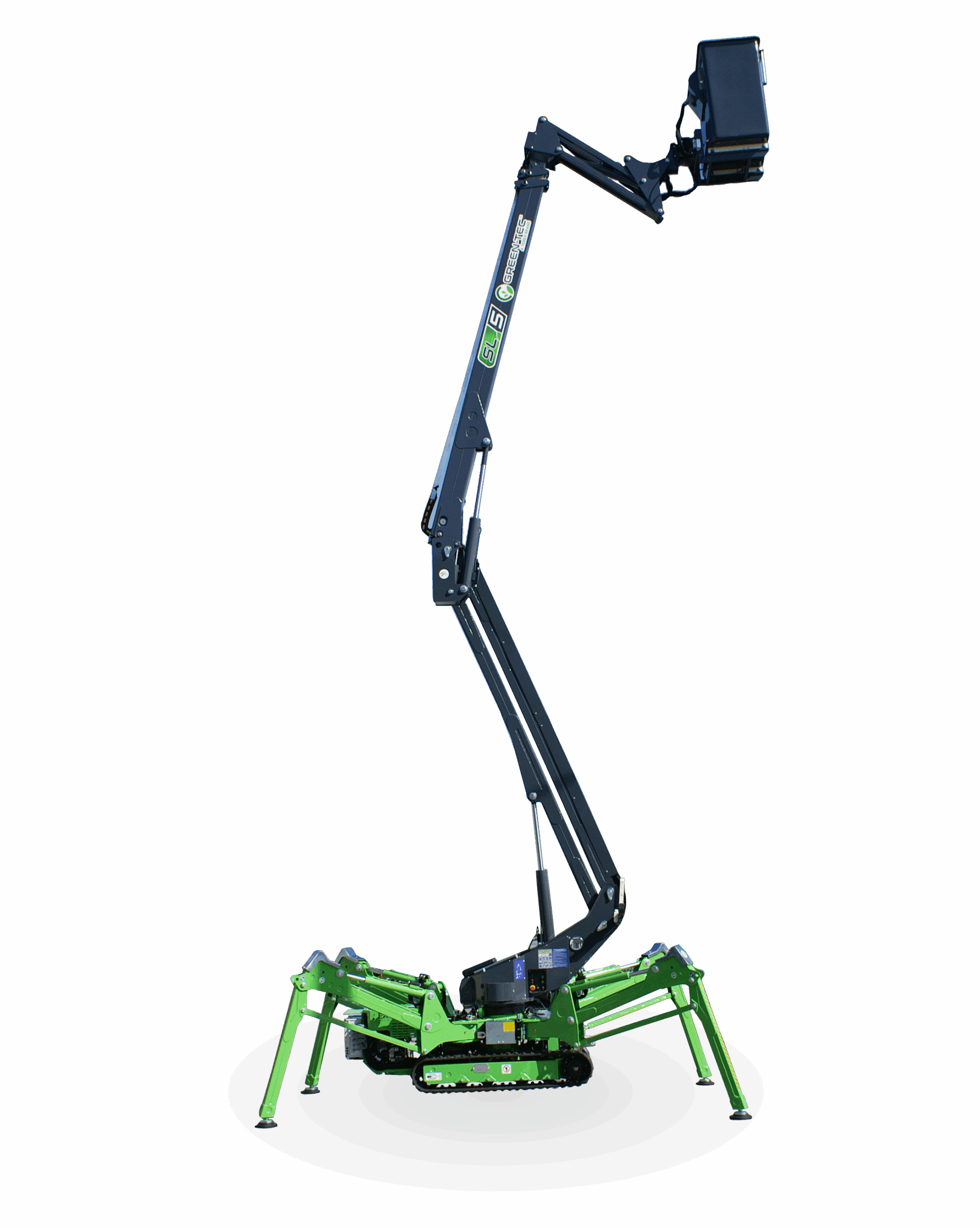

The SL5 is a versatile aerial lift platform capable of 360-degree rotation. When lock into place, the 4 adjustable legs gives stability on different terrains.The legs can be safely positioned to allow them to work on different Gradients.

The Basket can be manoeuvre to the exact position you need them with the use of articulating booms and jibs enabling a single operator to easily complete an endless range of jobs.

download brochure
SL5
SL5
SL5
SL5
  • Reach heights required for removing tall trees
  • Narrows down to 2’ 11” (89cm), this allows it to fit through the narrowest of spaces
  • Equipped with “legs” that lock into place, guaranteeing stability
  • Allows setup on steep banks, uneven areas, or soft terrain
  • 180° degrees basket rotation
  • Up to 510lbs (230kg) Basket Capacity
  • Active Stability Management System
  • Power unit: 16.8 hp Stage V / Tier 4 Final
  • Max Working Height: 68 ft 10 in
  • Turnable basket: 160 degrees
  • Articulated Jib: 90 degrees
  • Max Load: 507 lbs
  • Max Working Outreach: 32 ,ft 50 in
  • Engine: Kubota Diesel
  • Transport: 17 ft length, 2’ 8” / 3’ 7” width & 6 ft 50 in height
  • Weight: 2,850kg (6,283lbs)
