Premiertrak 600 Image go back
Crushing

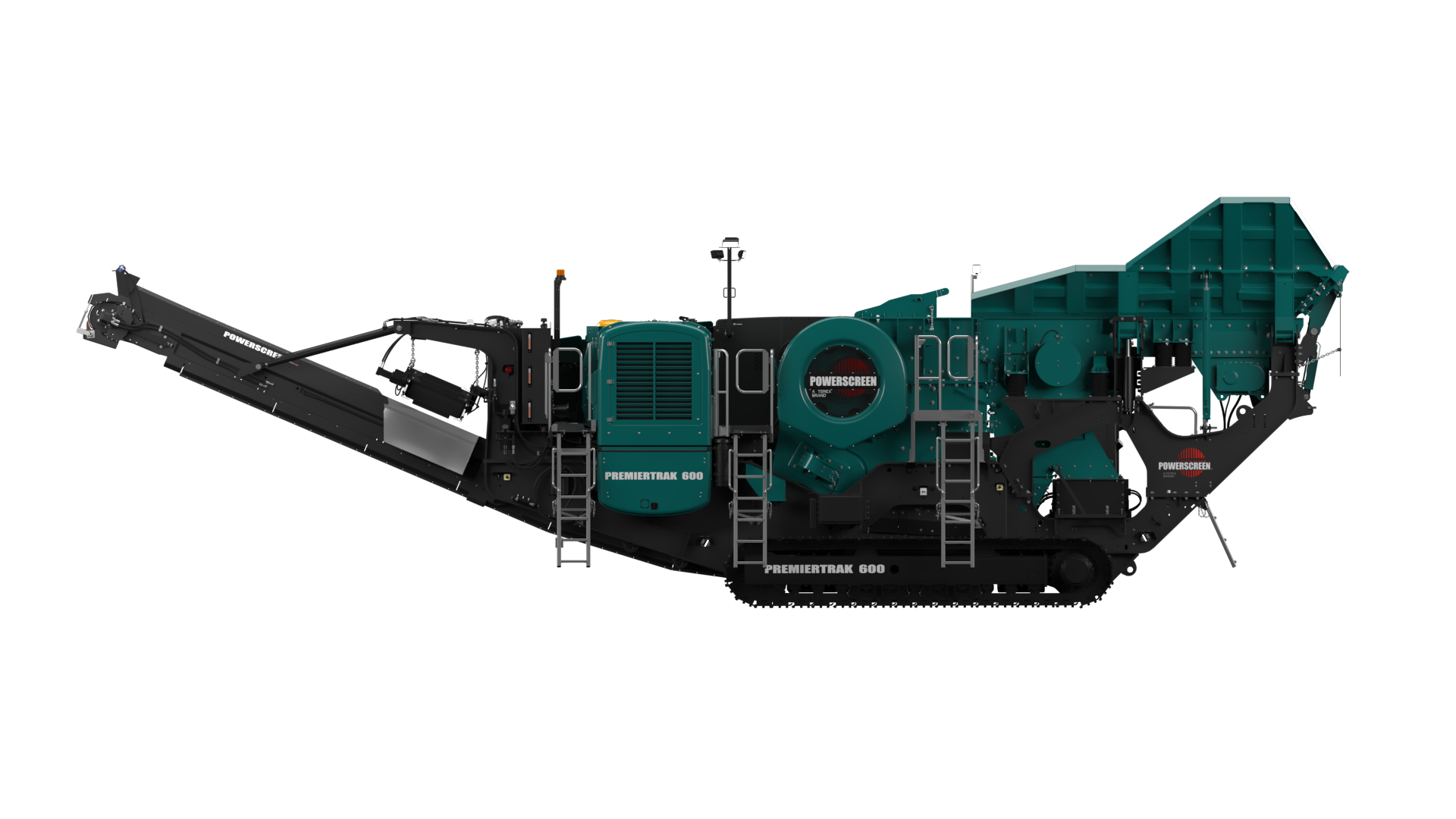

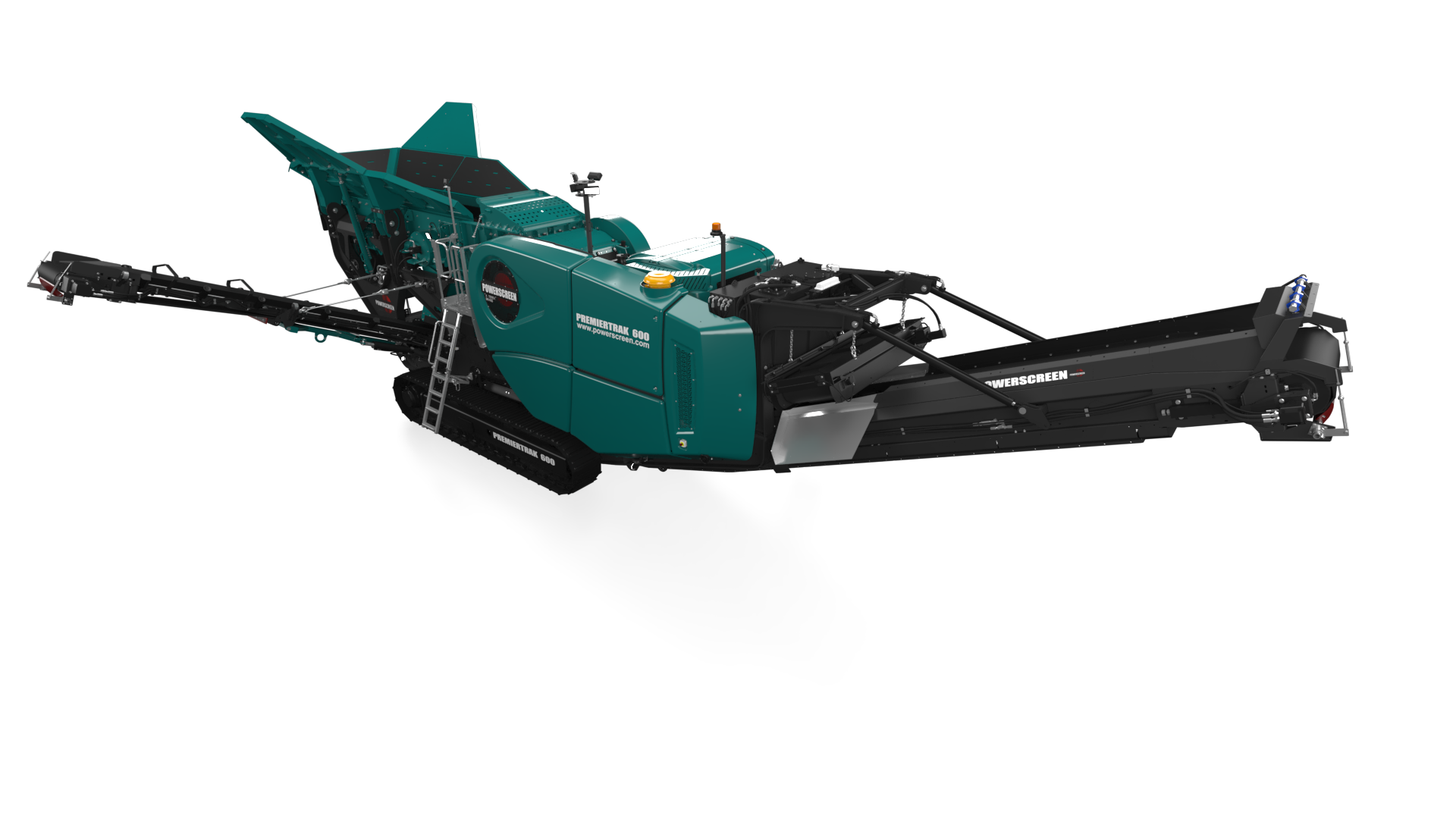

Premiertrak 600

The Powerscreen® Premiertrak 600 range of high performance primary jaw crushing plants are designed for large and medium scale operators in quarrying, demolition, recycling & mining applications.

The range includes the Premiertrak 600 & Premiertrak 600E both equipped with the advanced high performance 1200mm x 820mm Terex chamber. Built for the toughest of applications, the robust construction and modern design of the Premiertrak 600 ensures optimum performance, reliability and efficiency.

download brochure
Inquire Call us
Premiertrak 600
Premiertrak 600
Premiertrak 600
Premiertrak 600
Premiertrak 600
Premiertrak 600
Features & Benefits Options Specifications
  • Output potential of up to 600tph / 661 US tph – depending on material type & crusher settings
  • Ground level quick set-up with hydraulic folding feed hopper with hydraulic locking system
  • Heavy duty wear resistant feed hopper
  • Stepped self cleaning grizzly feeder with under feeder screen
  • Wide bypass chute to optimise material flow
  • Aggressive crushing action with high swing jaw encouraging material entry into crushing chamber
  • Fully hydraulic crusher setting adjustment
  • Excellent under crusher access for removal of wire with hydraulic raise lower product conveyor
  • Angle adjustable product conveyor, lowers for access & transport
  • Low fuel consumption due to highly efficient direct drive system and low engine RPM
  • Easily accessed power unit canopy
  • Modern & user friendly PLC control system with auto start facility
  • Dust suppression system
  • Powerscreen Pulse telemetry as standard
  • Radio remote control as standard
  • Hopper extensions
  • Extended product conveyor
  • Feeder underscreen mesh
  • Under crusher deflector plate
  • Bypass conveyor
  • Magnet
  • Pan feeder & Live pre-screen
  • Long feeder – Pan feeder & Live pre-screen
  • Control panel positive pressurisation
  • Hydraulic water pump
  • Belt weigher
  • Hot/Cold climate oils
  • Hopper capacity: 9.3m³ (12.2 cu. yd.) / 10.8m³ (14.1 cu. yd.) / 14.2m³ (18.6 cu. yd.)
  • Feed opening: 1200mm x 820mm (47”x32”)
  • Product Conveyor Discharge height: 4m (13’ 1”)
  • Tier 3 Caterpillar C13 328kW (440hp)
  • Tier 4F/Stage V Scania DC13 331kW (444hp)
  • Fuel tank capacity: 750 L (198 US G)
  • Total Weight: 68,875kg (151,843lbs)
