Premiertrak 450 Image go back
Crushing

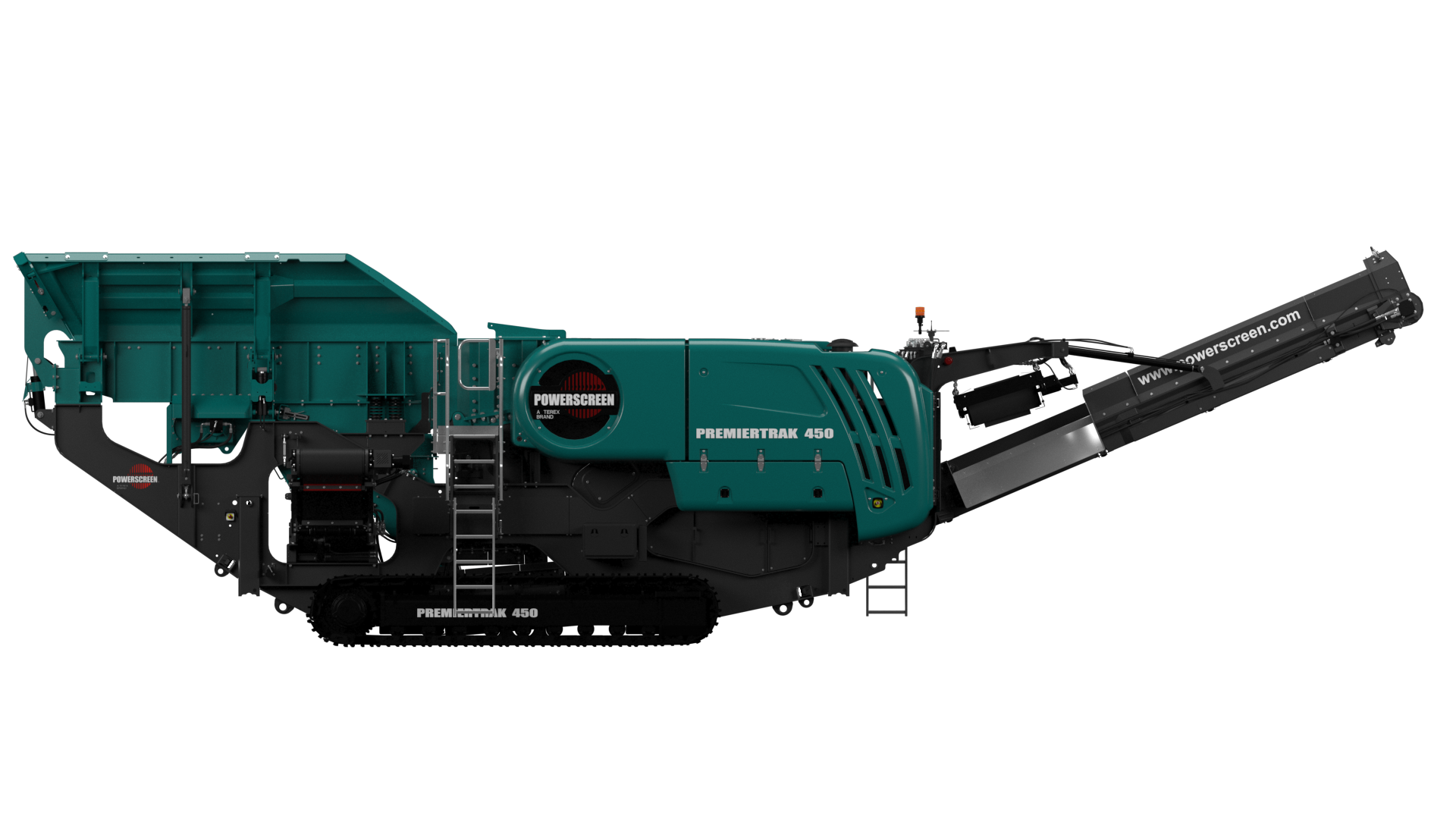

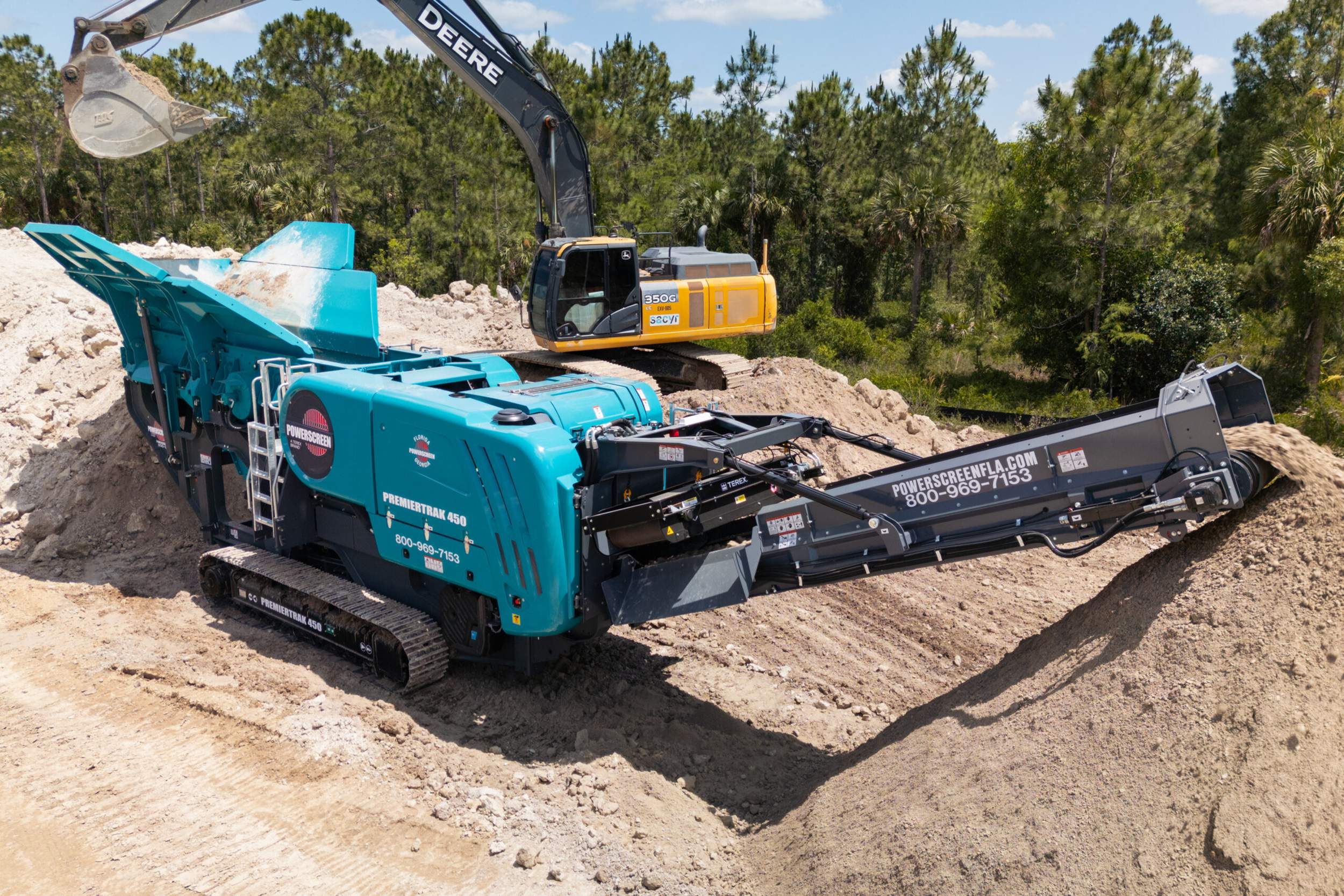

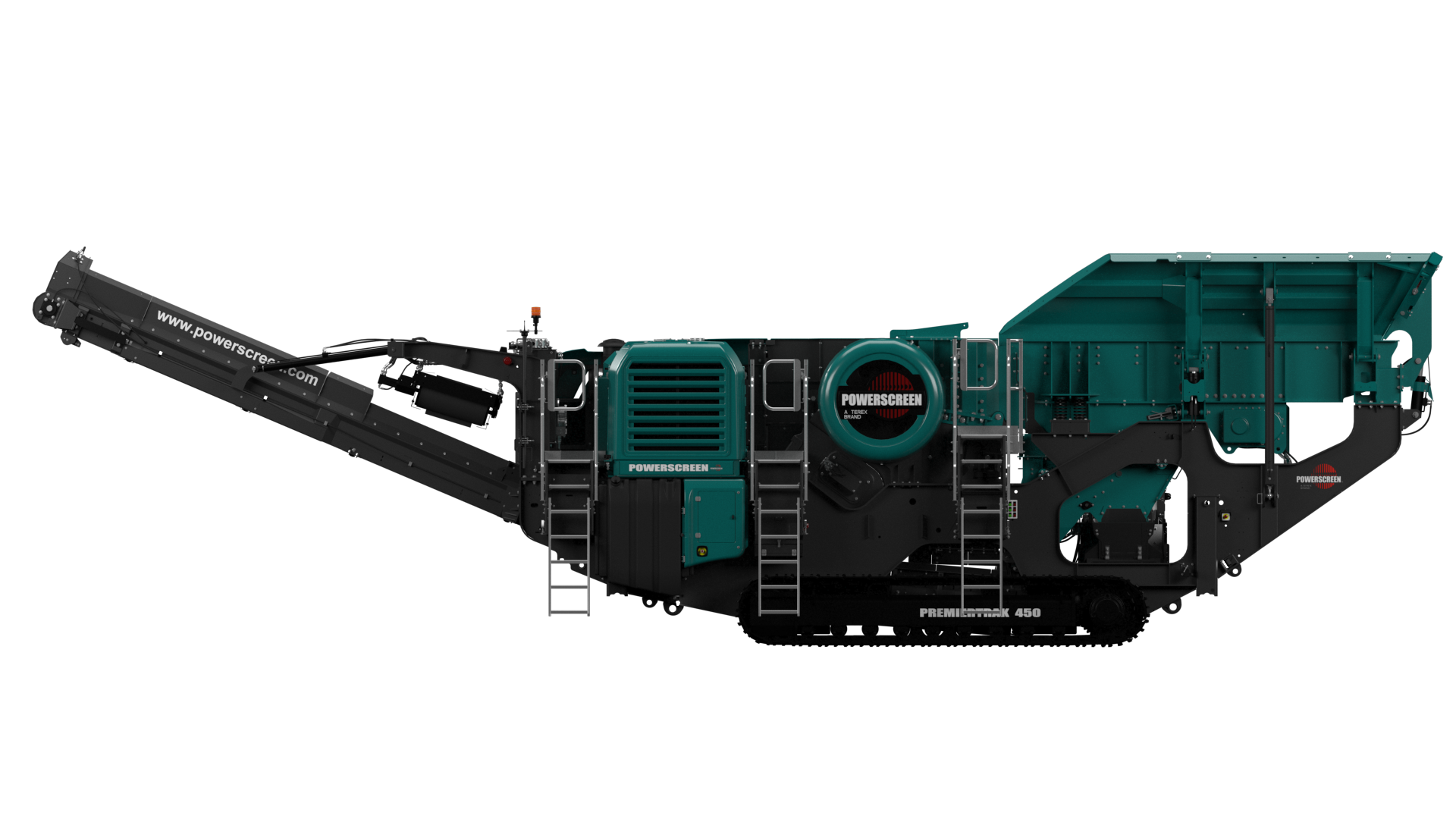

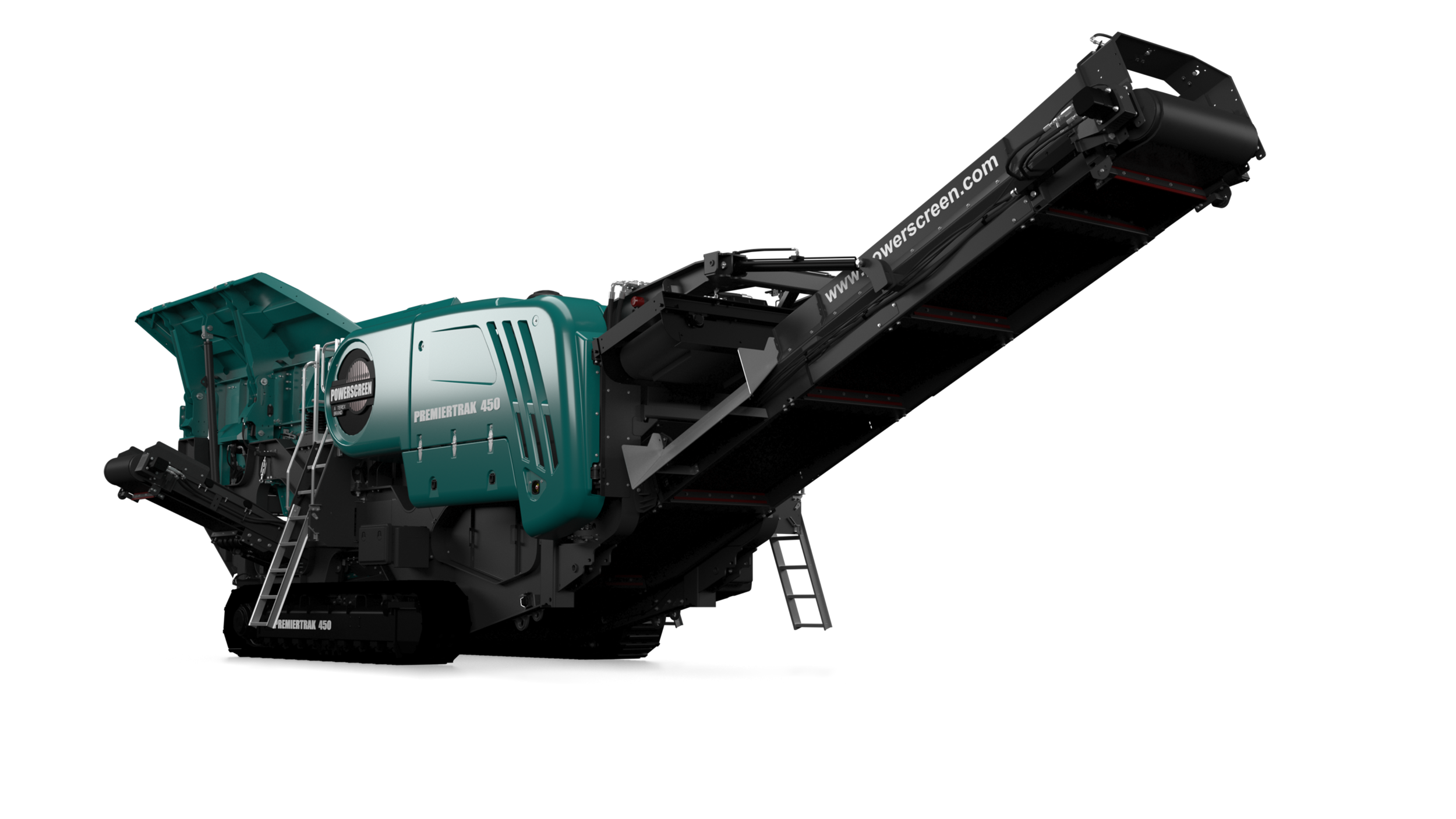

Premiertrak 450

The Powerscreen ® Premiertrak 450 high performance primary jaw crushing plant is designed for medium scale operators in quarrying, demolition, recycling and mining applications. The independent pre-screen option excels in applications with high fines contents by reducing wear rates, increasing throughputs and producing cleaner end products.

download brochure
Inquire Call us
Premiertrak 450
Premiertrak 450
Premiertrak 450
Premiertrak 450
Premiertrak 450
Premiertrak 450
Premiertrak 450
Premiertrak 450
Premiertrak 450
Premiertrak 450
Premiertrak 450
Premiertrak 450
Features & Benefits Options Specifications
  • Output potential of up to 450tph / 504 US tph depending on material type and crusher settings
  • Hydraulic folding feed hopper with hydraulic wedge fixing system
  • Heavy duty wear resistant feed hopper
  • Stepped self cleaning grizzly feeder with underscreen as standard
  • Wide bypass chute to prevent material blockages
  • Aggressive crushing action with high swing jaw encouraging material entry into crushing chamber
  • Hydraulic crusher setting adjustment
  • Crusher unblocking system (optional)
  • Hydraulic raise / lower facility on the product conveyor to aid rebar clearance and maintenance
  • Low fuel consumption due to highly efficient direct drive system
  • Easy access to both sides of the powerunit via walkways
  • PLC control system with auto start facility
  • Remote control via umbilical or radio remote as standard
  • Dust suppression system
  • Single deck post screen offers added machine versatility for customer (optional)
  • Powerscreen Pulse telemetry as standard
  • Independent pre-screen option excels in applications with high fines contents by reducing wear rates, increasing throughputs and producing
    cleaner end products.
  • Hopper Extensions
  • Extended Product Conveyor
  • Single Deck Post Screening
  • Pan Feeder and Live Pre-Screen
  • Bypass Conveyor
  • Extended Bypass Conveyor
  • Magnet
  • Feeder Underscreen Mesh
  • Belt Weigher
  • Under Crusher Deflector Plate
  • Hot/Cold Climate Oils
  • Hopper Capacity: Standard 10m³ (13 cu. yd.)
  • Feed Opening: 1100mm x 700mm (44” x 28”)
  • Product Conveyor Discharge Height: 3.9m (12’ 10”) (standard)
  • Stockpile Volume: 125 cu. yd
  • Tier 3 Power Unit: Caterpillar C9.3 6 cylinder, direct
    injection 230kW (308hp)
  • Tier 4 Power Unit: Scania DC9 202kW (275hp)
  • Fuel Tank Capacity: 500 L (120 US G)
  • Total Weight Tier 3: 49,125kg (108,302lbs) – VGF, HA chamber, standard hopper, bypass conveyor, single pole magnet
  • Total Weight Tier 4F: 50,325kg (110,948lbs) – Pre-screen, HA chamber, standard hopper, Extended bypass conveyor, single pole magnet
