Multistar XL3 Image go back
Screening

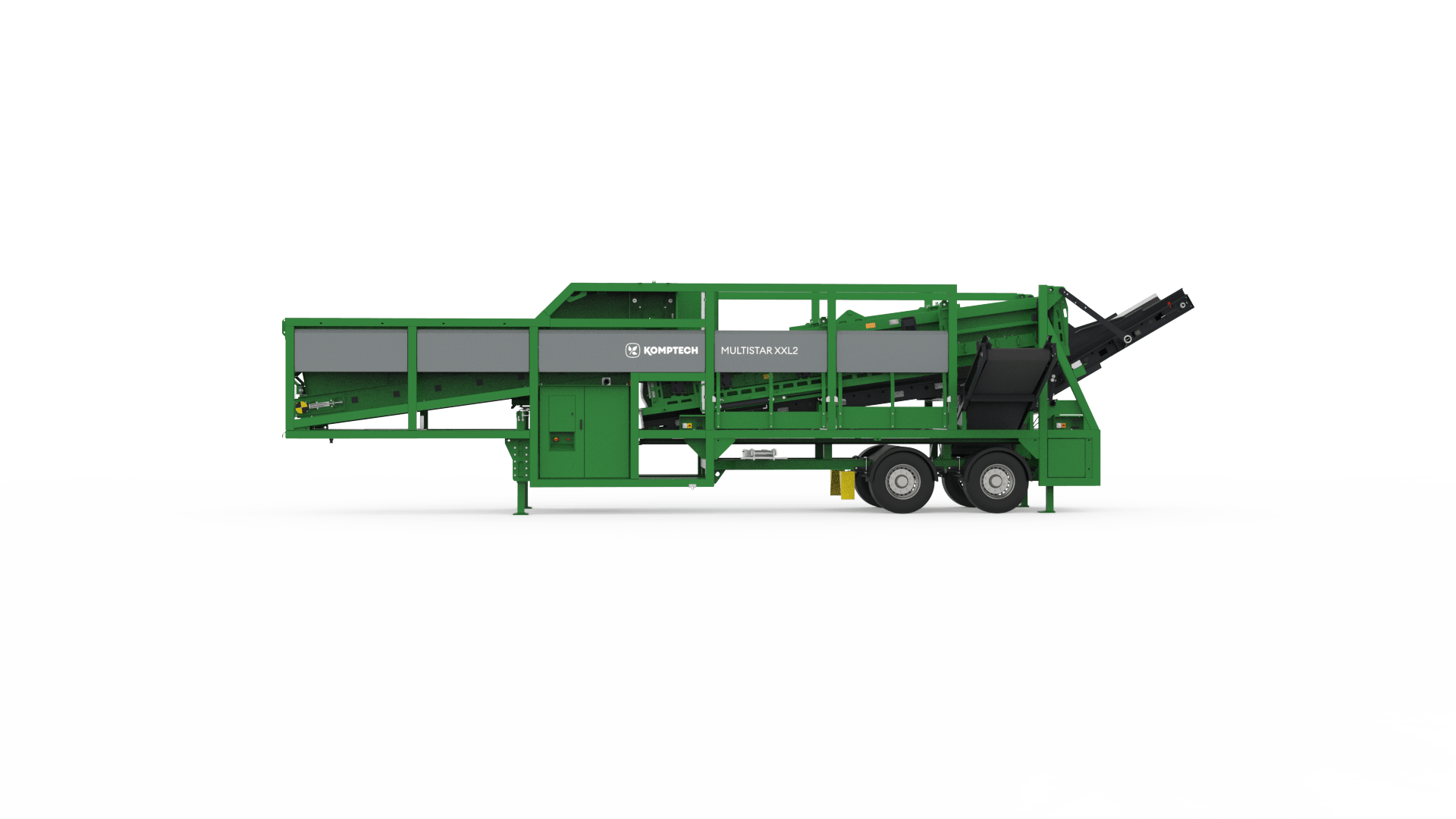

Multistar XL3

The XL3 adds to Komptech’s line of large star screens. Its extra long coarse screen deck is a major benefit where coarse screening is a bottleneck, for example with fresh biomass. It brings a definite increase in throughput.

The high performance and a semitrailer design for easy transport make the XL3 perfect for the international market. The XL3 offers unmatched flexibility through the simple adjustability of the screen cut and market-leading low energy consumption with all-electric drive, using electricity from on-board generator or grid.

download brochure
Inquire Call us
Multistar XL3
Multistar XL3
Multistar XL3
Multistar XL3
Video Icon
Features & Benefits Specifications
  • Output potential: up to 300 (m³/h)
  • Thanks to its design as a semi-trailer, the XL3 can find a vehicle to tow it almost anywhere. The worldwide use of this system simplifies approvals, and gives the Multistar XL3 unlimited mobility
  • If high coarse-grain separation performance is what you need, the extra-large screening surface of the coarse screen deck is a big plus. It improves throughput as well as separation accuracy
  • The screen units are continually cleaned by the most simplest and efficient patented CLEANSTAR cleaning system.
  • Particle size can be controlled by varying the rotation speed of the star shafts. The particle size in the bandwidth specified by the star geometry can be changed within seconds by the control panel
  • 2 or 3 fraction screening: star screen system allows separation into 2 or 3 sizes in a single pass; fractions can be adjusted in seconds via control panel
  • Electric drive consumes up to 75% less energy than diesel-hydraulic systems; operates from generator or mains power
  • Handles mulch, compost, wood, green waste, and even C&D materials
  • Operating Weight: 22 Tons
  • Hopper Volume: 9.2 yd³
  • Fine screen area (m²): 6,8
  • Fine screen width (mm): 1250
  • Fine screen length (mm): 5450
  • Discharge height coarse fraction (mm, 30 °): 3230
  • Discharge height fine fraction (mm, 30 °): 3100
  • Discharge height centre fraction (mm, 30 °): 3500
  • Diesel Generator Output: 64 kW
  • Maximum Throughput: 400 yd3/hr
