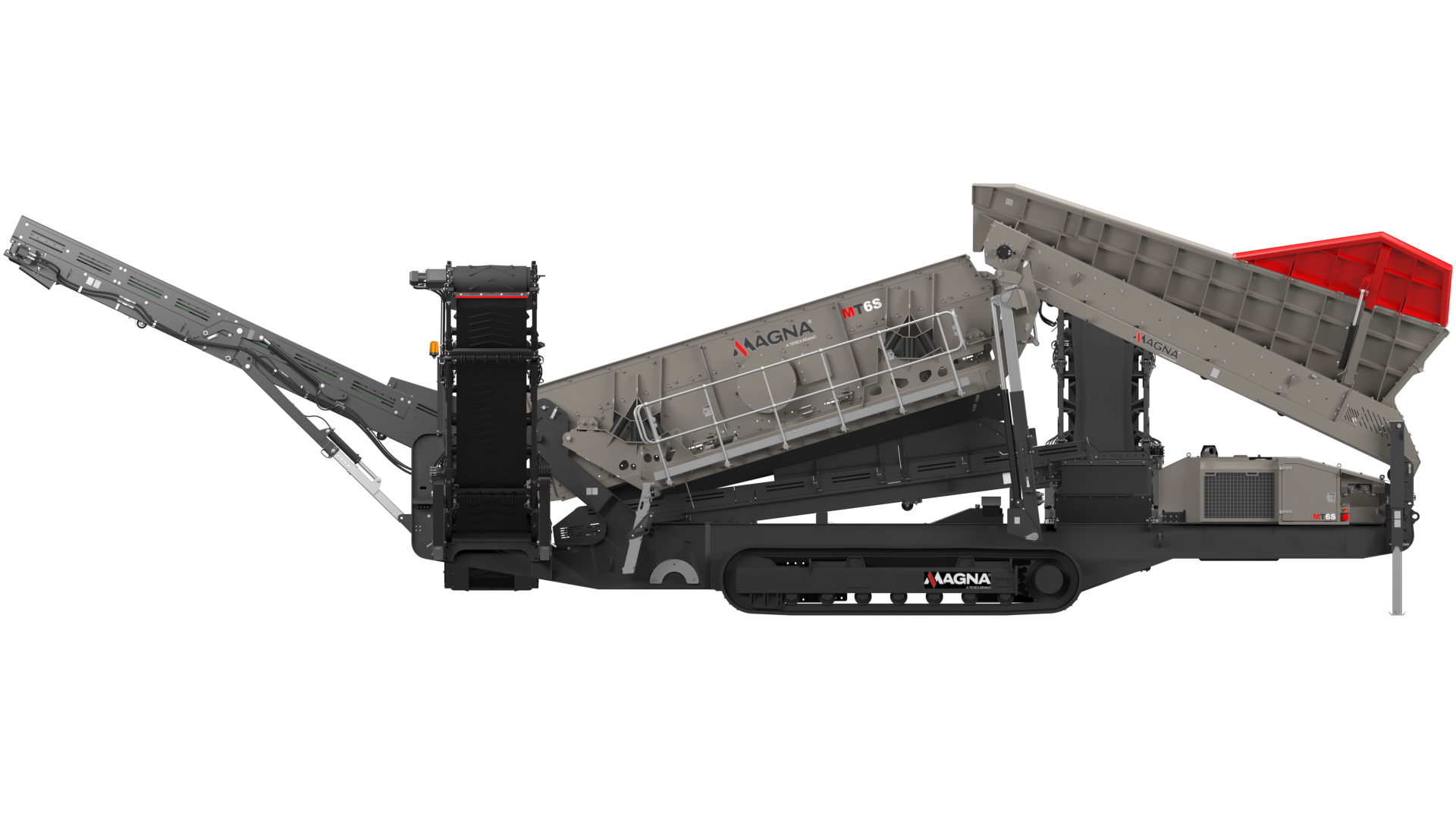

MT6S

• High capacity up to 800 tph / 881 US tph (depending on media sizes & material type)
• Versatile aggressive screen box can be easily adapted to suit many applications
• Modular configuration screen box with 6.1m x 1.8m (20’ x 6’) top deck and 5.5m x 1.8m (18’ x 6’) bottom deck screen
• Screen box angle can be hydraulically adjusted to an angle between 14 – 18°
• Screen box discharge end can be hydraulically raised 600mm (24”) to facilitate efficient and easy media access and changing
• All stockpiling conveyors are hydraulic angle adjustable with hydraulic extending head sections for maximum discharge & stockpile height
• Apron feeder angle adjustable, lower position to accommodate crusher feed, high position provides reduced feeder incline angle when operated in direct feed mode from excavator/loader

Screen media – top deck

• Tines in top deck (40/55/65/75/100/125/150mm) Max. piece size not to exceed 650mm³, based on a Material density of 1,600kg/m³
• Top deck abrasion resistant punch plate (35/40/50 /60/75/85/100/125/150mm) Max. piece size not to exceed 750mm³, based on a Material density of 1,600kg/m³
• Top deck heavy duty Bofar bars (75/100/125/150mm) (Check Leadtime – Contact Factory) – Max. piece size not to exceed 750mm³, based on a Material density of 1,600kg/m³
• Heavy duty fabricated modular punch plate (80/100/150mm)(200/250/300mm only on last 2 sections)Max piece size not to exceed 750mm³, based on a material density of 1,600kg/m³. Note: Mesh frame removed for this configuration
• Top deck mesh (20-150mm) – Max. piece size not to exceed 750mm³, based on a Material density of 1,600kg/m³

Screen media – bottom deck

• Cascade fingers in bottom deck 20/30/40/50/60/75
• Bottom deck mesh/ speedharp (10-60mm)
• Hydraulic tensioning (bottom deck screen end tensioned mesh) • Bottom deck punch plate (Side Tensioned 10 -100mm)
• Chain blanket for over the screenbox
• Plain belt for middle grade conveyor
• Chevron belt for fines conveyor
• Radio remote control of tracks
• 68 grade hydraulic oil
• Kit to provide ability to blend Oversize and Middle grade products
• Hydraulic driven cleaning brush for Pan feeder
• 10mm abrasion resistant plate lined hopper
• Hydraulically folding Hopper extensions

• Screen size: 6,100mm x 1,830mm (20’ x 6’)
• Hopper Capacity: 10m³ (13.08 yd³)
• Feed height: 3.27m – 4.16m (10’ 9” – 13’ 8”)
• Feed in width: 1.7m – 2.48m (5’ 6” – 8’ 1”)
• Oversize conveyor discharge Height: 4.55m (14’ 11”)
• Stockpile capacity: 140.1m³
• (183.2yd³) @ 24°
• Fines conveyor standard discharge height: 4.5m (14’ 09”)
• Stockpile capacity: 136m³ (178yd³) @ 40°
• Tier 3 Equivalent: Caterpillar C7.1 LRC Engine Power: 151kW (202hp) 2200 rpm
• Tier 4F / Stage IV: Caterpillar C4.4 Engine Power: 129kW (173hp) 2200 rpm
• Hydraulic Tank: 780 litres / 172 UK gal / 206 US gal
• Fuel Tank: 597 litres / 131 UK gal / 158 US gall
• Total Weight: 48,000kg (105,821lbs)
