Crushing

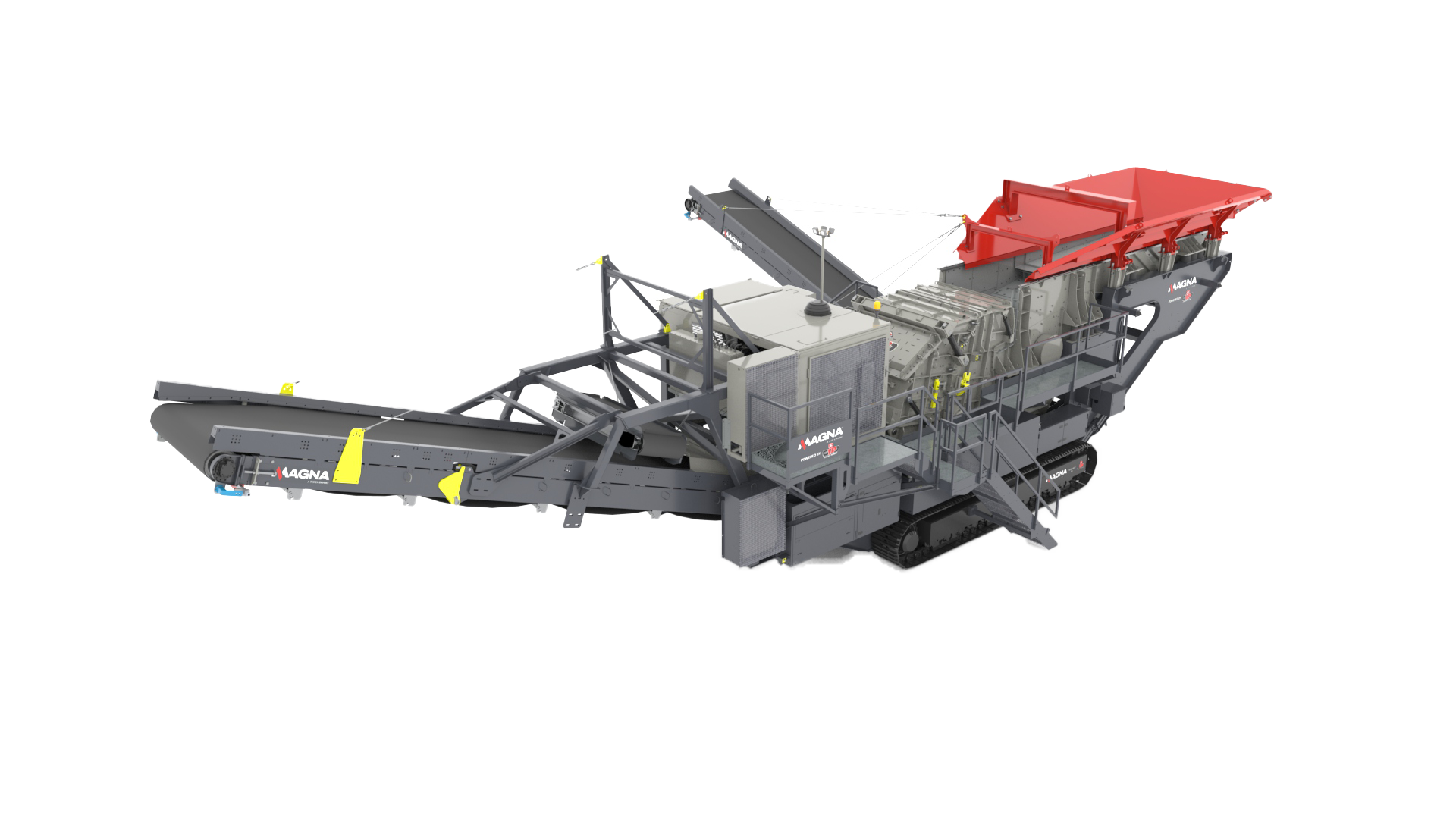

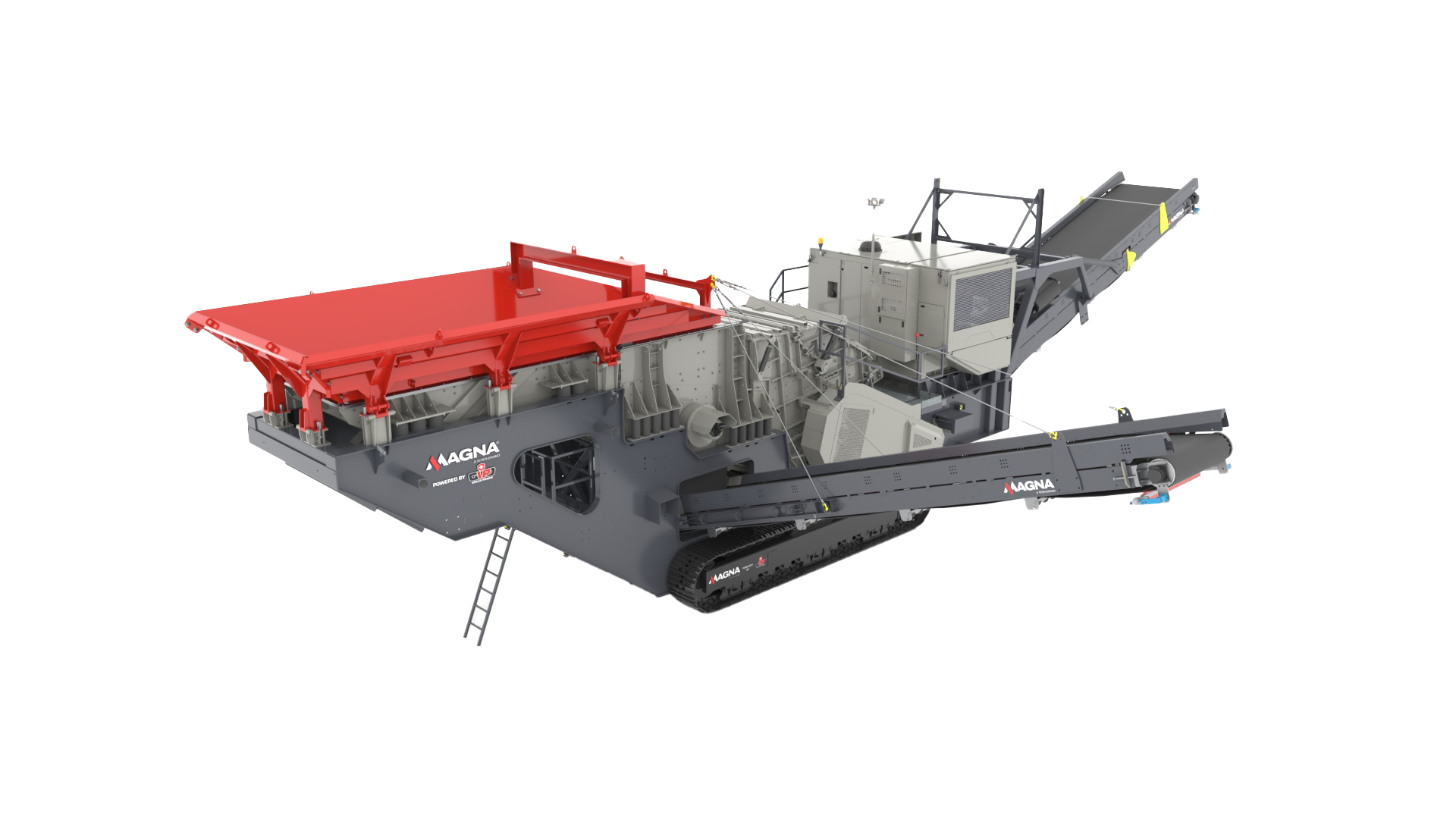

MT170I

The MAGNA MT170I impact crusher is the largest offering in the range with unrivalled performance for high tonnage applications. The high productivity, ease of maintenance and operation makes the machine an ideal solution for large scale producers in, quarrying and mining applications. The machine is built around a robust hydraulic drive 1300mm or 1400mm x 1700mm (51”/ 55” x 66”) impact chamber crusher.

download brochure
MT170I
MT170I
MT170I
MT170I
  • Output potential: Up to 1100tph / 1232 US tph depending on application
  • Hopper capacity: 9m³ (11.8 yd³) / 18m3 (23.5 yd³)
  • Hopper body: Abrasion resistant feed hopper with optional extension available
  • Crusher inlet: 1670mm x 925mm (66’’ x 36’’)
  • Rotor diameter: 1300mm (51’’)
  • Rotor diameter optional: 1400mm (55’’)
  • Tier 3 / Tier 4F / STAGE V: CAT C18 / SCANIA DC16 (up to 565kW / 750hp)
  • Product conveyor width: 1800mm (71’’)
  • Discharge height: 3.8m – 6.0m (12’ 5’’ – 19’ 7’’)
  • Weight operating: 87,000 – 96,000kg (191,802 – 211,643Ibs)
  • Weight transport: 74,000 – 90,000kg (163,142 – 198,416Ibs)
