MT150I SR Image go back
Crushing

MT150I SR

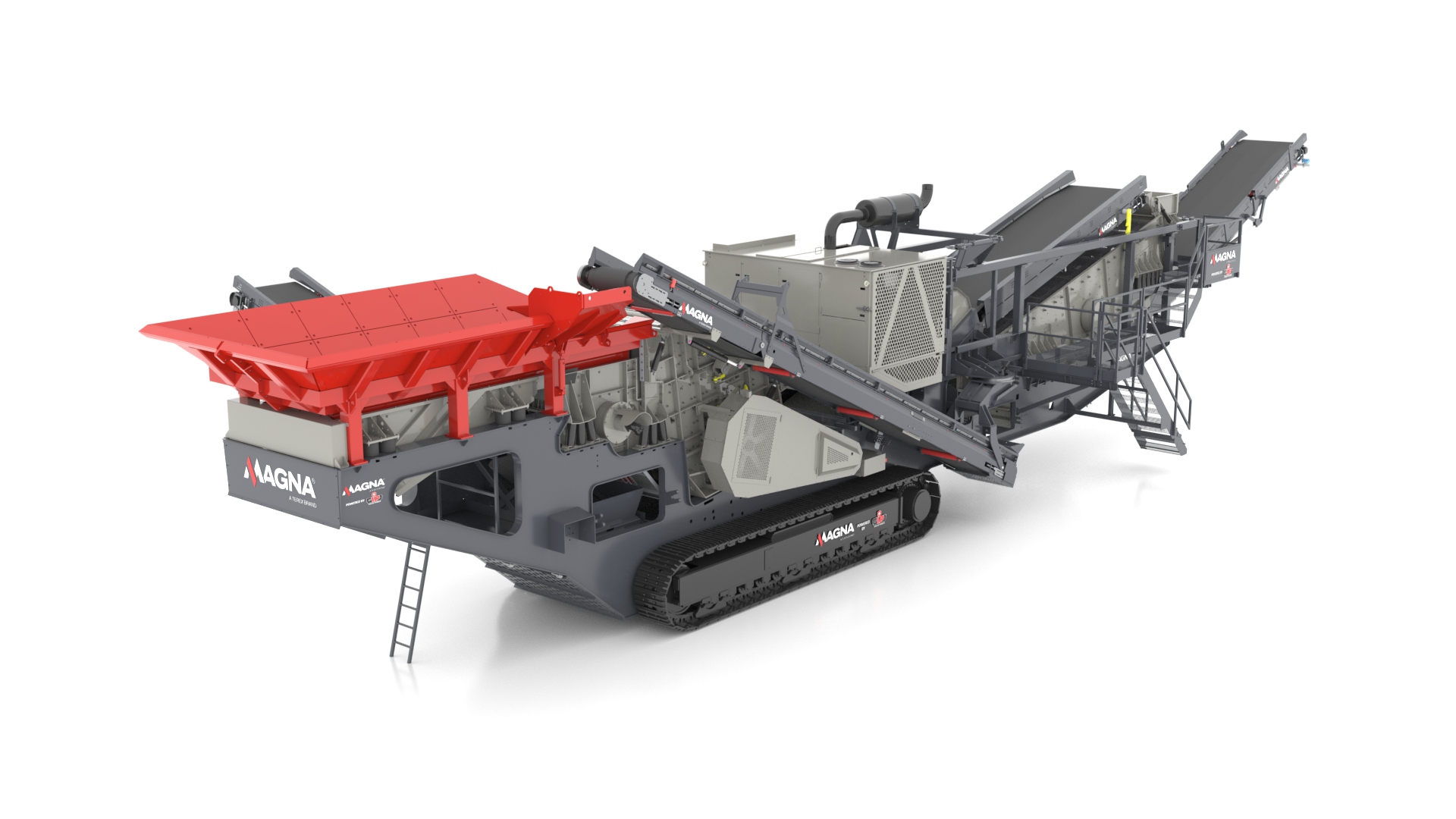

The MAGNA MT150I SR impact crusher sets the standard when it comes to increased performance requirements to meet customer’s needs with post screen options of 1, 2 and 3 decks of various sizes, complemented by a range of configurable conveyor options. The high productivity, ease of maintenance and operation makes the machine an ideal solution for large scale producers in recycling, quarrying and mining applications. The machine is built around a robust hydraulic drive 1300mm x 1500mm (51” x 60”) impact chamber crusher.

download brochure
Inquire Call us
MT150I SR
MT150I SR
MT150I SR
MT150I SR
Specifications
  • Output potential: Up to 800tph / 881 US tph depending on application
  • Hopper capacity: 8.3m³ (10.46 yd³) / 15m3 (19.61 yd³)
  • Crusher inlet: 1500mm x 925mm (59’’ x 36’’)
  • Rotor diameter: 1300mm (51’’)
  • Screen type: 2 or 3 deck options
  • Screen size: 6500mm x 2000mm (21’ 4’’ x 6’ 6’’)
  • Tier 3 / Tier 4F / STG V: CAT C18 / SCANIA DC16 (up to 565kW / 750hp)
  • Product conveyor width: 1600mm (63’’)
  • Under screen conveyor: 1600mm (63’’)
  • Discharge height final product conveyor: 3.5m – 5.2m (11’ 5’’ – 17’)
  • Weight operating: 100,000 – 220,000kg (220,462 – 485,016Ibs)
  • Weight transport: 72,000 – 90,000kg (158,732 – 198,416Ibs)
