Crushing

Metrotrak

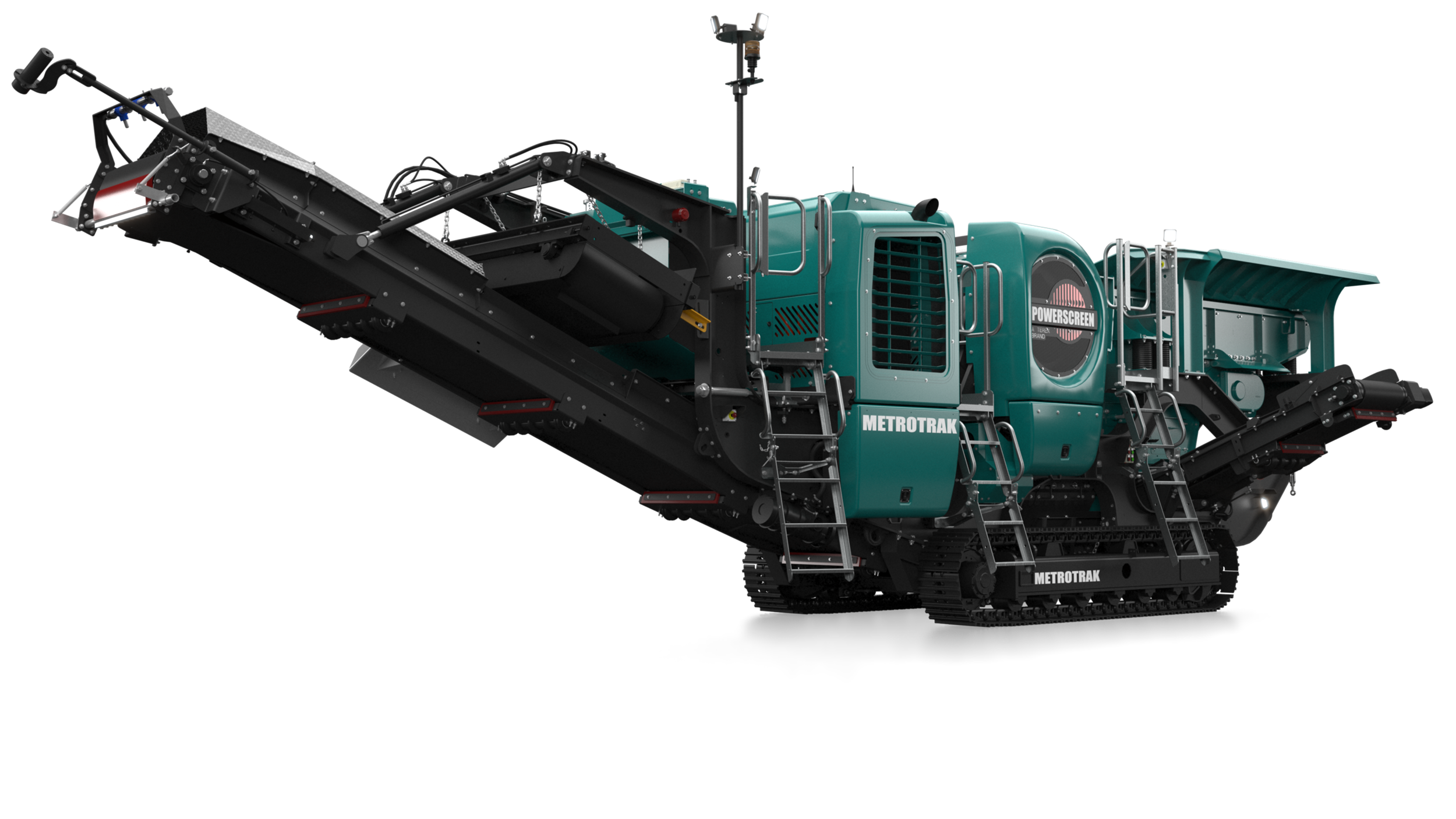

The Powerscreen ® Metrotrak is a compact, high performance track mobile jaw crushing plant featuring the “M” series single toggle jaw crusher. With an aggressive crushing action & a high output even at tight settings, the Metrotrak is is ideally suited for operators on the mining, quarrying and recycling industries, especially those working in urban locations or where space is restricted.

The new Metrotrak builds on the features of the Powerscreen Metrotrak HA by improving access for chamber wedge removal, fully tunnelled product conveyor, easy access product conveyor tail drum adjust, new compact design bypass chute with improved internal clearances & the option to fully lower product conveyor to clear blockages & aid maintenance.

download brochure
Inquire Call us
Metrotrak
Metrotrak
Metrotrak
Metrotrak
Metrotrak
Metrotrak
Metrotrak
Metrotrak
Features & Benefits Options Specifications
  • Output potential of up to 200tph / 220 US tph – depending on material type & crusher settings
  • Heavy duty fabricated chassis & track frame
  • Heavy duty wear resistant feed hopper
  • Stepped self cleaning grizzly feeder
  • Hydraulic setting adjustment
  • Fully skirted up to magnet
  • Grizzly bypass & fines chute
  • Fixed hopper as standard
  • Dust suppression system
  • Uncomplicated design with simple operation
  • Efficient direct drive
  • Remote control via umbilical
  • Easily set up
  • Chamber unblocking system (optional)
  • Powerscreen Pulse telemetry system as standard
  • Radio remote control as standard
  • Magnet
  • Bypass Conveyor
  • Belt Weigher
  • Chamber Unblocking System
  • Underscreen Media
  • Control Panel Positive Pressurisation
  • Hot/Cold Climate Oils
  • Hopper capacity: 3.6m³ (4.7 cubic yards)
  • Feed opening 900mm x 600mm (35” x 24”)
  • Product Conveyor: 9′ 6″ discharge height
  • Tier 3 Engine: Stage lllA Constant Speed:
    John Deere 4045 126 kw (169hp)
  • Tier 4 Engine: Caterpillar C4.4 129kW (173Hp)
  • Fuel tank capacity: 400 L (106 US Gal)
  • Total Weight Tier 3 : 28,200kg (62,170lbs) – VGF, bypass conveyor, twin pole magnet
  • Total Weight Tier 4F : 28,000kg (61,729lbs) – VGF, bypass conveyor, twin pole magnet
