Screening

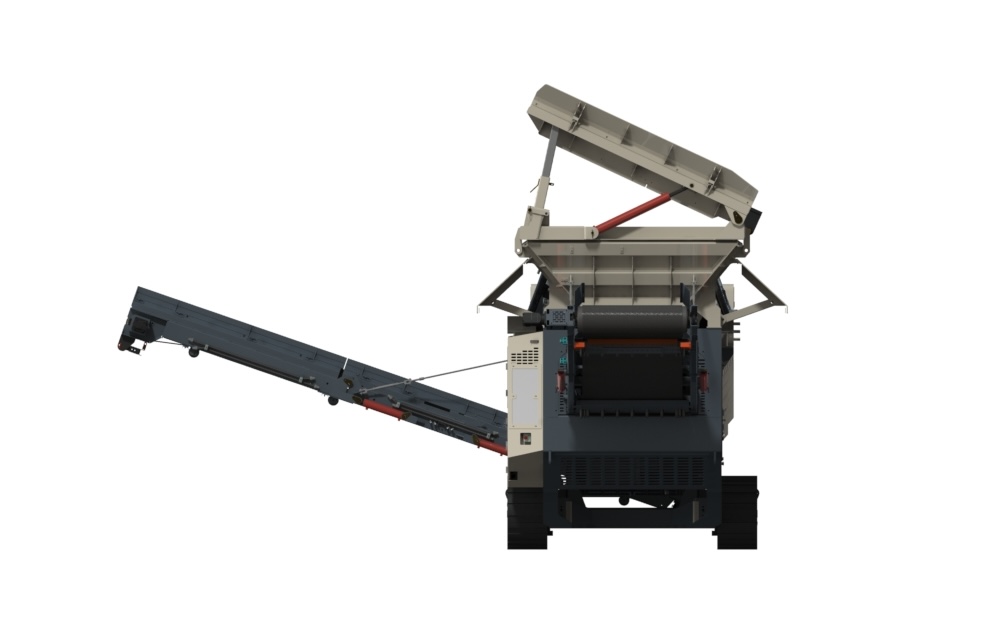

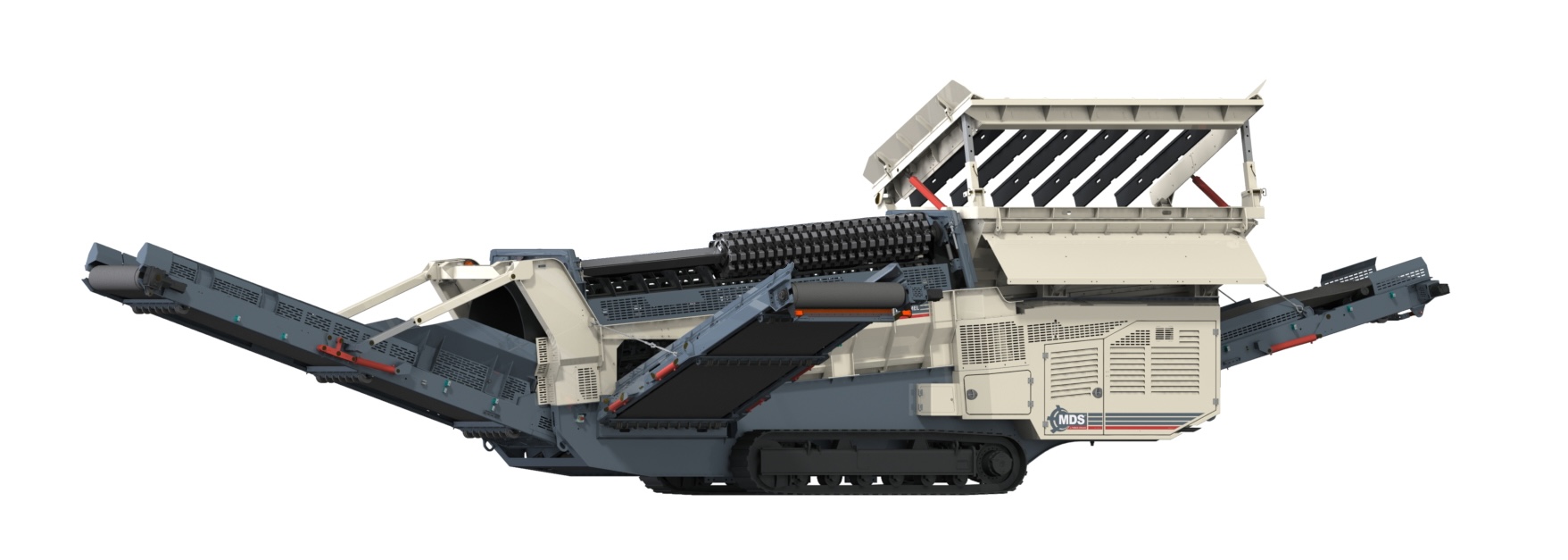

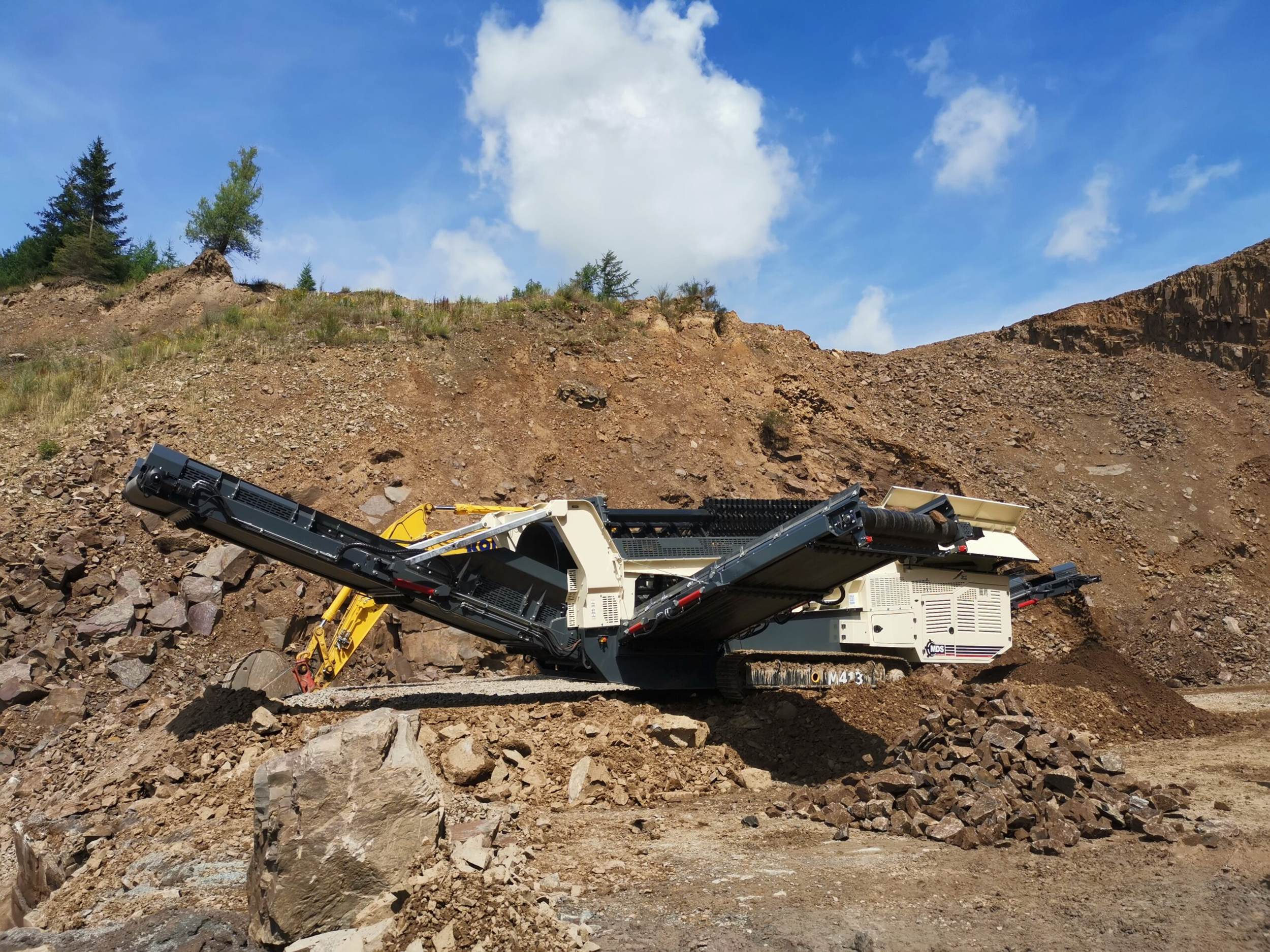

MDS M413

The heavy-duty M413 trommel provides an ideal screening solution for the toughest of applications. With its ability to process material up to 600mm (24”) in size this unit can be used to screen sticky overburden, construction + demolition waste, rip-rap and much more. The clever chassis design and hydraulic folding product belts make this unit a breeze to transport from one site to another. The M413 utilizes a 2-section drum allowing the MDS drum cleaner to be used in the fines section this helps keep the openings clean in the harshest conditions, while a bolt-in / boltout screen design in the mid-product offers improved flexibility in material sizing.

download brochure
MDS M413
MDS M413
MDS M413
MDS M413
MDS M413
MDS M413
MDS M413
MDS M413
  • Output Potential: 300 tph
  • Tough On All Material Types: handles materials up to 600 mm (24″), including overburden, rip‑rap, sticky clay, demolition waste, and limestone
  • Splits feed into oversize, mid-product, and fines, with dedicated conveyors; mids and fines use customizable screens
  • Welded or Changable Screens
  • Hydraulic Variable Speed Drive
  • Hydraulic Push Feeder
  • All terrain heavy duty tracks
  • Tipping Grid with openings of 150mm (6”) – 450mm (18”)
  • Full Guards & Pull Chords – Oversize belt
  • Full Guards & Pull Chords – Mid-Product belt
  • Full Guards & Pull Chords – Fines Belt
  • Hopper Deflector Plates
  • Grade 68 Hot Climate Oil
  • Wireless Remote Control
  • Hopper Capacity: 4m³ (5.23 cu. yards)
  • Feeder Width: 1m (3’ 4”)
  • Feeder Length: 3.15m (10’ 4”)
  • Fines Conveyor: 2.45m (8’0″) discharge height
  • Mid-Product Conveyor: 2386mm (7′ 8″) discharge height
  • Oversize conveyor: 2.57m (8’ 5”) discharge height
  • Tier 4 F Stage 5 Dual Cert: CAT 2.2. 55kW (74HP)
  • Fuel Tank: 170 Litres (44 US Gallons)
  • Weight: 52,910 lb (24 tonnes)
