Washing

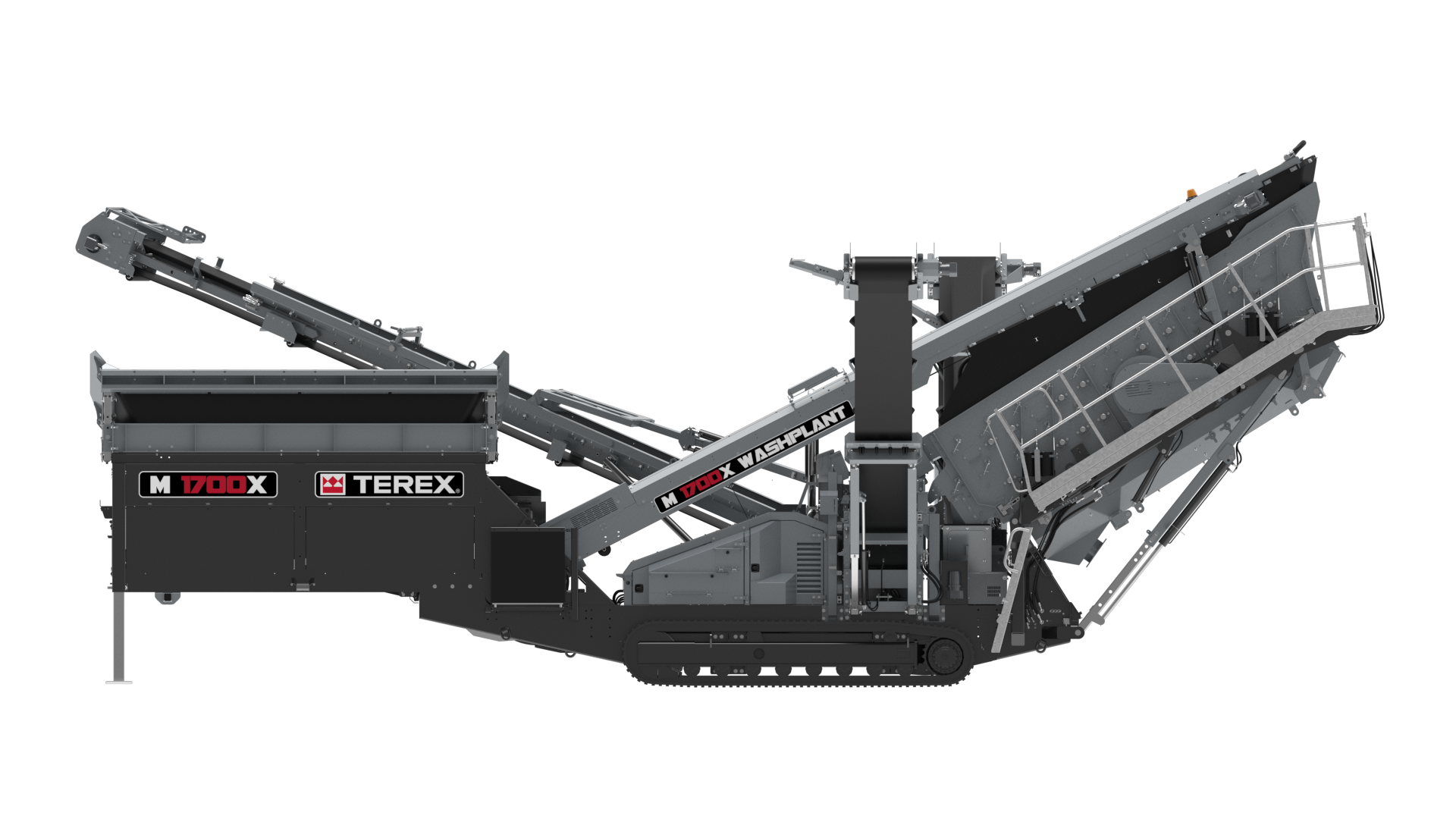

M1700

The improved M1700 features a new integrated high fluidisation wash box to maximise deck efficiency, increase media wear life and have an adjustable spray system. It also boasts increased standard features, including a standard hydraulic raise and lower for quicker service access, standard hydraulic tensioning, and one-piece catchbox for easy machine reconfiguration.

download brochure
Inquire Call us
M1700
M1700
M1700
M1700
M1700
M1700
Features & Benefits Options Specifications
  • High capacity (depends on mesh sizes and material type)
  • Quick set up time typically under 15 minutes
  • Maximum mobility with heavy duty, low ground pressure crawler tracks
  • Removable heavy duty pendant remote control system
  • Optional radio control system available
  • High performance hydraulic system
  • Angle adjustable tipping grid with radio control double acting tipping grid rams
  • Optional low profile single or double deck vibrating grid option with remote control tipping
  • Aggregate washing
  • Split bottom deck to produce two grades of sand
  • Hydraulic folding conveyors
  • Hydraulic screen angle adjustment
  • Screen walkway and access ladder
  • 2 or 3 deck
  • 12ft 2 deck vibrating grid
  • Vibrating grid discharge chute
  • Crusher feed chute
  • Anti-roll back on main conveyor
  • Extended re-circulation oversize auxiliary conveyor
  • Dual power (can be operated electrically)
  • Quick release wedge screen tensioning system for top and middle deck
  • Bonded rubber wearplate in washbox
  • Sealed pipes with bonded rubber lining
  • 14’ x 5’ single or twin grade catchboxes
  • Rubber screens
  • Wheel or track mobile
  • Roll-in bogie prepared
  • Roll-in bogie equipped
  • Radio control tracks
  • Prepared TUV chassis
  • Auto lubrication system
  • Dry screen tail conveyor
  • 2 bearing high performance screenbox
  • Width of screenbox 1.5m (5’)
  • Length of screenbox 4.88m (16’)
  • Weight of screenbox: 3500kg (7700lbs)
  • Adjustable 5 nozzle spray bar wash box
  • Side conveyors: 4.7m (15’ – 5”) stockpile height
  • Stockpile volume of 175m³
  • Auxiliary conveyor: 115m³ stockpile volum
  • 3 deck screen box: 18 steel spray bars split into 6 bars per deck
  • 2 deck screen box: 11 steel spray bars split into 6 bars top deck, 5 bottom
  • Tier 3 rated Diesel Engine with a power output of 74kW (100hp) @ 2200rpm
