Crambo 3400 Image go back
Grinding/Shredding

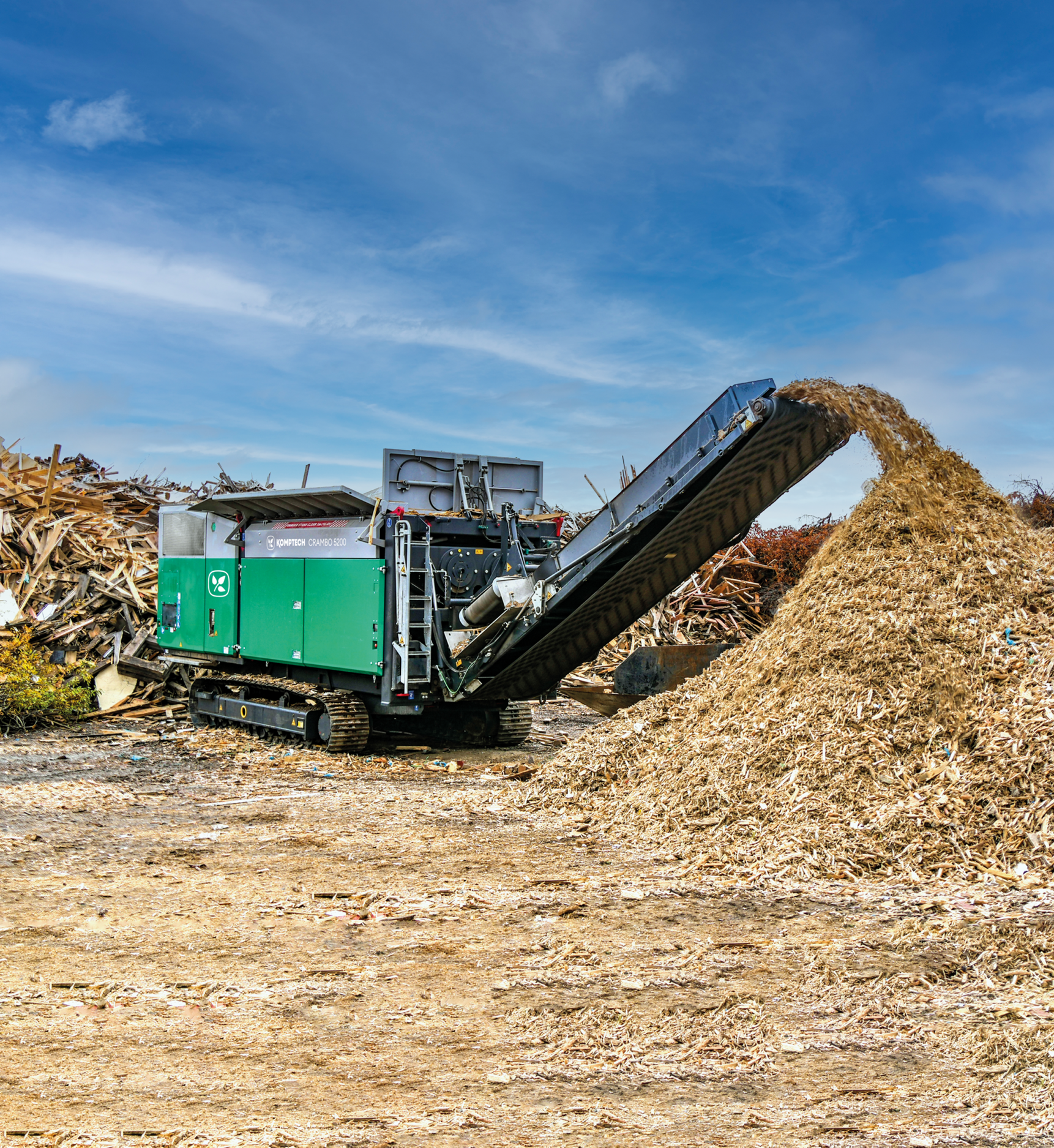

Crambo 3400

The Crambo is one of the best machines there is for shredding all types of wood and green waste. Two slow-running drums with shredding teeth minimize fine particle and noise/dust emissions, and resist contraries. The Crambo enables easy adjustment of the output particle size, by simply exchanging the screen basket to instantly change the particle size. In addition to the proven hydraulic drive, there is a mechanical drive version for top economy. A modern operating console and convenient access to all maintenance points make everyday work very easy.

download brochure
Inquire Call us
Crambo 3400
Crambo 3400
Crambo 3400
Crambo 3400
Crambo 3400
Crambo 3400
Features & Benefits Options Specifications
  • Output Potential: up to 45 t/h
  • High throughput with general-purpose use
  • Aggressive feed with long, counter-rotating shredding drums
  • Variable particle sizes through simple screen basket change
  • Numerous chassis and equipment options
  • Powerful Caterpillar diesel engines with the latest exhaust scrubbing
  • High-performance cooling system for engine and hydraulics
  • Fully encapsulated engine compartment to reduce noise emissions
  • Extremely large shredding compartment with two aggressive feed drums
  • Shredding drums
  • Cutting unit
  • Teeth
  • Screen baskets
  • Moistering equipment
  • Adjustable overbelt magnet
  • Throughput measurement
  • Loading heights (mm): Hook 2,396 | Trailer 2,997 | Track 2,898
  • Drum length: 2,820 mm
  • Drum diameter: 610 mm
  • Drum rpm: max. 35
  • Discharge heights (mm, 10°-35°): Hook 1,520-3,842 | Trailer 1,929-4,250 | Track 1,830-4,151
  • Engine: Caterpillar 250kW/340HP
  • Weight: Hook 21 t | Trailer 23.3 t | Track 24.4 t
