Colt 1600

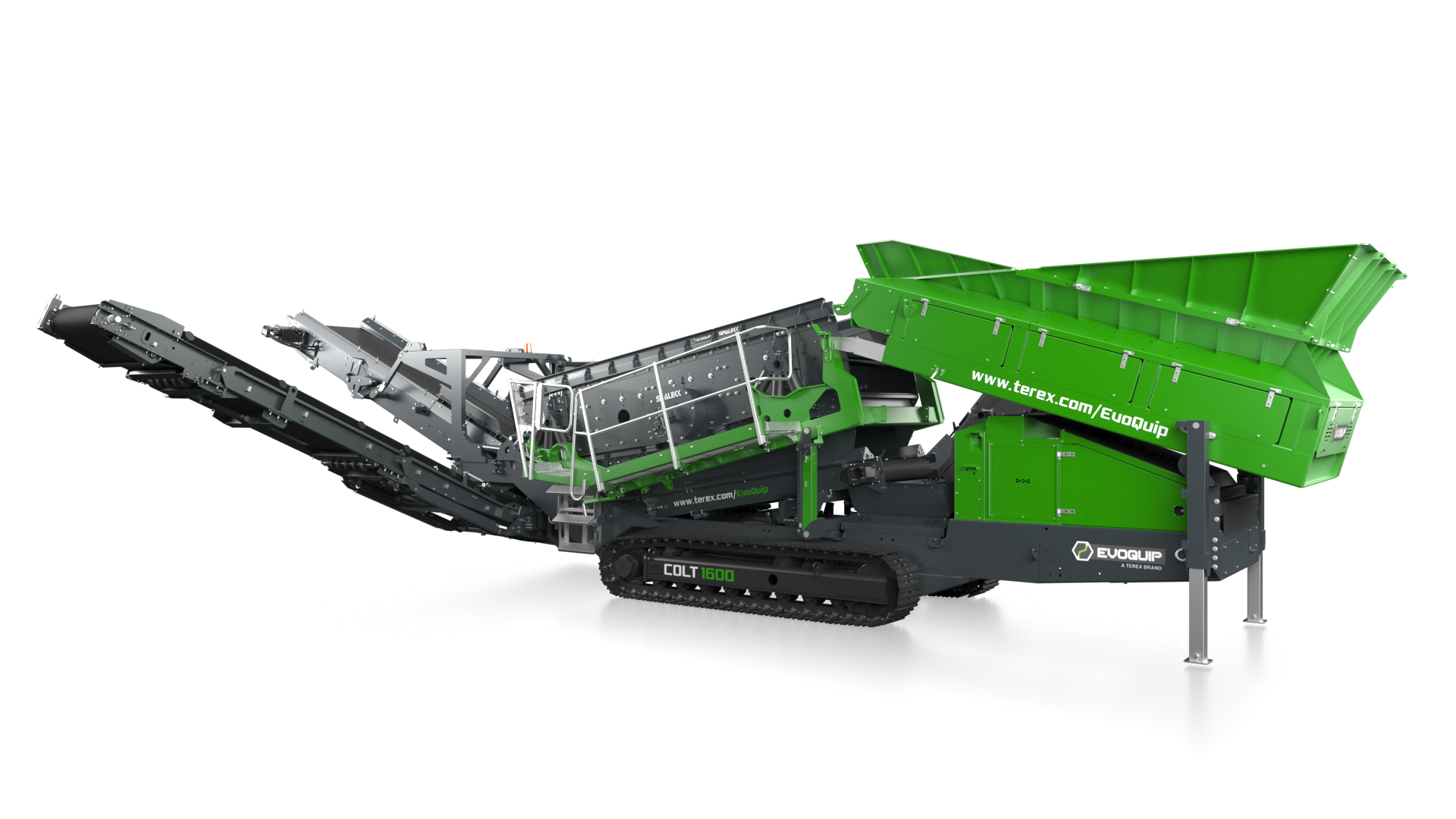

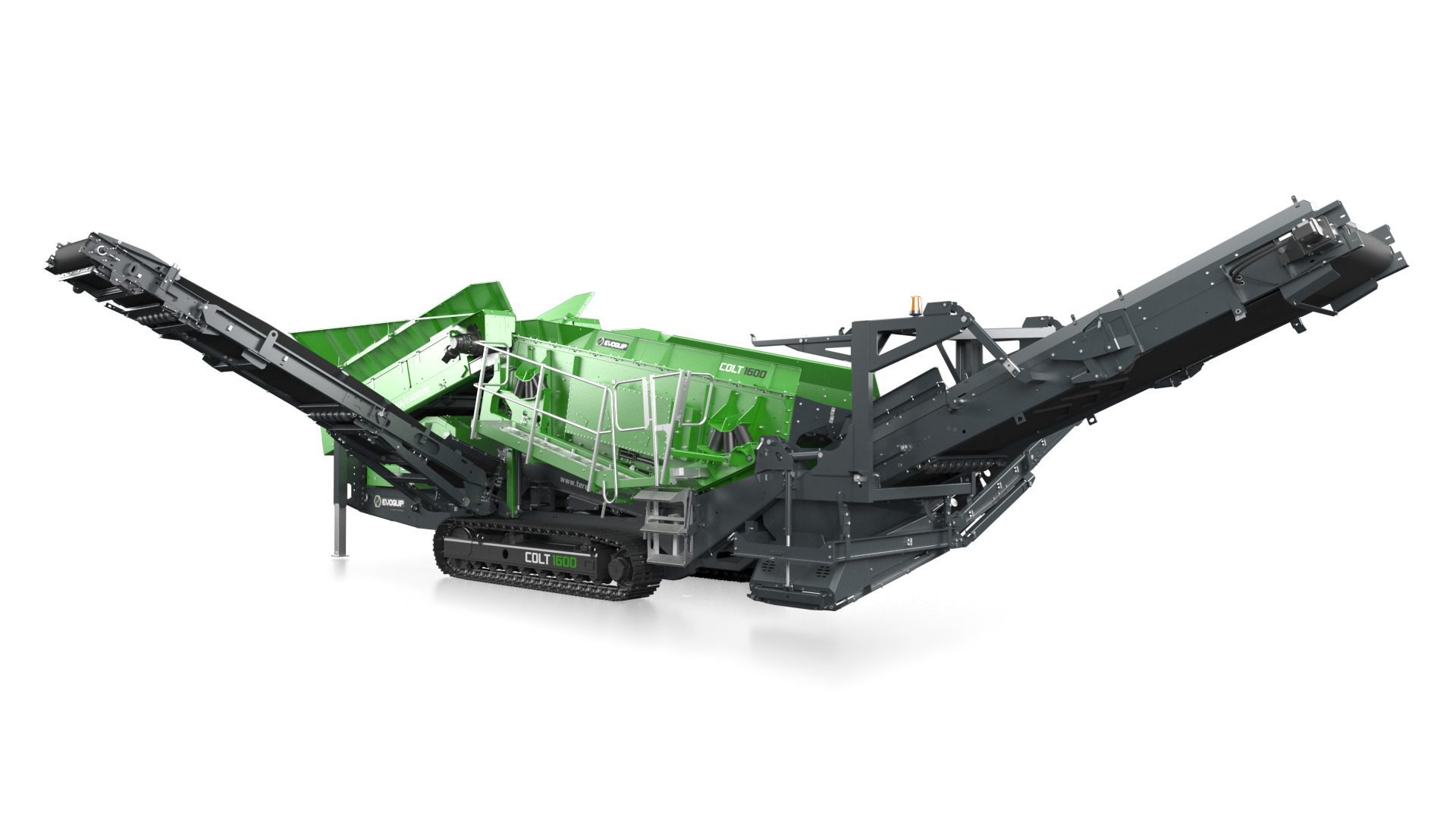

The high capacity, versatile heavy duty Colt 1600 Screener Machine is designed to work in primary and secondary screening applications. With the single, triple shaft and Spaleck screen box options the applications are endless. The Colt 1600 is available with dual power technology giving flexibility to be powered by an external power supply or the standard on-board engine.

Flexibility is enhanced with configurable conveyor options and two way split conversion. Tall discharge heights can be improved further with optional telescopic conveyors and the wide array of screen media available makes this the perfect multi-purpose machine.

download brochure
Inquire Call us
Colt 1600
Colt 1600
Colt 1600
Colt 1600
Colt 1600
Colt 1600
Video Icon
Features & Benefits Options Specifications
  • Output potential of up to 600tph / 661 US tph
  • Configurable layout and ability to convert to 2 way split
  • Reversible side conveyors/configurable discharge
  • Variable screen throw and angle
  • Variable speed on feeder, fines, midgrade and oversize as standard
  • Heavy duty apron feeder, hightorque gearbox and motor drive
  • Versatile double deck screen providing total screening area of 14.4m²
  • Dual Power – 2 x37kW IE3 electric motors c/w hydraulic gear pumps and electrical control panel allowing machine to run in either Diesel or Electric mode
  • 10mm abrasive resistant plate lined hopper
  • Hydraulic Driven cleaning brush for pan feeder
  • Impact bars full length of tail (oversize conveyor)
  • Extended conveyor (must select fines and mids together)
  • Magnetic drive drum (only available on STD conveyor not telescopic side conveyor)
  • Conveyor Configured for discharge (this will reverse both fines and mids) Fines std RHS – changed to LHS / Mids std LHS changed to RHS
  • 2 way split
  • Various Engine Options
  • Hybrid (Dual Power)
  • Cold Climate oils
  • Chain Blanket over screen box
  • Hydraulic tensioning (bottom deck screen mesh)
  • 300mm chassis riser for Standard & Spaleck Variant (note riser is 200mm for triple shaft machine)
  • Stockpiler drive (Note Mids and tail conveyor combined in series for this option)
  • Radio Remote
  • Hopper: 8.5m³ (11.12yd³) capacity
  • Screenbox: 4.8m (16’) x 1.5m (5’), double deck screen
  • Fines conveyor: 4m (13’1”) discharge height
  • Tail conveyor: 3.6m (11’10”) discharge height
  • Midgrade conveyor: 3.4m (11’2”) discharge height
  • Tier 3: CAT C4.4 83kW (111.3hp) @1800rpm (standard on SS& Spaleck)
  • Tier 3: CAT C4.4 98kW (131HP) @1800RPM (standard on TS)
  • Stage 3A CAT C4.4: 98kW Constant speed 98kW (131 HP) @1800RPM (optional Single Shaft/Spaleck/TS)
  • Tier 4 Final: CAT C4.4 82kW (110hp) @1800rpm (optional on Single Shaft / Spaleck)
  • Tier 4 Final / Stage IV CAT C4.4 97kW (130hp) @1800rpm (optional on TS)
  • Weight: (standard machine): 20,750Kgs (45,745lbs)
