CM500 Image go back
Grinding/Shredding

CM500

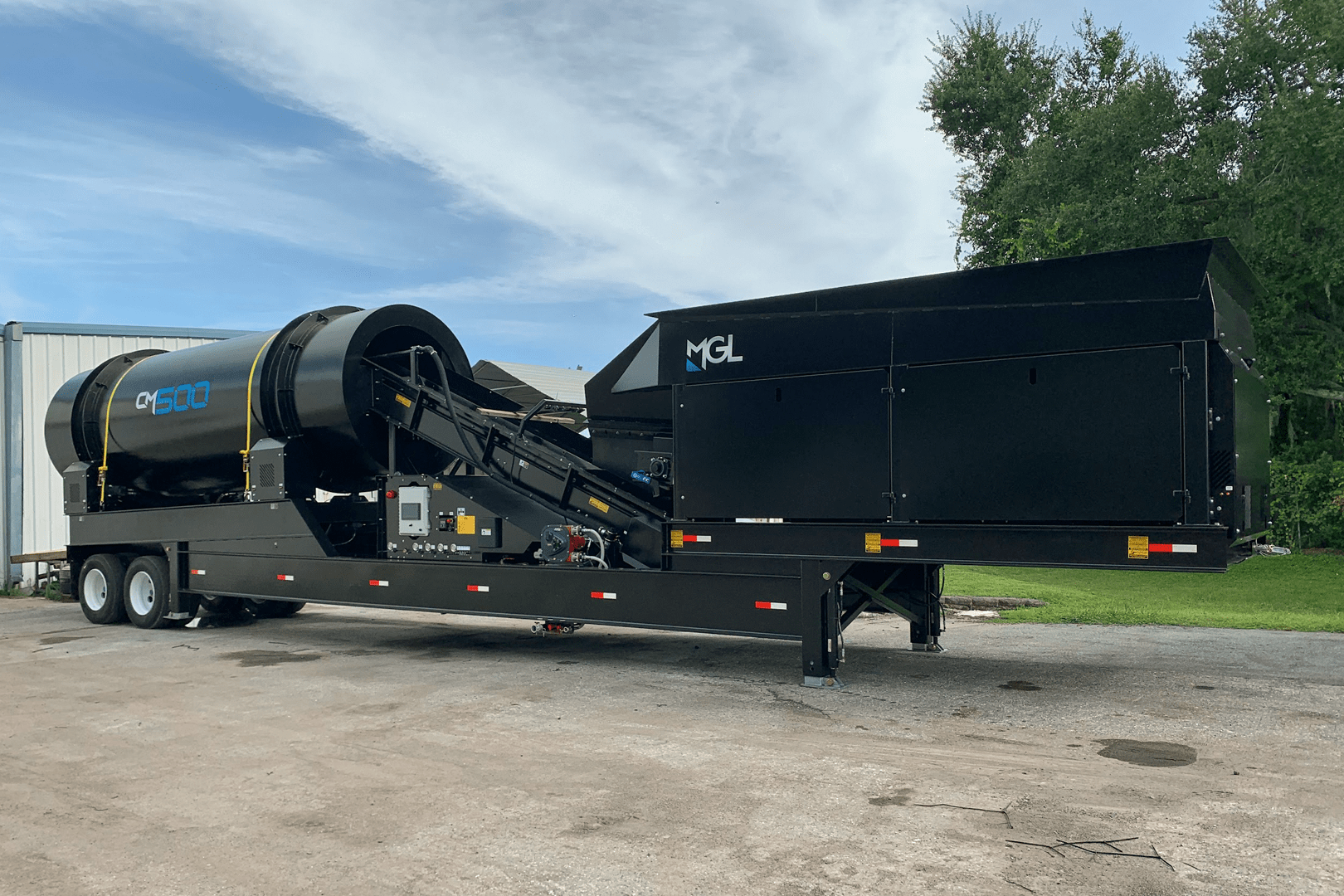

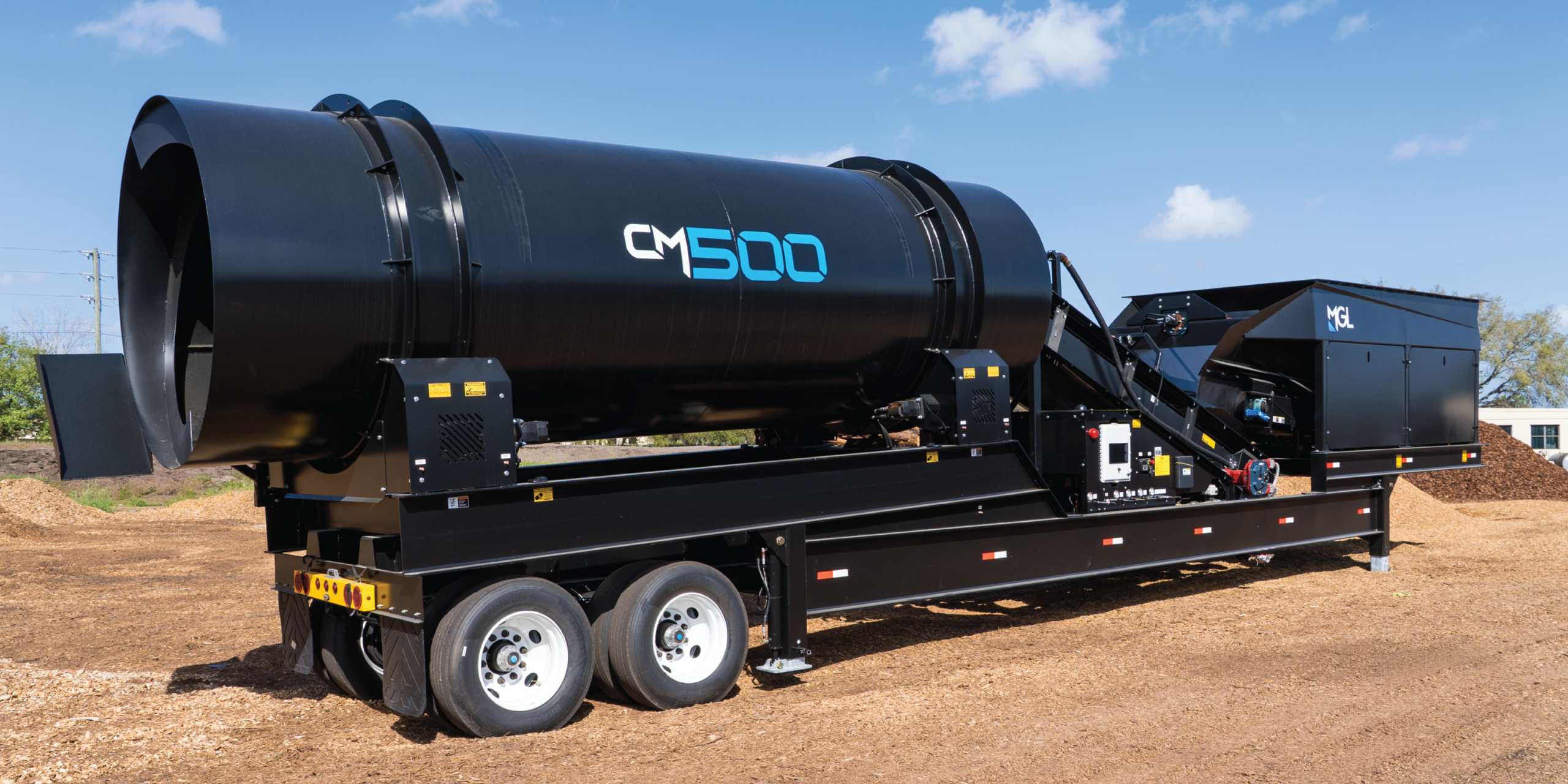

The MGL Engineering CM500 Mulch Coloring machine utilizes fully automated controls for both color and water usage. The Color Max system regulates mixture from low to high capacity, for the most consistent and efficient results.

download brochure
Inquire Call us
CM500
CM500
CM500
CM500
CM500
CM500
Features & Benefits Options Specifications
  • High throughput capacity (400 to 600 YPH)
  • Dye/water injection automation and reporting
  • Extra heavy-duty construction
  • High capacity hopper for use of large loader bucket
  • Anti-bridging agitator in hopper for seamless operation
  • Low in-feed height
  • Self-contained diesel/hydraulic as standard
  • Controlled feed rate for accurate volume measuring
  • Four-wheel-driven mixing drum
  • High flow plug-resistant spray nozzles
  • Height/level adjustment for quick set up
  • Road portable via semi tractor
  • Power Option 1: Electric (480 V 3-phase)
  • Power Option 2: Cummins QSF2.8 (74 HP / 221 lb.-ft.)
  • Hopper extension: 20CY
  • Length (working): 53′
  • Width (working): 8′ 6″
  • Height (max. working): 14′ 6″
  • Length (transport): 53′
  • Width (transport): 8′ 6″
  • Height (transport): 13′ 6″
  • Weight (approximate): 45,000 lbs.
  • Feeder capacity: 14 CY (20CY w/optional extension)
  • Feeder belt width: 48″
  • Engine make and model: Kohler KDI 2504 TCR
  • Engine rating: 74 HP / 221 lb.-ft. (No DEF or DPF)
  • Drum drive: 4-wheel-drive
  • Diesel tank capacity: 44 gallons
  • Hydraulic tank capacity: 92 gallons
  • Coloring drum: length 23′ & diameter 7’2″
  • Throughput capacity: 400–600 YPH
