CM250 Image go back
Grinding/Shredding

CM250

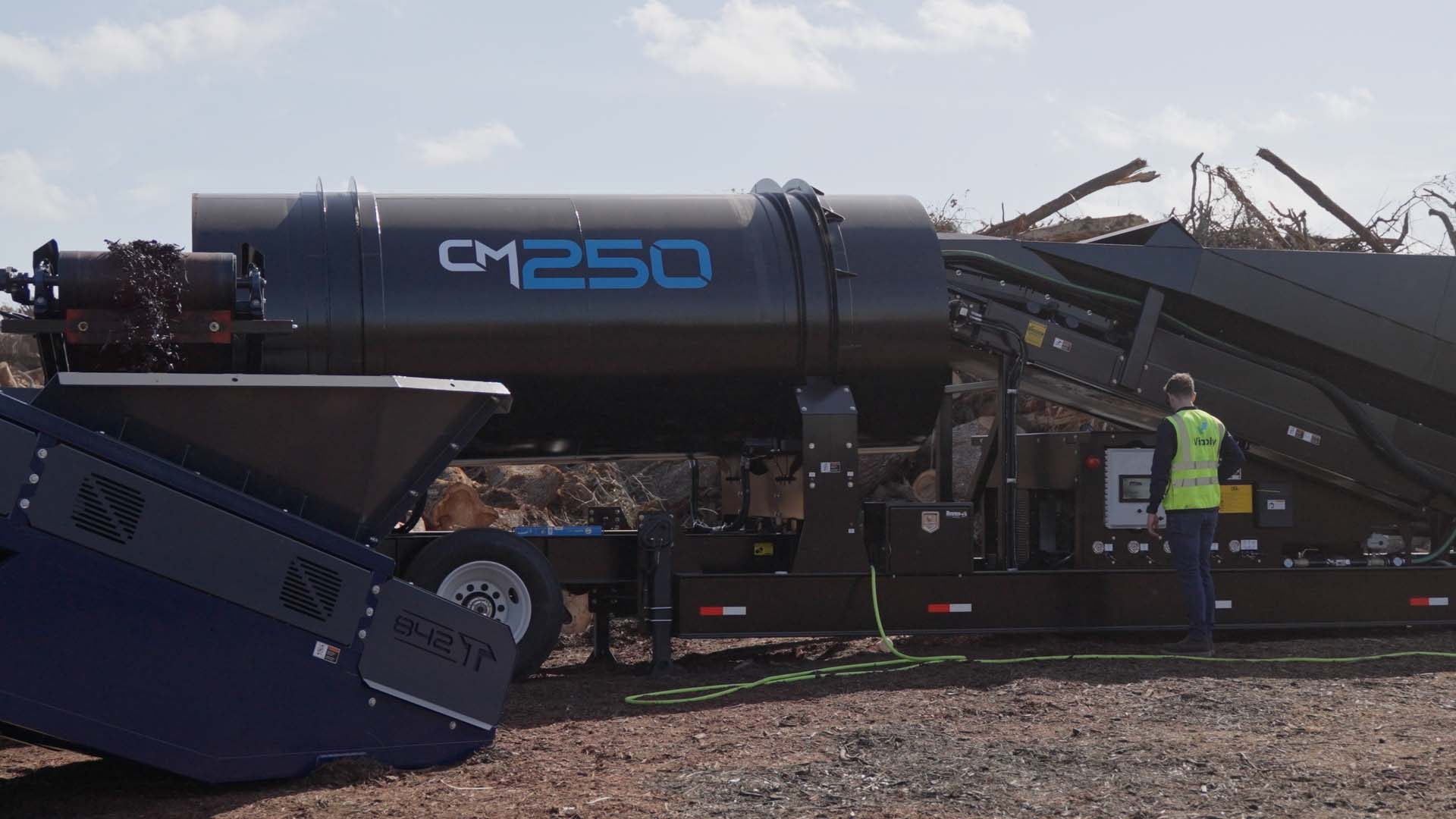

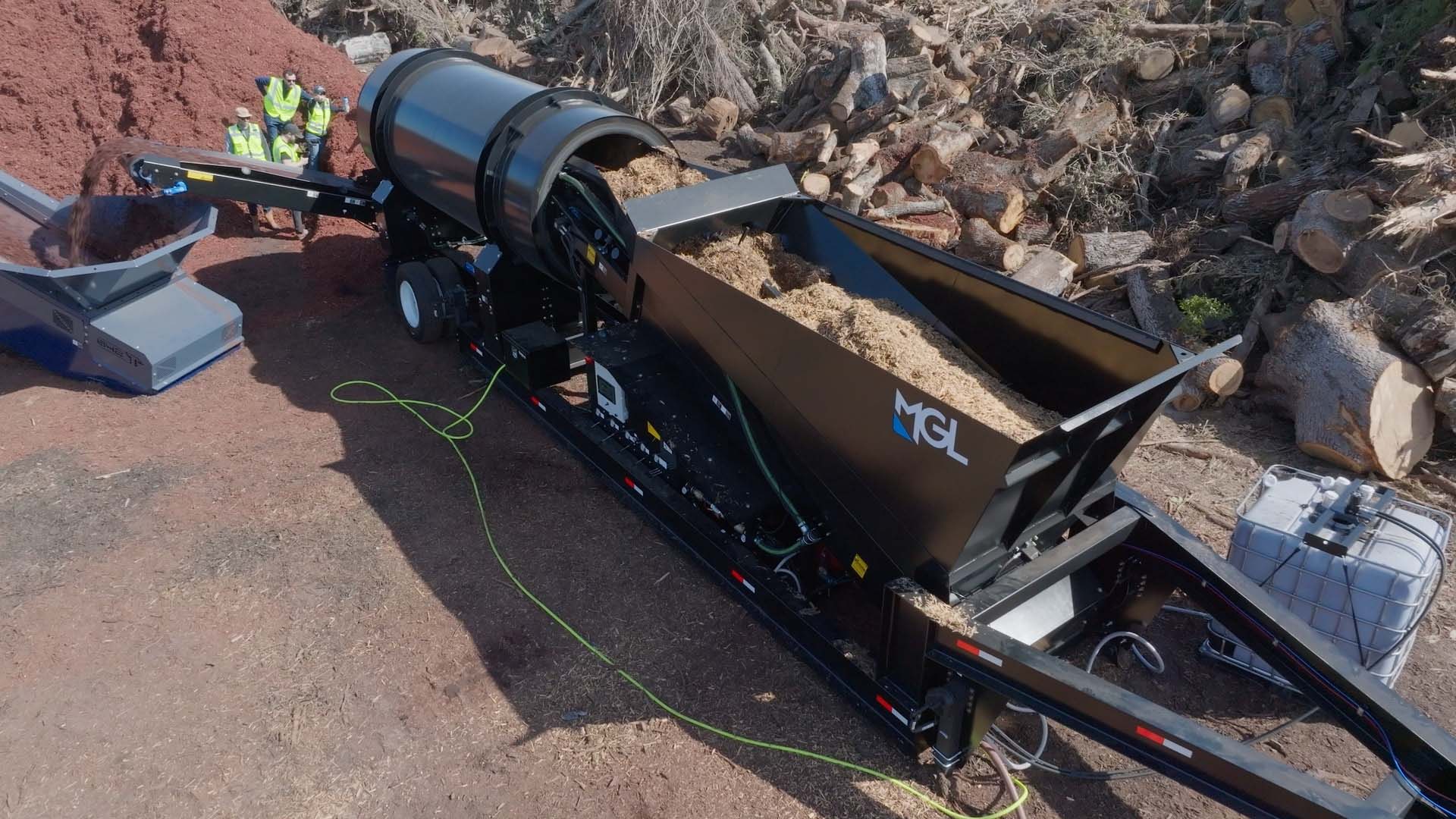

The MGL Engineering CM250 Mulch Coloring machine utilizes fully automated controls for both color and water usage. The Color Max system regulates mixture from low to high capacity, for the most consistent and efficient results.

download brochure
Inquire Call us
CM250
CM250
CM250
CM250
CM250
CM250
Features & Benefits Options Specifications
  • High throughput capacity (200 to 300 YPH)
  • Dye/water injection automation and reporting
  • Extra heavy-duty construction
  • High capacity hopper for use of large loader bucket
  • Anti-bridging agitator in hopper for seamless operation
  • Low in-feed height
  • Self-contained diesel/hydraulic as standard
  • Controlled feed rate for accurate volume measuring
  • Four-wheel-driven mixing drum
  • High flow plug-resistant spray nozzles
  • Height/level adjustment for quick set up
  • Road portable via semi tractor
  • Electric (480 V 3-phase)
  • Length (working): 44′ 6″
  • Width (working): 15′ 11″
  • Height (max. working): 11′ 10″
  • Length (transport): 44′ 6″
  • Width (transport): 8′ 6″
  • Height (transport): 13′ 6″
  • Weight (approximate): 28,000 lbs.
  • Feeder capacity: 9 CY
  • Feeder belt width: 42″
  • Engine make and model: Kohler KDI 1903 TCR
  • Engine rating: 56 HP / 165 lb.-ft. (No DEF or DPF)
  • Drum drive: 4-wheel-drive
  • Diesel tank capacity: 36 gallons
  • Hydraulic tank capacity: 75 gallons
  • Discharge conveyor length: 15′
  • Belt width: 32″
  • Discharge height: 8′ 8″
  • Discharge direction: Reversible
  • Coloring drum: length 16′ & diameter 6′
  • Throughput capacity: 200–300 YPH
