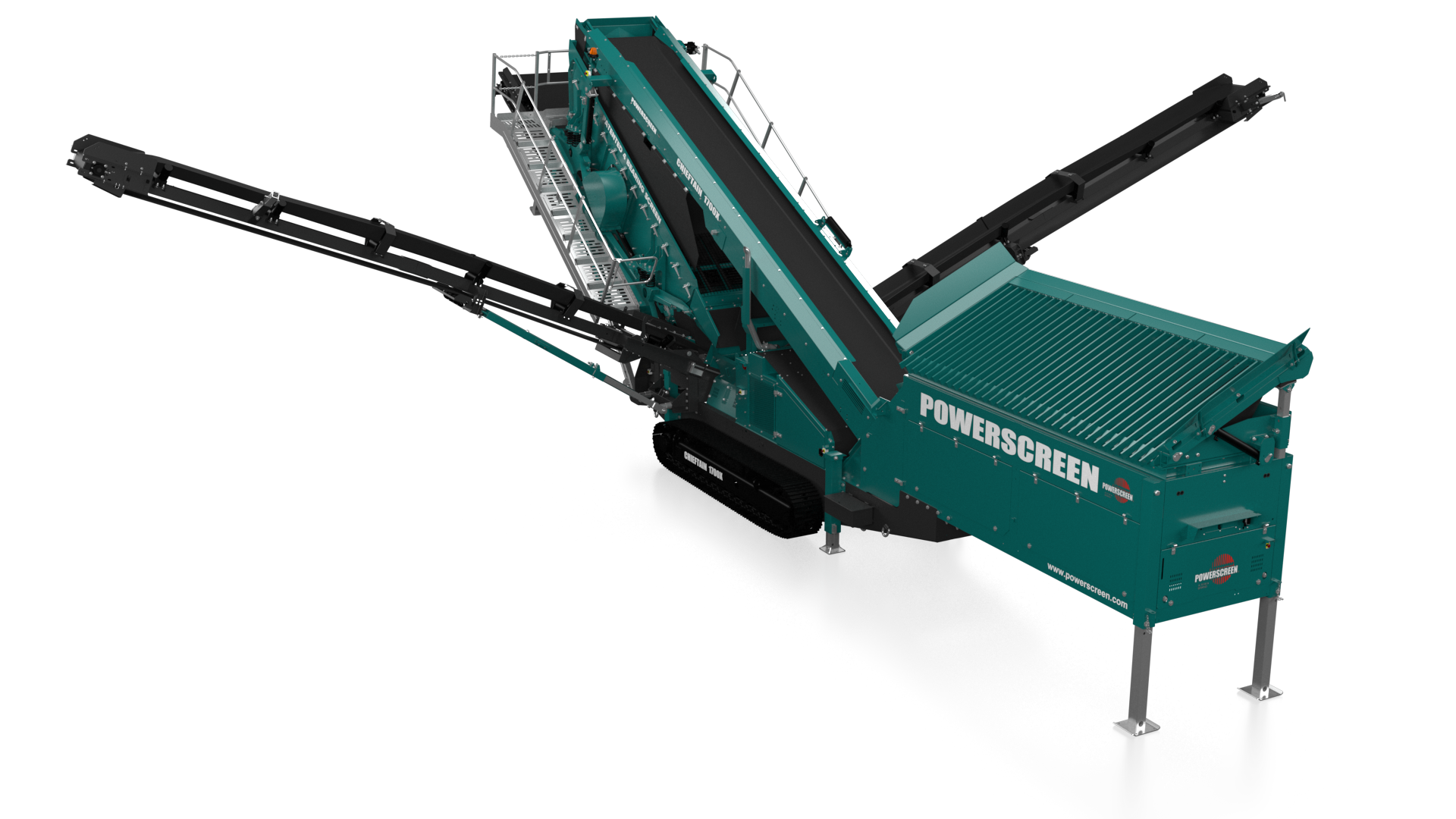

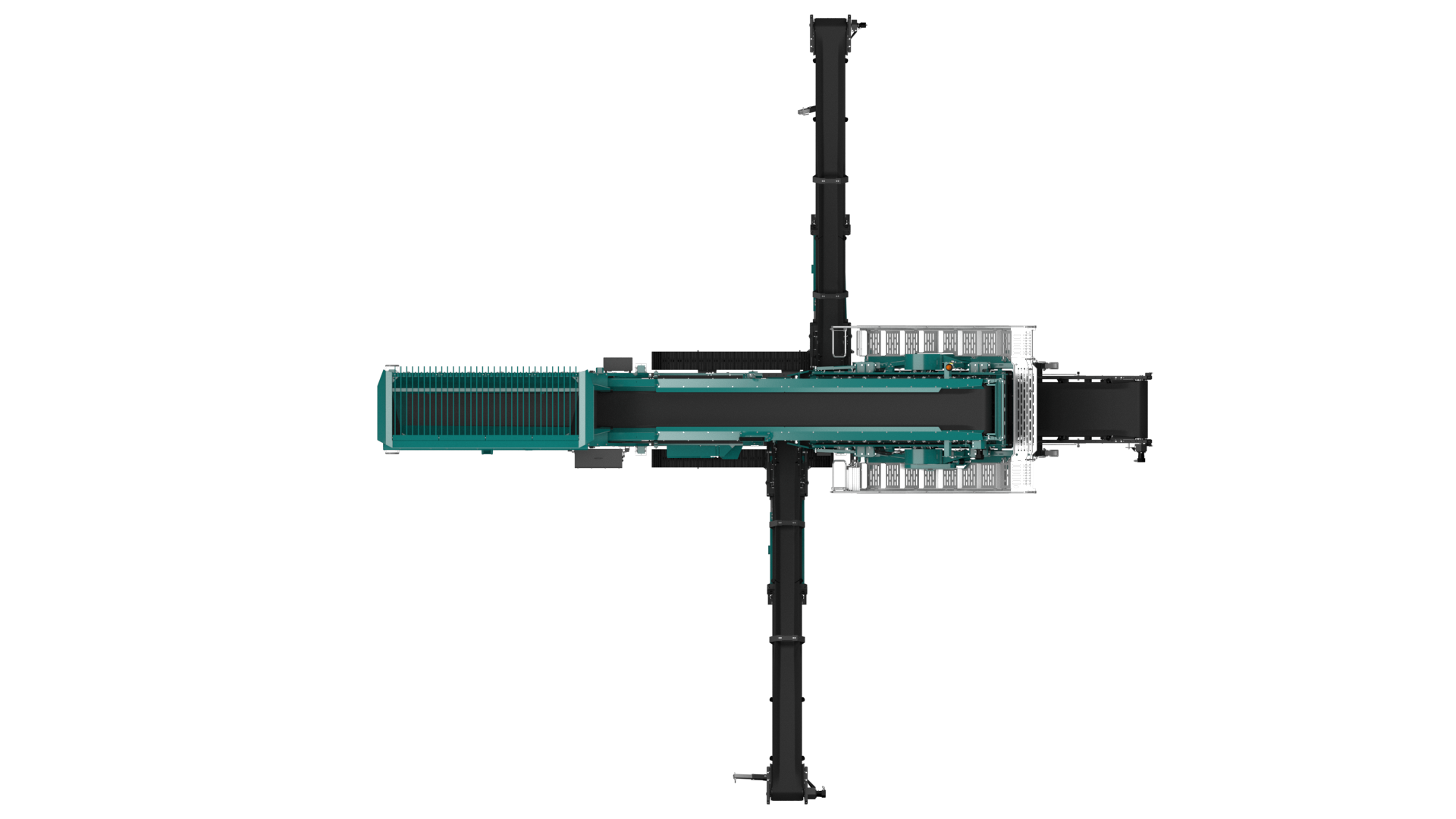

Chieftain 1700X

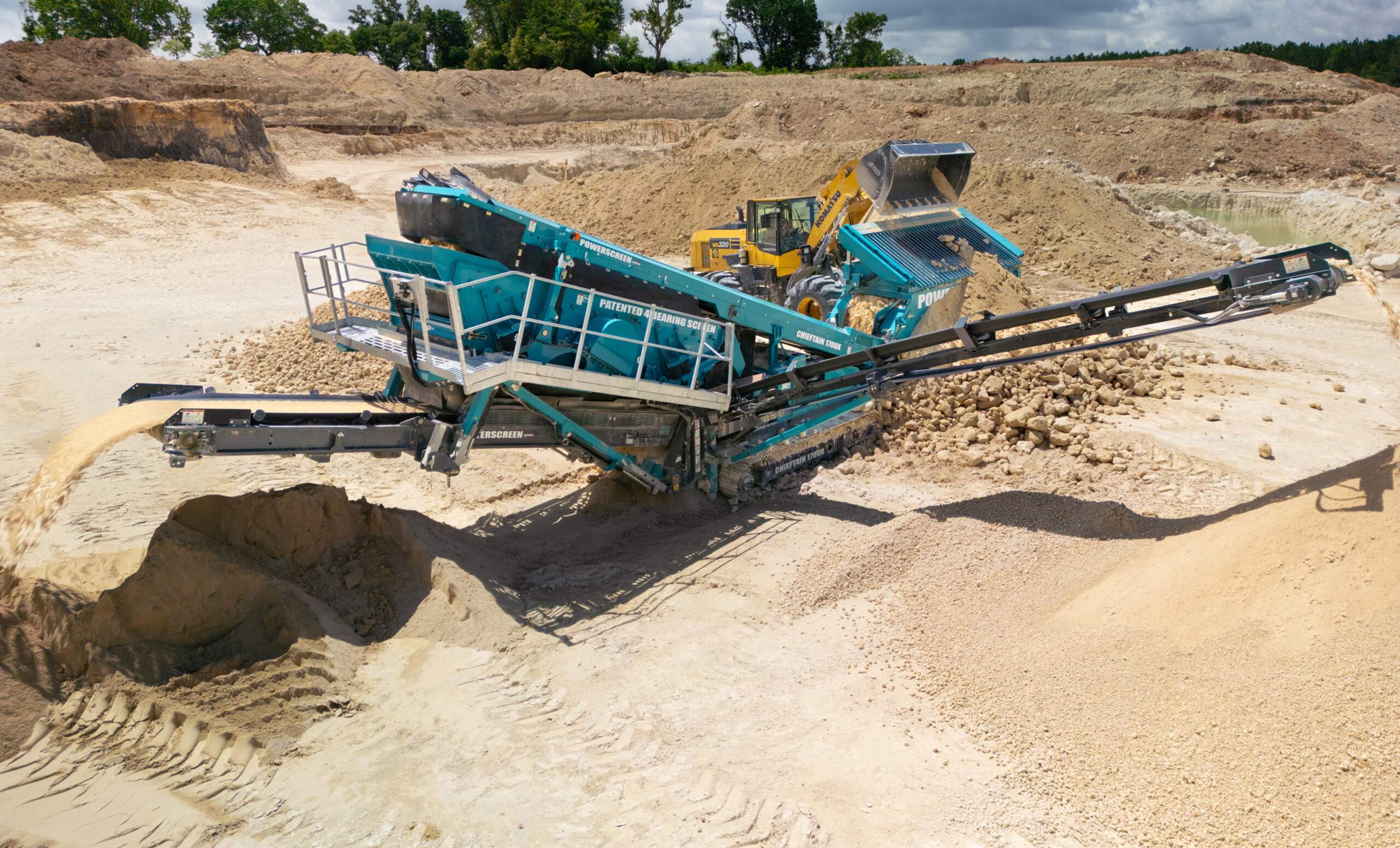

The Powerscreen® Chieftain 1700X is a mid-sized track mobile screen aimed at end users requiring high volumes of finished products in applications including topsoil, coal, crushed stone, recycling, iron ore, sand and gravel. User benefits include a quick set-up time, drop down tail conveyor and screen mesh access system to aid screen media changes and a transverse powerunit arrangement to simplify servicing.

download brochure
Inquire Call us
Chieftain 1700X
Chieftain 1700X
Chieftain 1700X
Chieftain 1700X
Chieftain 1700X
Chieftain 1700X
Chieftain 1700X
Chieftain 1700X
Features & Benefits Options Specifications
  • High capacity up to 500 tph / 551 US tph (depending on media sizes & material type)
  • Maximum feed size 150 mm (6″)
  • Patent-pending drive system allows quick change between 2- and 4-bearing screenbox
  • Engine protection shutdown and transverse engine layout for improved service access
  • Heavy-duty single-shaft incline screenbox with adjustable stroke, angle (20°–34°) & speed (1 150 rpm)
  • Hydraulic screen tensioning and mesh-access system for fast media changes
  • Low-ground-pressure tracks for maximum mobility
  • Pendant radio remote control for safe, hands-free operation
  • Quick set-up time; hydraulically folding conveyors for transport
  • Fines conveyor “drop-down” and head-section raise/lower for easy bottom-deck access
  • High-performance hydraulic system (cast-iron pumps & motors, hydraulic cooler)
  • Powerscreen Pulse telemetry system standard for live fleet monitoring
  • Double-deck vibrating grid (low-profile) with tipping grid, angle-adjustable, fully riveted
  • Dual-power system (diesel + electric drives)
  • Custom paint livery
  • Auto-lubrication system
  • Anti-rollback on main conveyor
  • Quick-release wedge tensioning for top deck
  • Vibrating-grid discharge chute; crusher-feed chute (with vibrating grid)
  • Radio-controlled tracking
  • Grid aperture options up to 152 mm (6″)
  • Adjustable hopper door & wear plates
  • Extra coupling facility; screenbox reverse function
  • Fuel-save mode
  • Bottom-deck self-cleaning flexi-mesh
  • Wear-resistant lined spreader plate
  • Hydraulic-folding walkway; hydraulic jacking legs
  • Choice of hydraulic oil grade 68
  • Hopper capacity: 6.7 m³ (with grid) / 4.67 m³ (no grid)
  • Feed-in height (rear): 3.7 m (with grid) / 2.62 m (no grid)
  • Screenbox: 4.8m x 1.5m (16’ x 5’) 2 deck incline screen
  • Screen speed/throw: 1 150 rpm / 6.25 mm
  • Feed conveyor: 1 050 mm belt, direct drive, variable speed
  • Main conveyor length: 9.89 m centres on 1 050 mm belt, hydraulically adjustable and sealed
  • Fines conveyor: 1 200 mm plain belt, 6.88 m centres, 4.23 m stockpile height
  • Mid-fines/overs conveyor: 650 mm chevron belt, 9.67 m centres, 4.72 m stockpile height
  • Tier 3: CAT C4.4 77 kW (104 hp) @ 1 800 rpm; fuel tank: 336 L; hydraulic oil: 564 L
  • Tier 4F: CAT C3.6 82 kW (110 hp) @ 1 800 rpm; hydraulic oil: 450 L
  • Total weight: 27,660 kg (60,980lbs)
