Chieftain 1500 Image go back
Screening

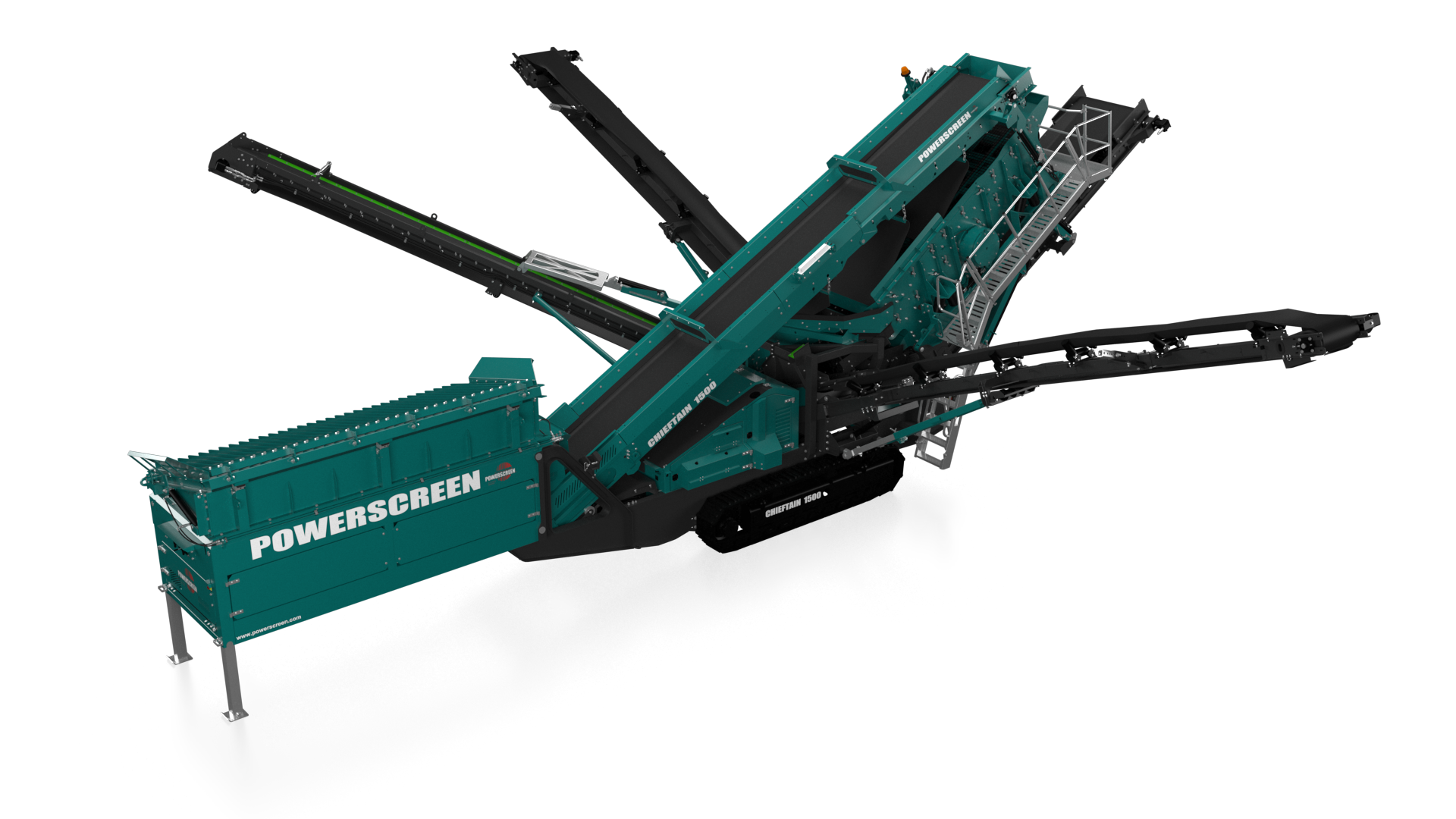

Chieftain 1500

The Powerscreen Chieftain 1500 is a highly capable and adaptable mobile triple-deck inclined screen, optimized for quick setup, versatile screening across varying material types and sizes, and smooth maintainability.

With a strong throughput capacity (up to 400 tph), flexible deck configuration, and a range of optional enhancements, it’s a compelling solution for mid-sized operations in aggregate, recycling, or quarry environments.

download brochure
Inquire Call us
Chieftain 1500
Chieftain 1500
Chieftain 1500
Chieftain 1500
Features & Benefits Options Specifications
  • High capacity up to 400 tph / 441 US tph (depending on media sizes & material type)
  • Maximum feed size 150mm (6’’)
  • Triple deck screen with galvanised fixed walkway to give access to 3 sides of the screen for ease of operation and maintenance
  • The oversize auxiliary conveyor provides variable tilt and slew capabilities to accurately discharge material for recirculation or for stockpiling
  • Maximum utilisation of the 3 decks provides ultra efficient screening capabilities even at small piece sizes
  • Ease of material flow from the hopper to the main conveyor
  • Adjustable screen angle
  • Engine protection shutdown system
  • Power unit featuring a transverse engine arrangement to aid access & serviceability
  • Hydraulic bottom deck screen tensioning
  • Maximum mobility with heavy duty, low ground pressure tracks
  • Removable heavy duty pendant remote control system
  • Quick set up time
  • High performance hydraulic system – cast iron pumps & motors complete with hydraulic cooler
  • Powerscreen Pulse telemetry as standard
  • No grid but hopper dead plate fitted
  • 10mm bolt in hopper wear resistant wear plates
  • Screenbox reversal control
  • Wear resistant main conveyor spreader plate
  • Hydraulic raise of main conveyor head section
  • Radio remote control of tracks
  • Working lights on main conveyor and power unit
  • 68 grade hydraulic oil
  • Standard stockpiler drive – only when no tipping grid fitted
  • Quad pump stockpiler drive
  • Feed in height with tipping grid (rear): 3.15m (10’ 4”)
  • Feed in height without tipping grid (rear): 2.36m (7’ 8”)
  • Hopper capacity with tipping grid: 6.64m³ (8.68 cu. yd.)
  • Hopper capacity without tipping grid: 5.84m³ (7.64 cu. yd.)
  • 3.66m x 1.52m (12’ x 5’) 3 deck incline screen
  • 3.66m x 1.52m (12’ x 5’) top & middle deck 3m x 1.52m (10’’ x 5’) bottom deck
  • Finesize conveyor: 4.25m (13’ 11’’) stockpile height
  • Oversize conveyor: 4.47m (14’ 8”) stockpile height
  • Engine Tier 3: CAT C4.4 | Performance: 77 kW (103hp) @ 1800rpm
  • Engine Tier 4F / Stage IV: CAT C3.6 | Performance: 82 kW (110hp) @ 1800rpm
  • Fuel tank: 336 L (88 US Gal)
  • Hydraulic Tier 3: 564L (149 US Gal)
  • Hydraulic Tier 4/Stage V: 450L (118 US Gal)
