Bison 340 Image go back
Crushing

Bison 340

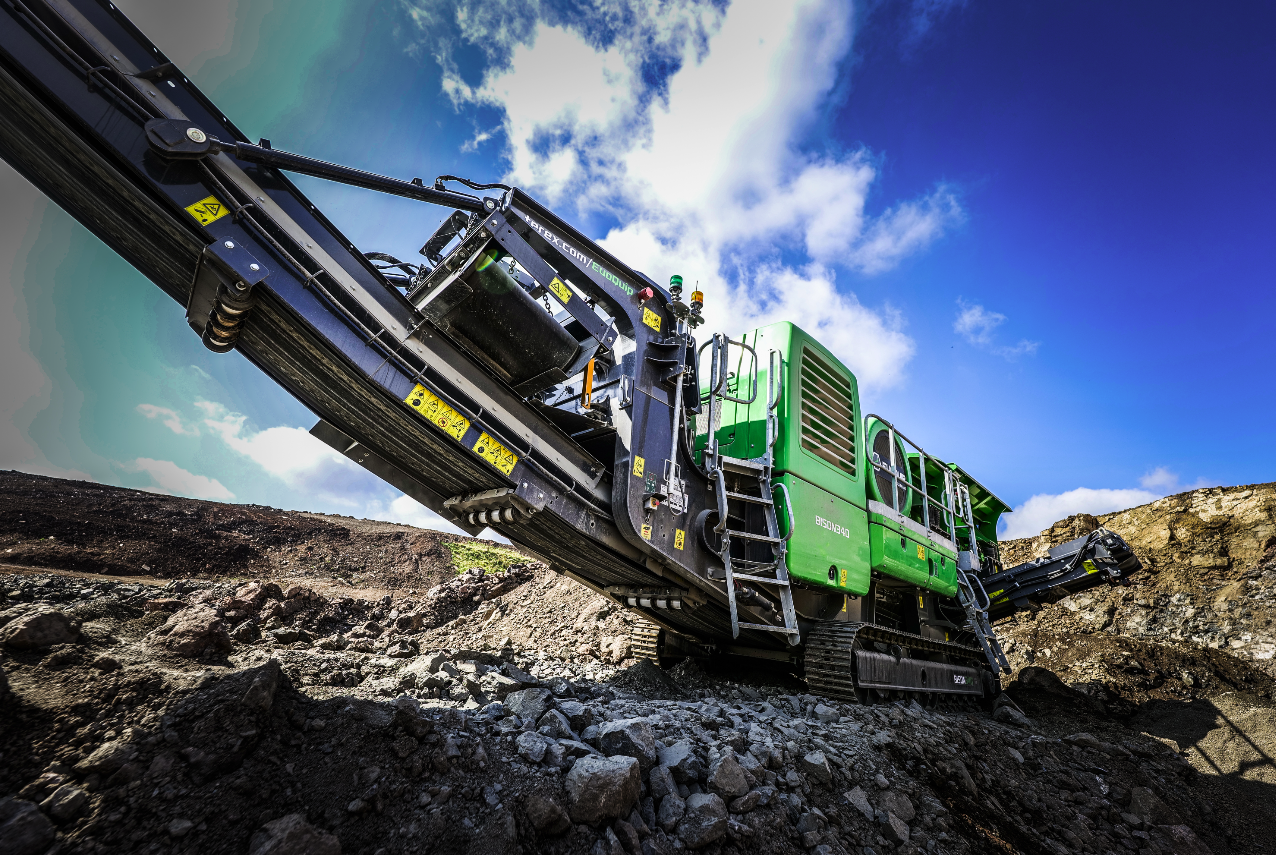

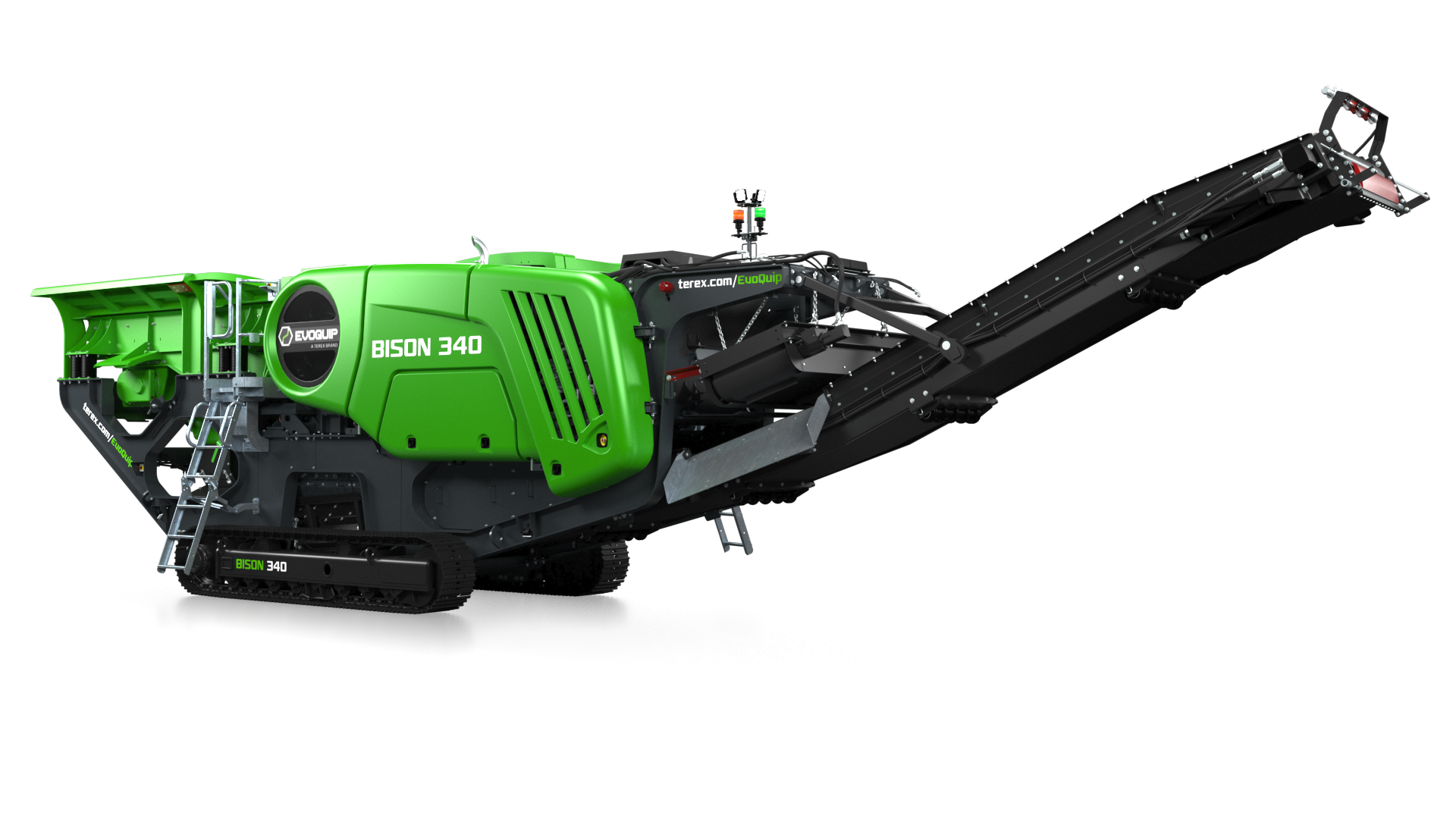

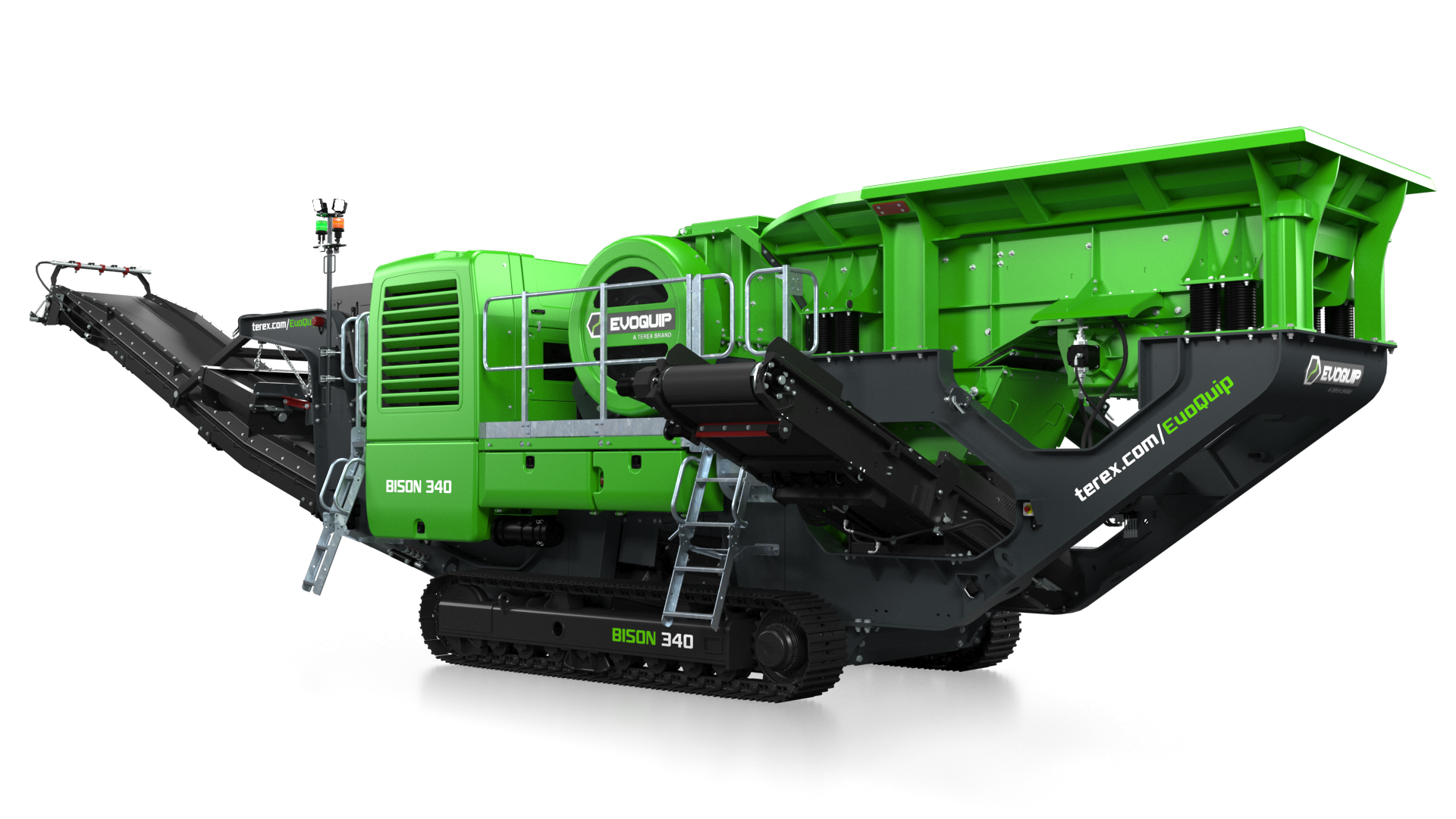

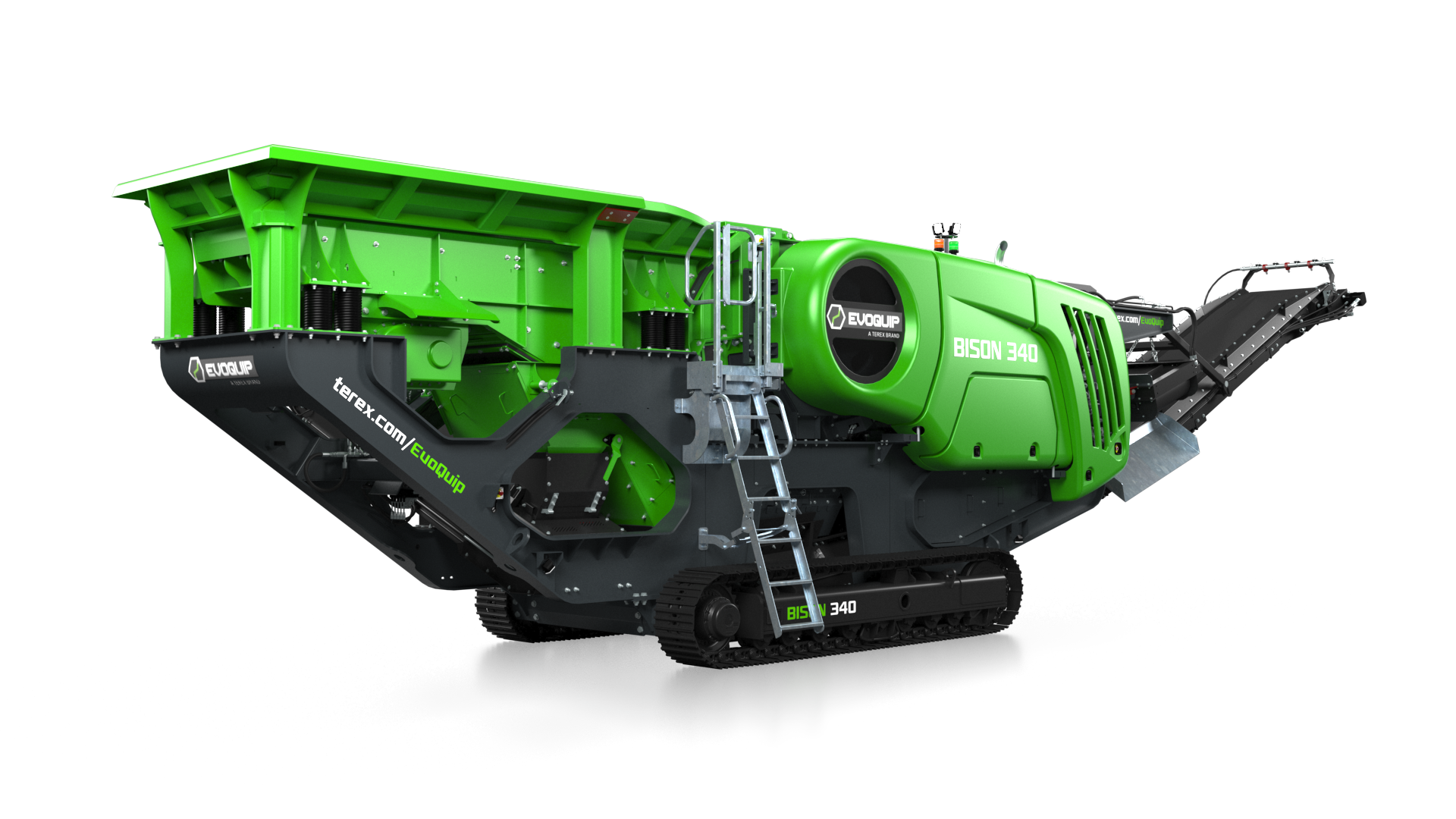

The EvoQuip Bison 340 is a high performance primary jaw crushing plant and is designed for operators in quarrying, demolition, recycling & mining applications.

User benefits include track mobility for a quick set-up time, hydraulic crusher setting adjustment for total control of product size & crusher overload protection to prevent damage by un-crushable objects.

download brochure
Inquire Call us
Bison 340
Bison 340
Bison 340
Bison 340
Bison 340
Bison 340
Bison 340
Bison 340
Bison 340
Bison 340
Features & Benefits Options Specifications
  • Output potential up to 280tph (308 US tph) (Depending on application & CSS)
  • Hydrostatic Drive with reverse crush capacity
  • Heavy duty wear resistant feed hopper
  • Stepped self-cleaning grizzly feeder with under feeder screen
  • Wide bypass chute to optimise material flow
  • Aggressive crushing action with high swing jaw encouraging material entry into crushing chamber
  • Fully hydraulic crusher setting adjustment
  • Improved manganese liner retention, protects jaw supports on both swing & fixed jaws
  • Excellent under crusher access for removal of wire with hydraulic raise/lower product conveyor (Optional)
  • Low fuel consumption due to efficient drive system and low engine RPM
  • Easily accessed power unit canopy
  • PLC control system with auto start facility
  • Remote control via umbilical
  • Dust suppression system
  • EvoQuip T-Link telemetry as standard
  • Radio remote control as standard
  • Bypass Conveyor: troughed, modular with hydraulic raise & lower
  • Belt Weigher: modular scale with stainless load cells, single idler speed wheel & display unit
  • Magnet
  • Feeder Under Screen Mesh
  • Control Panel Positive Pressurisation
  • Electric Water Pump
  • Under Crusher Deflector Plate
  • Hot/Cold Climate Oils
  • Hydraulic Folding Hopper
  • Deflector plate under crusher
  • Bypass conveyor
  • Single pole overband magnetic separator
  • Jaw level sensor
  • Twin pole overband magnetic separator
  • Belt weigher
  • Electric water pump
  • Stockpiler drive
  • Stockpile level sensor
  • Hydraulic Raise/Lower Product Conveyor
  • Working lights
  • Dust covers on discharge conveyor
  • Rip stop belt
  • Magnet hydraulic raise/lower
  • Remote feeder control station
  • 5m³ (6.5yd³) Hopper capacity
  • Jaw Crusher: : 1000mm x 600mm (39”x23.6”)
  • Product conveyor discharge height: 3.5m (11’5”)
  • Tier 3/Stage 3A: John Deere 6068 212 kW (284hp)
  • Tier 4F: CAT C7.1 205kW (275hp)
  • Fuel tank capacity: 640 L (169 US GAL)
  • Weight: 34,860kg (76,853lbs)
