Crushing

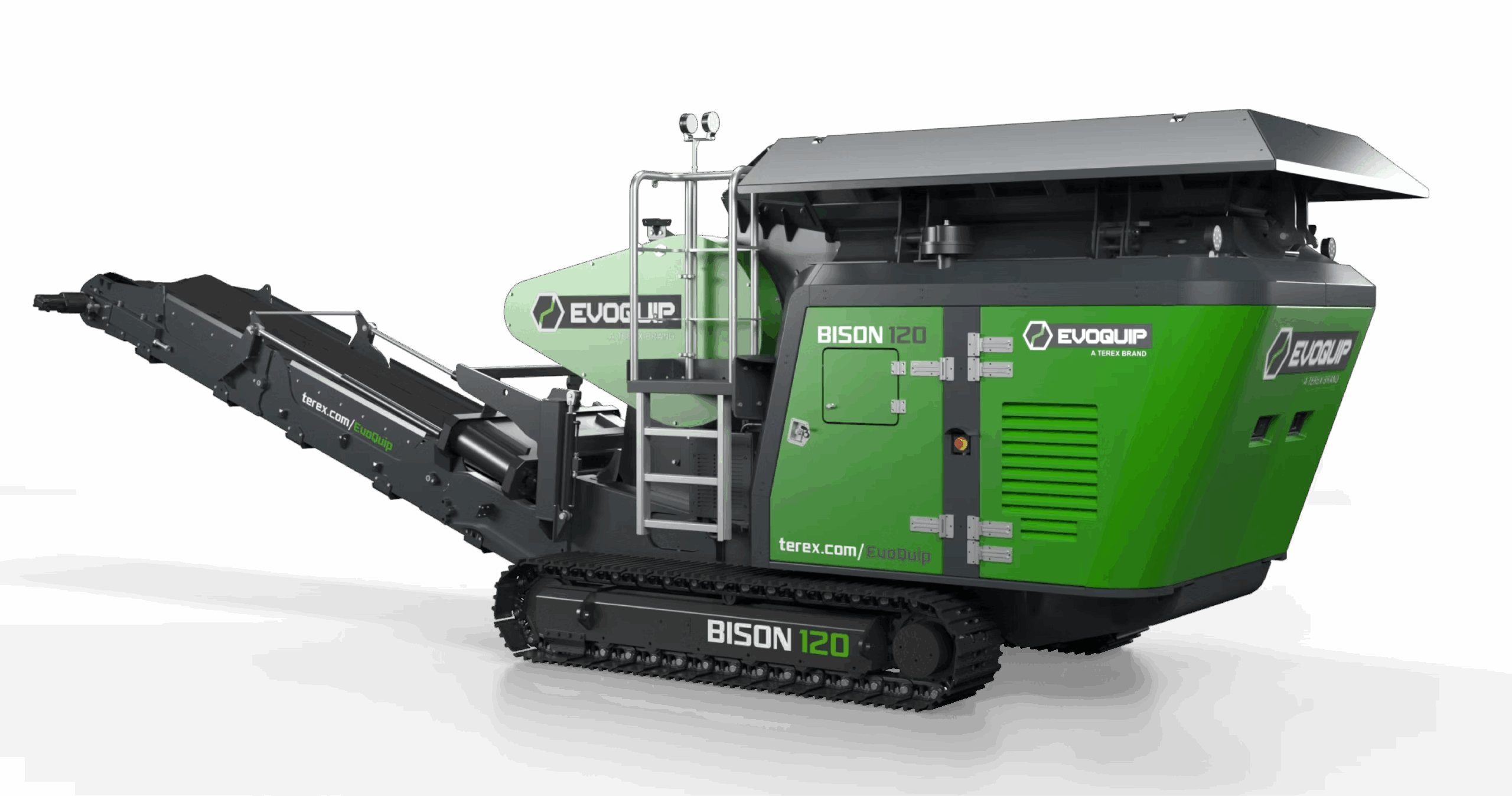

Bison 120

The Evoquip Bison 120 has been specifically designed for operators for whom versatility, maneuverability and transportability are of key importance. It is small enough to fit inside a container for transport but strong enough to withstand the toughest of applications.

The Jaw is driven hydraulically allowing the customer the ability to reverse the Crusher to clear a blockage as well as being able to run in reverse permanently for sticky applications such as asphalt.

The ability to adjust the jaw setting and operate the plant from the remote control allows for a fast and simple set up for the customer. With its intuitive operation, quick set-up times, compact size and ease of transport the Bison 120 the ideal solution for creating revenue from waste.

download brochure
Bison 120
Bison 120
Bison 120
Bison 120
Bison 120
Bison 120
  • Output Potential: up to 80 tph (90 US tph)
  • Quick set up time typically under 15 minutes
  • Chamber level sensor
  • CSS adjustable remotely
  • Reverse jaw function for sticky applications
  • Direct drive crusher
  • Fuel efficient 70hp engine
  • Track machine
  • Low transport costs
  • Over-band Magnet: raise & lower system
  • Dust Suppression: spray bar on jaw & conveyor, water tank & water pump & nozzles
  • Product Conveyor: weighing system
  • Vibrating feeder: 40mm bars
  • Track: rubber pads
  • Magnet
  • 2.3m³ (3yd³) Hopper capacity
  • Feed Opening: 680 mm x 400 mm (approx. 27 in x 16 in)
  • 800mm (32”) Wide product conveyor
  • Product conveyor discharge height: 1.75m (5’9”)
  • Stage 3A: Deutz 2.2 L3 55kW
  • Tier 4F: Deutz 2.2 L3 55 kw
  • Diesel Tank Capacity: 140 Litres (37 US Gallon)
  • Weight: 12,000kg (26,455lbs)
