5800BT Image go back
Grinding/Shredding

5800BT

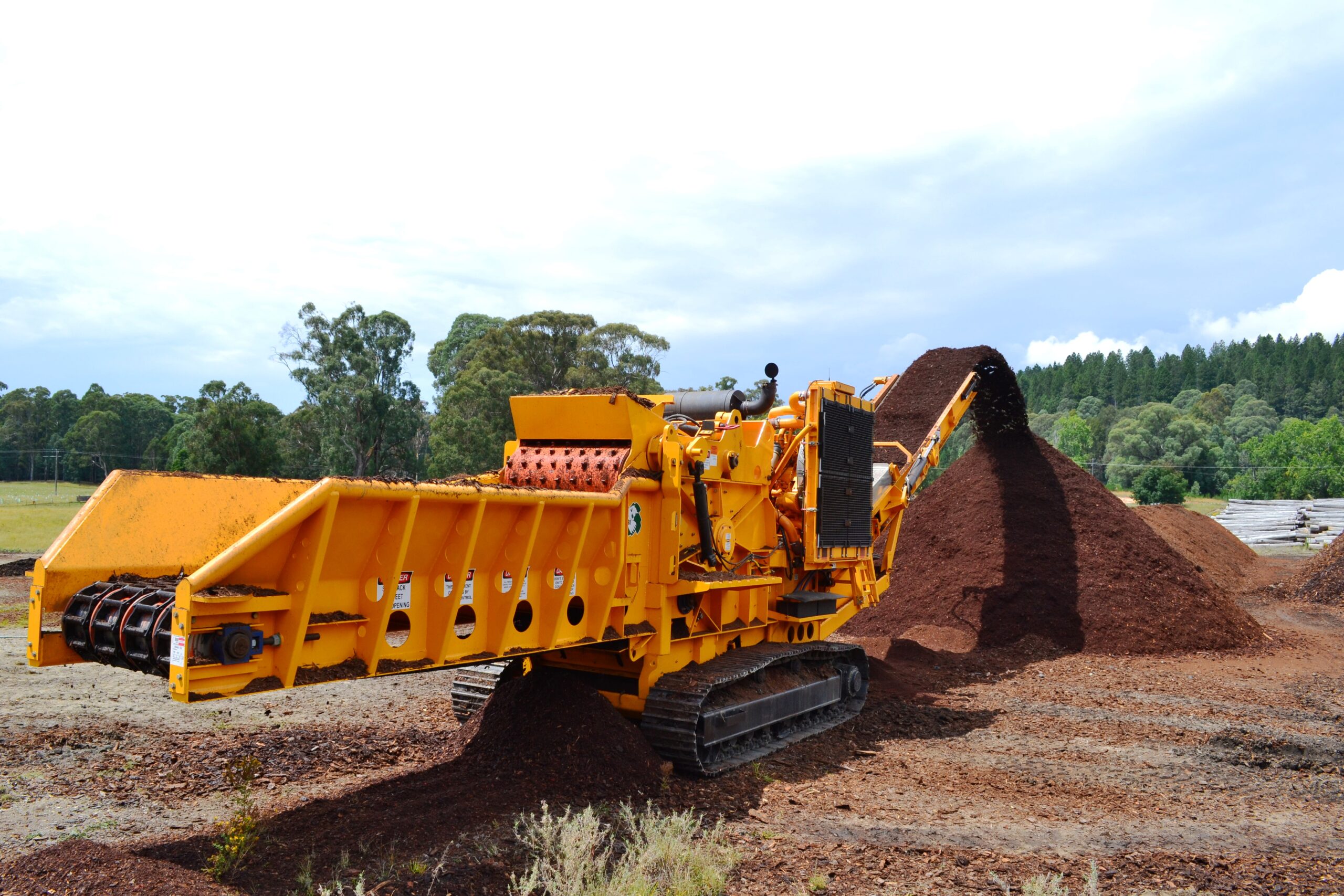

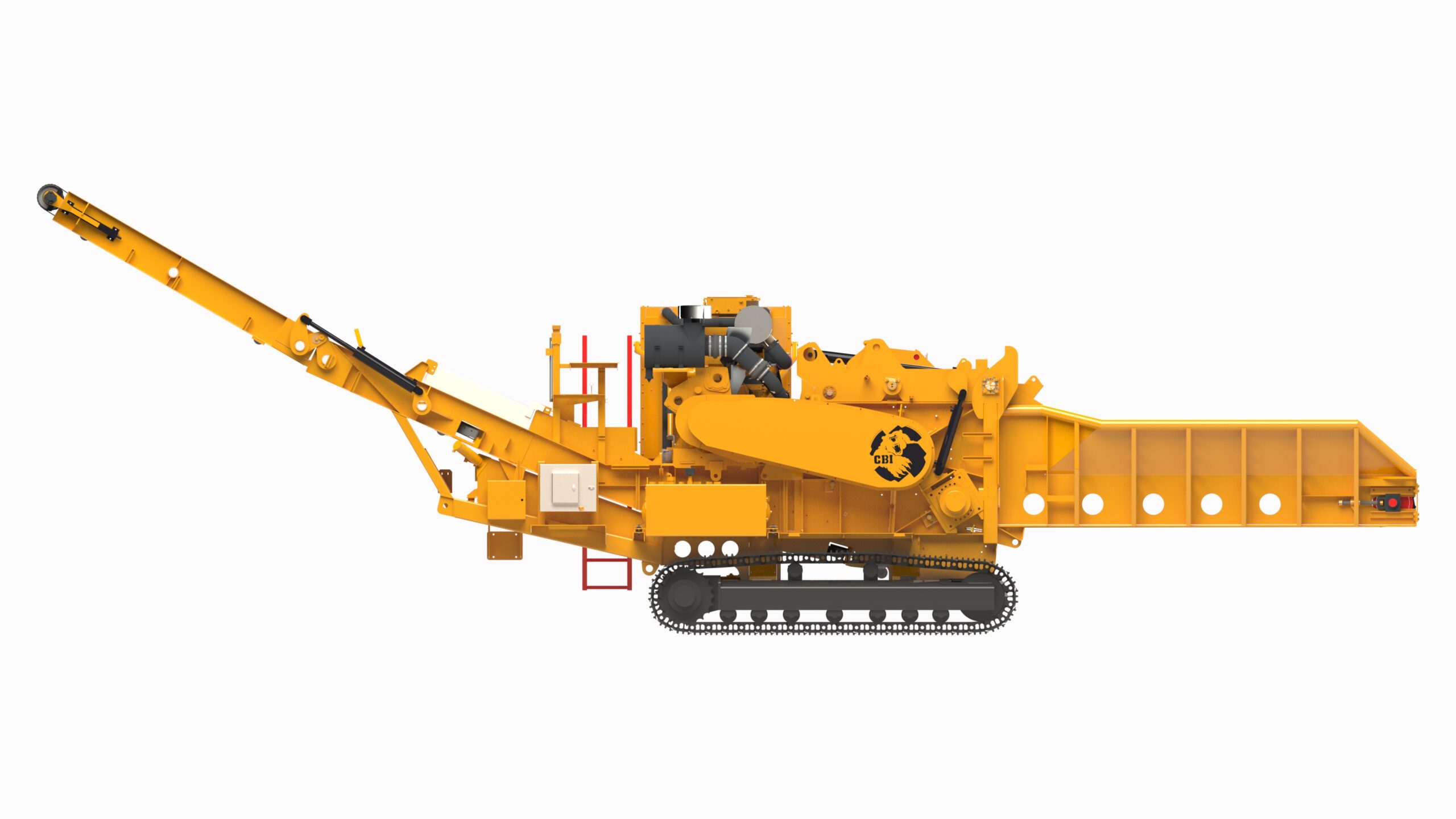

This portable horizontal grinder was developed to feature the same principles of the proven CBI 6800BT Grinder but is purpose-built for contractors dealing with transportation restrictions.

Built to reduce the customer’s total cost, replaceable 1” thick Hardox 450 wear liners fully protect the inside of the grinding chamber and simplify maintenance.

download brochure
Inquire Call us
5800BT
5800BT
5800BT
5800BT
5800BT
5800BT
5800BT
5800BT
Features & Benefits Options Specifications
  • 30” diameter upper feed roller with a built in high-torque hydraulic motor
  • Hydraulic up and down pressure
  • 20 weld-on hammers with bolt-on reversible tips
  • Upper feed roll pivot also has replaceable wear plates
  • Spider bracing
  • Rugged bearing housing
  • Metal Detection System to protect rotor, anvil, and screens
  • 48” wide cleated discharge belt provides unrestricted discharge of ground product
  • Upper feed roller; high-torque hydraulic motor built into roller
  • Large capacity feed hopper that handles full-length trees or large material surges with no problem
  • Overband Magnet
  • Lighting Package Control Panel Guard
  • Air Compressor w/ enclosure
  • Single or Double Grouser Pad
  • Caterpillar C-18; 755 Tier 4 Final
  • Infeed Width: 48” (1,219mm)
  • Infeed Conveyor: 16’-0” (4,876mm), 4 strands heavy-duty drag chain
  • Rotor Shaft: 6” (152mm)
  • Rotor Width: 48” (1,219mm)
  • Rotor Diameter: 40” (1,016mm)
  • Rotor Top Feed Roll: 30” D x 48” W
  • Dischage Conveyor Width: 48” (1,219mm)
  • Dischage Conveyor Length: 36’ (10,972mm)
  • Dischage Conveyor Height: 15’4” (4,675mm)
  • Engine: Caterpillar C-18; 765-HP (570 kW)
  • Weight: 63,000 – 69,000 lbs. (approx.)
