1300X Maxtrak Image go back
Crushing

1300X Maxtrak

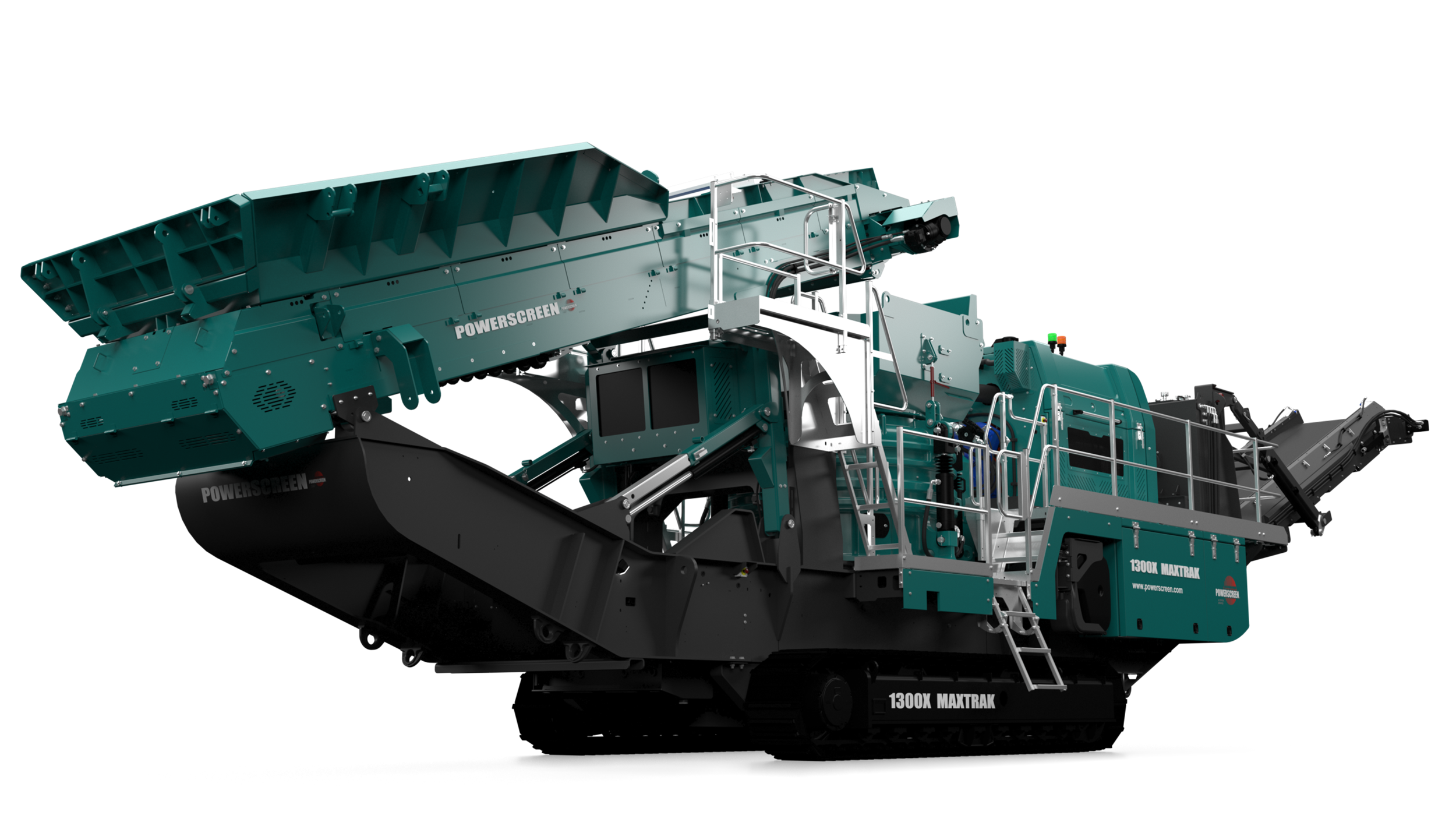

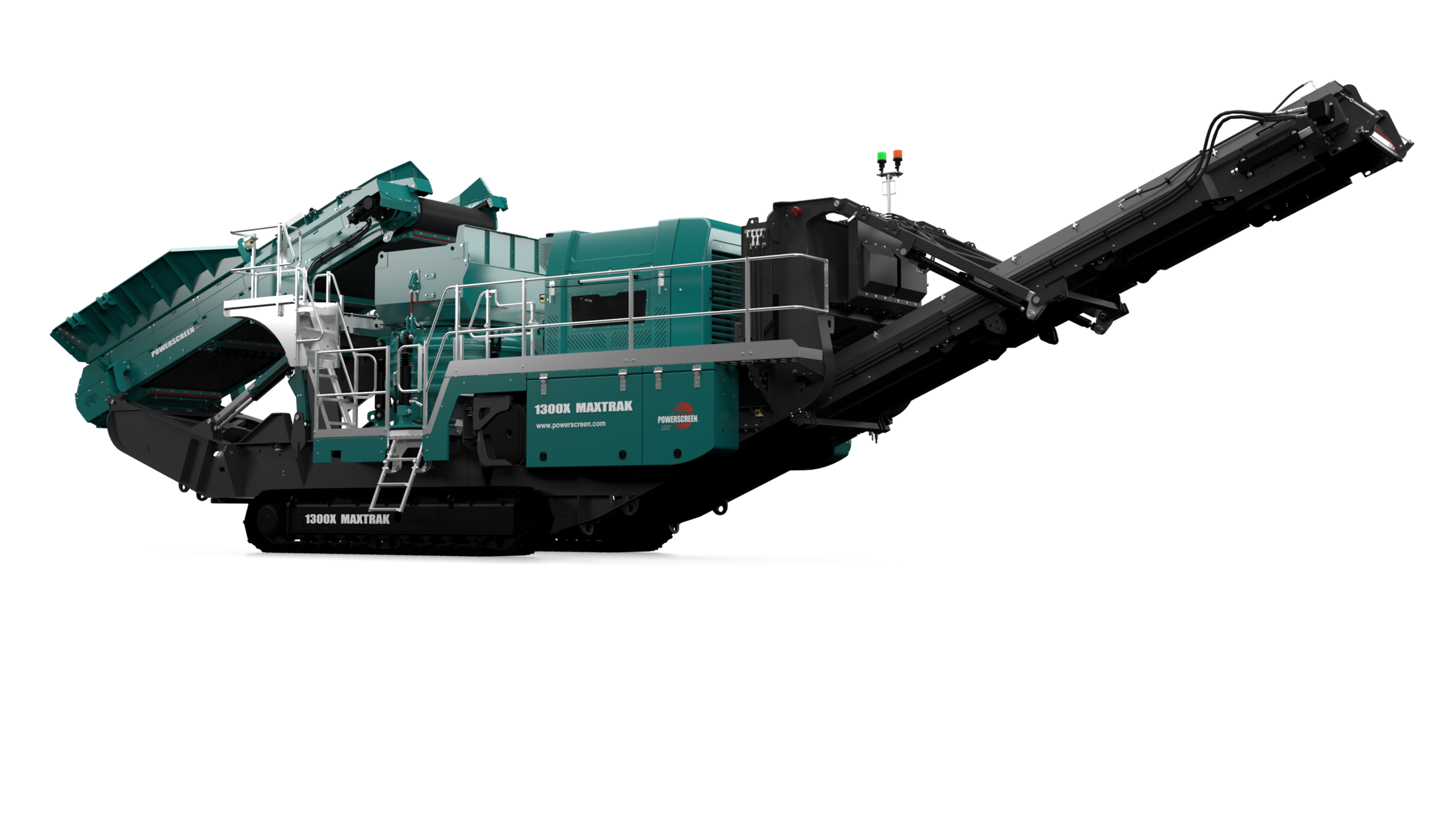

The Powerscreen® 1300X Maxtrak is a medium to large sized track mobile cone crusher, ideally suited to secondary applications such as taking an all in feed from a primary crusher. Based around the 1300X Terex cone crusher, the plant excels in the production of sub-base or aggregates, providing excellent cubicity, throughput & reduction ratios.

download brochure
Inquire Call us
1300X Maxtrak
1300X Maxtrak
1300X Maxtrak
1300X Maxtrak
1300X Maxtrak
1300X Maxtrak
Features & Benefits Options Specifications
  • Output potential of up to 500 tph / 551 US tph – depending on feed material & crusher settings
  • Renowned Automax® crusher technology
  • Excellent product shape
  • High reduction ratio
  • Cone feed box level control to maintain choke feeding
  • Hydraulic crusher setting
  • Cone overload protection
  • Metal detector
  • Dust suppression system
  • Economical to operate with a highly fuel efficient direct drive system
  • Heavy duty fabricated chassis & track frame
  • Remote control via umbilical
  • Hydraulic folding and locking from ground level
  • Remote control via radio/umbilical as standard
  • Quick relase removal of feed box
  • Powerscreen Pulse telemetry as standard
  • Excellent access to all components for maintenance
  • Autosand concave
  • Feed hopper extensions plates
  • Product conveyor belt weigher
  • Camera and viewing screen
  • Electric water pump
  • Hot/cold climate oils
  • Hot climate cooler (lube oil
  • Lighting mast
  • Anti-spin motor
  • Stockpile sensor
  • Belt weigher
  • Single auxiliary drive
  • Hot/Cold climate oils
  • Feed Height: 3.07m (10” 11’)
  • Hopper capacity: Up to 6m³ (7.8 cu. yd.)
  • Product Conveyor Discharge height: 3.6m (11’ 10”) (Standard) 4.2m (13’ 9”) (Optional)
  • Tier 3: Caterpillar C15 403 kW (540hp)
  • Tier 4: Scania DC13, 405 kW (550hp)
  • Fuel tank capacity: 1000 L (264 US Gal)
  • Crusher Type: TC1300X Terex Crusher
  • Total Weight 51,500kg (113,538lbs) (No Options)
  • Total Weight 51,775kg (114,144lbs) (Ext Conv)
