Crushing

1150 Maxtrak

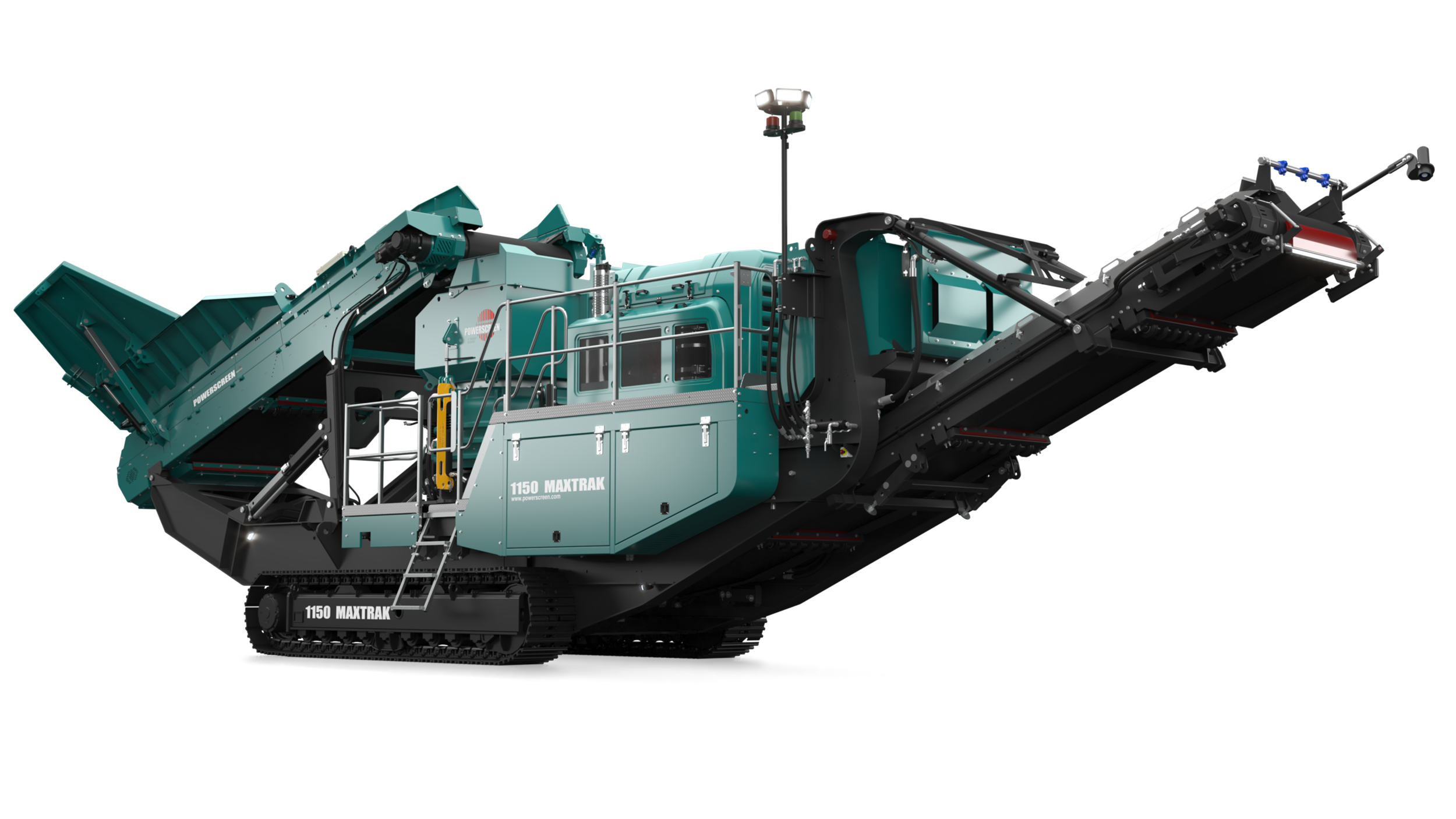

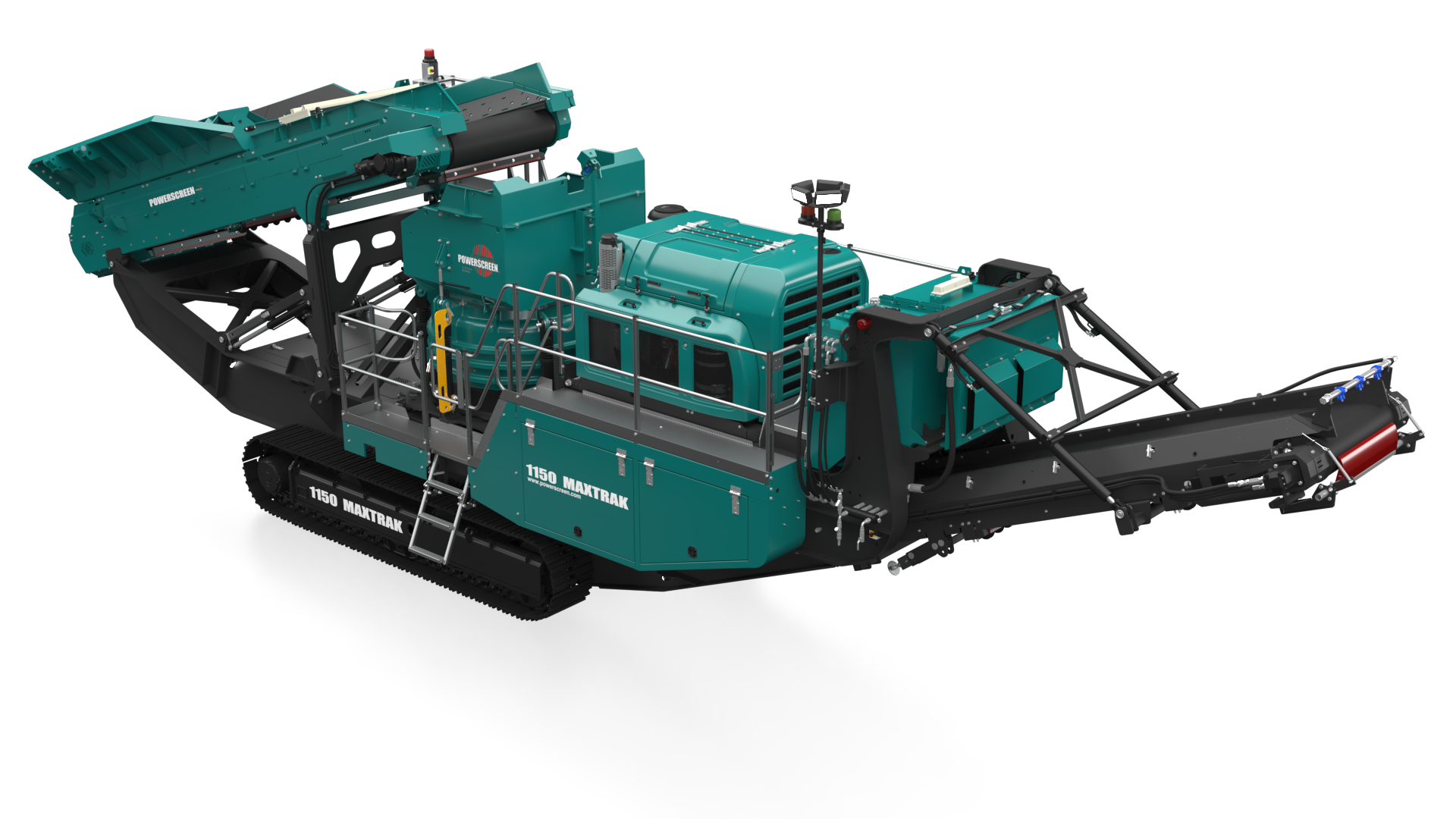

The Powerscreen ® 1150 Maxtrak is a high performance, medium sized track mobile cone crusher. At the heart of the Maxtrak is the Automax ® cone crusher with hydraulic setting, tramp release & unblocking system.

Its unique crushing action provides excellent capacity, high reduction & good product cubicity for the production of high quality aggregate & sub-base materials. A level probe over the feed ring regulates the feed belt to ensure the cone chamber is choke fed, essential for maximum reduction, manganese life & optimal product shape.

download brochure
Inquire Call us
1150 Maxtrak
1150 Maxtrak
1150 Maxtrak
1150 Maxtrak
1150 Maxtrak
1150 Maxtrak
1150 Maxtrak
1150 Maxtrak
Features & Benefits Options Specifications
  • Output potential of up to 300 tph / 330 US tph – depending on material type and crusher settings
  • Renowned Automax ® crusher technology
  • Accepts clean ‘all in feed’
  • Excellent product shape
  • High reduction ratio
  • Cone feed box level control to maintain choke feeding
  • Hydraulic crusher setting. Can be adjusted on the fly
  • Cone overload protection
  • Heavy duty chassis & track frame
  • Metal detector
  • Dust suppression system
  • Economical to operate with a highly fuel efficient direct drive system
  • Heavy duty fabricated chassis & track frame
  • Remote control via umbilical
  • Radio remote control as standard
  • Powerscreen Pulse telemetry as standard
  • Feed hopper extensions
  • Product conveyor dust covers
  • Product conveyor stockpile sensor
  • Control panel positive pressurisation
  • Camera over crusher
  • Hydraulic water pump
  • Lighting mast
  • Hot/cold climate oils
  • Feed height: 3.05m (10’)
  • Hopper capacity: Up to 6m³ (7.8 cu. yd.)
  • Crusher Type: 1150 Automax ® Crusher
  • Product Conveyor Discharge height: 3.3m (10’ 10”)
  • Tier 3: Caterpillar C-13 ACERT, 328 kW (440hp)
  • Tier 4: Scania DC13, 331 kW (450hp)
  • Fuel tank capacity: 1000 L (264 US Gal)
  • Total Weight Tier 3: 42,900kg (94,578lbs)
  • Total Weight Tier 4F: 43,000kg (94,799lbs)
