Crushing

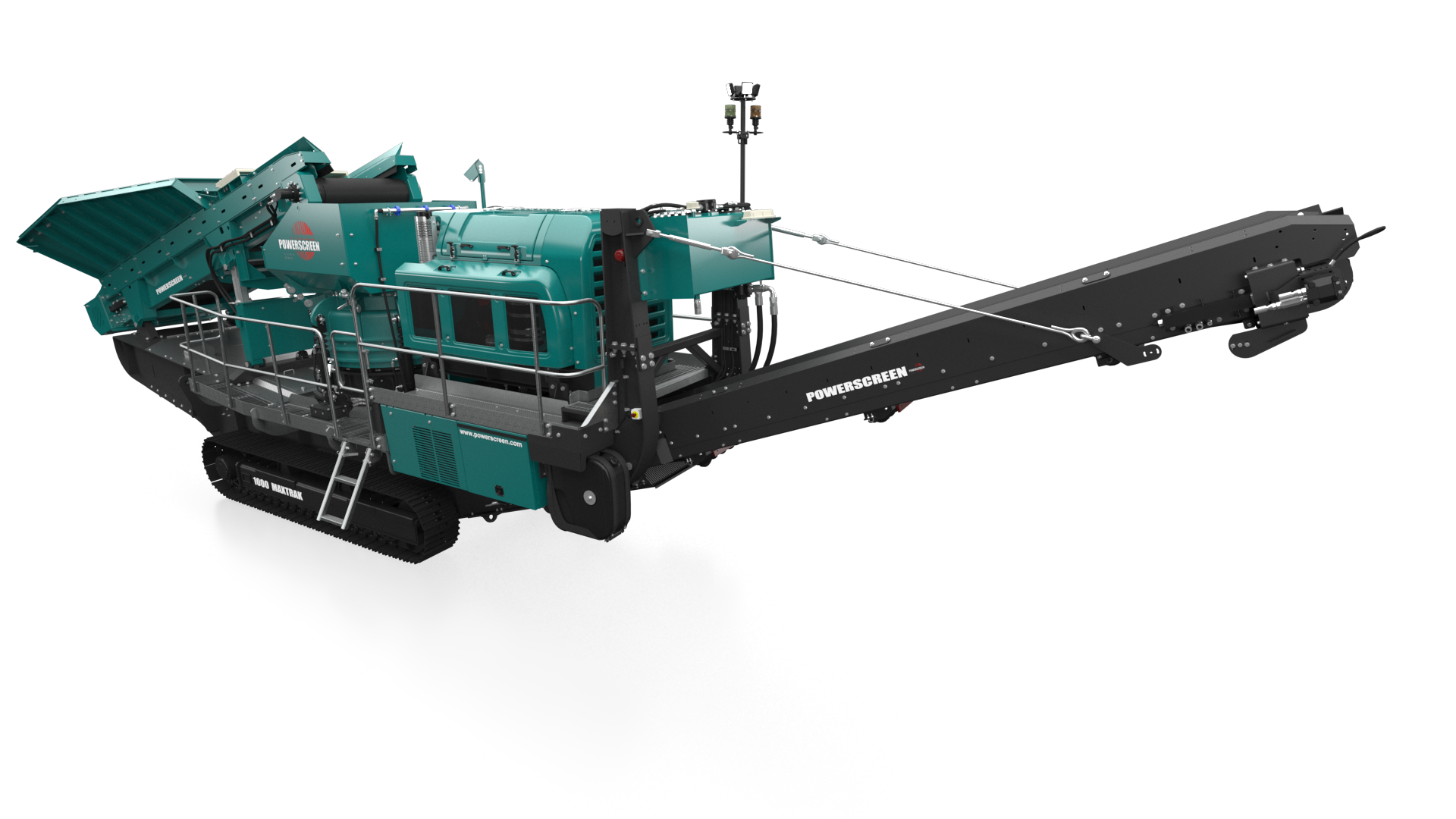

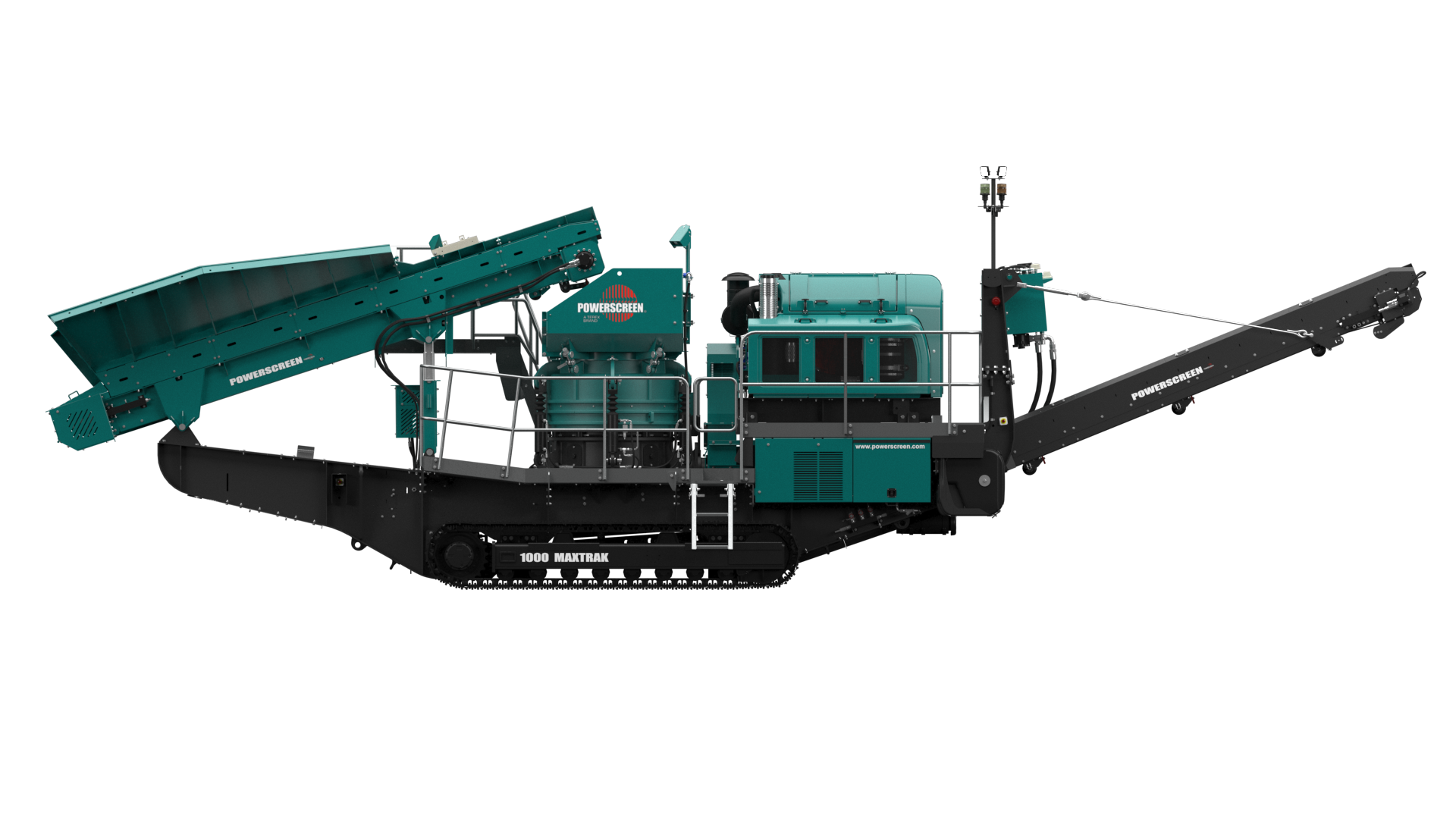

1000 Maxtrak

The high performance Powerscreen ® 1000 Maxtrak cone crusher has been designed for direct feed applications without pre-screening on clean rock. At the heart of the Maxtrak is the Automax ® cone crusher with hydraulic setting, tramp release & unblocking system.

Its unique crushing action provides excellent capacity, high reduction & good product cubicity for the production of high quality aggregate & sub-base materials. A level probe over the feed ring regulates the feed belt to ensure the Automax ® is choke fed, essential for maximum reduction, manganese life & optimal product shape.

download brochure
Inquire Call us
1000 Maxtrak
1000 Maxtrak
1000 Maxtrak
1000 Maxtrak
1000 Maxtrak
1000 Maxtrak
Features & Benefits Options Specifications
  • Output potential of up to 230 tph / 253 US tph depending on feed material & crusher settings • Renowned Automax ® crusher technology
  • Accepts clean ‘all in feed’
  • Excellent product shape
  • High reduction ratio
  • Cone feed box level control to maintain choke feeding
  • Hydraulic crusher setting
  • Cone overload protection
  • Heavy duty chassis & track frame
  • Metal detector
  • Dust suppression system
  • Economical to operate with a highly fuel efficient direct drive system
  • Heavy duty fabricated chassis & track frame
  • Remote control via umbilical
  • Radio remote control as standard
  • Powerscreen Pulse telemetry as standard
  • Control panel positive pressurisation
  • Hot/Cold climate oils
  • Electric water pump
  • Other options: automax Extra Coarse (XC) concave, automax Coarse (C) concave, autosand (AS) concave, short throw eccentric, feed hopper extensions plates (remove for transport), hot/cold climate oils, control panel positive pressurisation, camera & viewing screen, lighting mast, product conveyor belt weigher, electric water pump
  • Feed in height (rear): 2.8m (9’ 2’’)
  • Feed in height (rear with extensions): 3.25m (10’ 8’’)
  • Hopper capacity: Up to 4.4m³ (5.8 cu. yd.) gross depending on method of feed
  • Crusher Type: 1000 Automax Crusher
  • Product Conveyor Discharge height: 3.25m (10’ 8”)
  • Tier 3: Caterpillar C9.3 250kW (335hp)
  • Tier 4: Scania DC9 257 kW (350hp)
  • Total Weight Tier 3: 30,440kg (67,109lbs)
  • Total Weight  Tier 4F: 31,820kg (70,151lbs)
